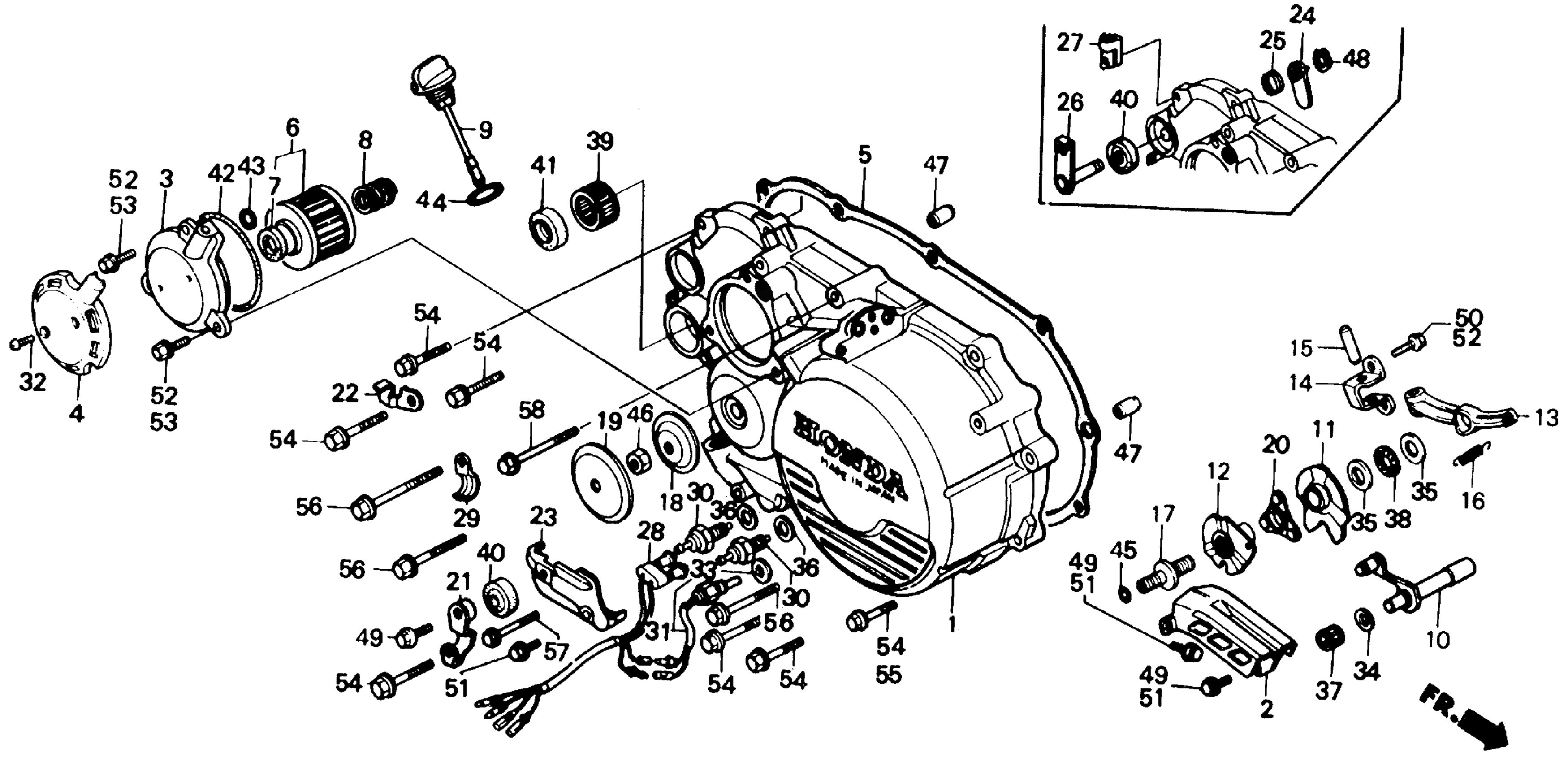

Honda TRX350DA (87) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-HK000001 TO JH3TE071-HK010305 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-HA7-770

Unavailable

2

GUARD, OIL HOSE (NOT AVAILABLE)

11332-HA7-670

Unavailable

3

COVER, OIL FILTER (NOT AVAILABLE)

11333-HA0-000

Unavailable

4

PROTECTOR, OIL FILTER COVER (NOT AVAILABLE)

11334-HA0-000

Unavailable

5

GASKET, R. CRANKCASE COVER This part replaces 11394-HA7-690.

11394-HC4-840

$29.65

5

GASKET, R. CRANKCASE COVER This part replaces 11394-HA8-000.

11394-HC4-840

$29.65

5

GASKET, R. CRANKCASE COVER This part replaces 11394-HA8-306.

11394-HC4-840

$29.65

5

GASKET, R. CRANKCASE COVER

11394-HC4-840

$29.65

6

ELEMENT, OIL FILTER This part replaces 15410-KF0-305.

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER

15410-KF0-315

$5.54

6

ELEMENT, OIL FILTER This part replaces 15412-KF0-010.

15410-KF0-315

$5.54

7

RUBBER, FILTER

15413-MC8-000

$3.35

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.24

9

DIPSTICK, OIL

15650-HA7-670

Unavailable

10

LEVER, CLUTCH

22810-HA7-770

Unavailable

11

PLATE, CLUTCH CAM

22821-HA7-670

Unavailable

12

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22830-HA7-670

Unavailable

13

ARM, CLUTCH

22835-HA0-000

Unavailable

14

STAY, CLUTCH ARM

22836-HA0-000

Unavailable

15

SHAFT, CLUTCH ARM

22837-HA0-000

Unavailable

16

SPRING, CLUTCH ARM (NOT AVAILABLE)

22839-HA0-000

Unavailable

17

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22841-HA0-000

Unavailable

18

RETAINER, CLUTCH ADJ. (NOT AVAILABLE)

22842-HA0-680

Unavailable

19

CAP, CLUTCH ADJUSTING (NOT AVAILABLE)

22850-HA0-680

Unavailable

20

RETAINER, BALL

22860-HA0-000

Unavailable

21

LEVER, REVERSE STOPPER (NOT AVAILABLE)

24865-HA7-670

Unavailable

22

HOLDER, REVERSE STOPPER WIRE (NOT AVAILABLE)

24871-HA7-670

Unavailable

23

COVER, REVERSE LEVER (NOT AVAILABLE)

24880-HA7-670

Unavailable

24

FOLLOWER, CAM

28271-427-000

Unavailable

25

SPRING, FOLLOWER (NOT AVAILABLE)

28274-HA5-000

Unavailable

26

SHAFT, FOLLOWER (NOT AVAILABLE)

28280-HA5-000

Unavailable

27

RECEIVER B, DECOMPRESSION (NOT AVAILABLE)

28287-HA5-000

Unavailable

28

SUB-WIRE, CHANGE SWITCH (NOT AVAILABLE) | Use up to Engine SN 8110631 This part replaces 32410-HA7-670.

32410-HA8-010

Unavailable

28

SUB-WIRE, CHANGE SWITCH (NOT AVAILABLE) | Use from Engine SN 8110632

32410-HA7-671

Unavailable

29

CLAMP, WIRE

32922-MB2-000

Unavailable

30

SWITCH ASSY., NEUTRAL (TOYO) | Use up to Engine SN 8110631 This part replaces 35600-HA0-000.

35600-HA0-003

$18.90

30

SWITCH ASSY., NEUTRAL (TOYO)

35600-HA0-003

$18.90

30

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-HA0-010.

35600-HA0-003

$18.90

31

SENSOR ASSY., THERMOSTAT OIL | Use up to Engine SN 8110631 This part replaces 37750-HA8-014.

37750-VM5-305

Unavailable

31

SENSOR ASSY., THERMOSTAT OIL (TOYO) | Use from Engine SN 8110632 This part replaces 37750-HA8-024.

37750-HC4-751

$62.59

31

SENSOR ASSY., THERMOSTAT OIL (TOYO) | Use from Engine SN 8110632 This part replaces 37750-HA8-034.

37750-HC4-751

$62.59

31

SENSOR ASSY., THERMOSTAT OIL (TOYO) | Use from Engine SN 8110632

37750-HC4-751

$62.59

32

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

33

WASHER, SEALING

90401-HA8-000

$3.81

34

WASHER (9MM)

90405-HA0-000

Unavailable

35

WASHER, THRUST (15MM)

90417-HA0-000

$3.67

36

WASHER, OIL BOLT

90545-300-000

$3.99

37

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$13.32

38

BEARING, THRUST NEEDLE (15MM) (NOT AVAILABLE)

91062-HA0-003

Unavailable

39

BEARING, NEEDLE (20X26X12) (NTN) This part replaces 91106-KF0-008.

91051-V19-003

$20.55

40

OIL SEAL (12X22X5)

91201-965-000

$4.06

41

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

42

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

43

O-RING (11X1.9) (NOK) This part replaces 91301-671-671.

91303-HA0-004

$2.13

43

O-RING (11X1.9) (ARAI)

91303-HA0-000

Unavailable

43

O-RING (11X1.9) (NOK) This part replaces 91303-HA0-003.

91303-HA0-004

$2.13

43

O-RING (11X1.9) (NOK)

91303-HA0-004

$2.13

44

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

45

O-RING (8.2X1.5)

91308-MC7-000

$2.31

46

NUT, HEX. (8MM)

94031-08000

$1.49

47

PIN, DOWEL (8X14)

94301-08140

$2.25

48

CIRCLIP, OUTER (10MM)

94510-10000

$1.49

49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

50

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

51

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

53

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

54

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

56

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

57

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

58

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
