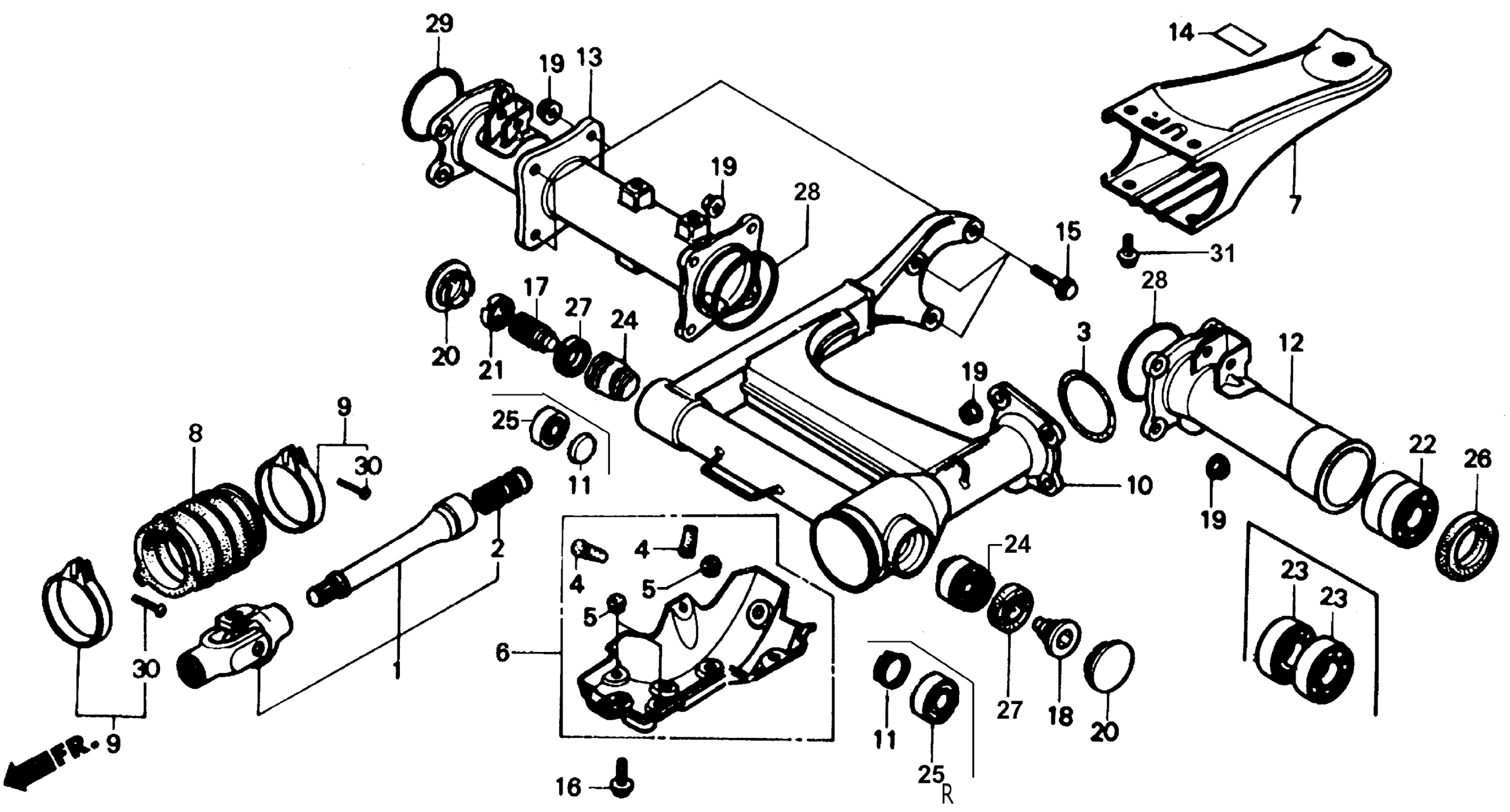

Honda TRX350DA (87) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-HK000001 TO JH3TE071-HK010305 REAR SWINGARM Diagram

#

Description
Price

1

JOINT, RR. YOKE (NOT AVAILABLE)

40200-HA7-771

Unavailable

2

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

3

O-RING (62.4X2.5) (ARAI) This part replaces 41123-516-000.

91304-MF5-003

$6.31

4

RUBBER A, STOPPER

50352-428-000

$2.75

5

RUBBER B, STOPPER

50354-428-000

$2.75

6

PLATE, RR. SKID

50355-HA7-670

Unavailable

7

HITCH, TRAILER (NOT AVAILABLE)

50810-HA7-670

Unavailable

8

BOOT, RR. JOINT (NOT AVAILABLE)

52101-HA7-670

Unavailable

9

BAND ASSY., BOOT JOINT (82MM) (NOT AVAILABLE)

52109-HA7-670

Unavailable

10

SWINGARM SET, RR. | Use up to Frame SN HM004807 This part replaces 52110-HA7-770.

52200-HA7-305

Unavailable

10

SWINGARM SET, RR. | Use from Frame SN HK000001 to HK007030 This part replaces 52110-HA7-770.

52200-HA7-305

Unavailable

10

SWINGARM SET, RR. | Use from Frame SN HK007031 This part replaces 52110-HA7-771.

52200-HA7-305

Unavailable

12

PIPE, L. HOUSING (NOT AVAILABLE)

52120-HA7-770

Unavailable

13

PIPE, RR. AXLE (NOT AVAILABLE) | Use up to Frame SN HM004807

52210-HA7-670

Unavailable

13

PIPE, RR. AXLE (NOT AVAILABLE) | Use from Frame SN HK000001 to HK007030

52210-HA7-670

Unavailable

13

PIPE, RR. AXLE (NOT AVAILABLE) | Use from Frame SN HK007031

52210-HA7-671

Unavailable

14

LABEL, TRAILER HITCH (NOT AVAILABLE)

87508-HA0-770

Unavailable

15

BOLT, SPECIAL (10MM) (NOT AVAILABLE)

90109-HA0-681

Unavailable

16

BOLT, FLANGE (8X10)

90116-965-000

Unavailable

17

BOLT, R. SWINGARM PIVOT

90121-HA0-000

Unavailable

18

BOLT, L. SWINGARM PIVOT

90122-MB0-000

Unavailable

19

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

20

CAP, LOCK NUT

90312-HA0-000

$11.72

21

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

22

BEARING, RADIAL BALL (32X58X13X2)

91054-HA0-771

$56.86

24

BEARING, TAPER ROLLER (17X40X13.25) (KOYO) This part replaces 91066-HA7-671.

91066-HA7-672

$62.07

24

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

26

OIL SEAL (42X58X10) (ARAI)

91255-HA0-681

$20.36

28

O-RING (71.4X2.6) (ARAI) (NOT AVAILABLE)

91310-HA7-671

Unavailable

28

O-RING (71.4X2.6) (ARAI) (NOT AVAILABLE) This part replaces 91310-HA7-672.

91310-HA7-671

Unavailable

29

O-RING (56X2.6) (ARAI) (NOT AVAILABLE)

91320-HA7-671

Unavailable

29

O-RING (56X2.6) (ARAI) (NOT AVAILABLE) This part replaces 91320-HA7-672.

91320-HA7-671

Unavailable

30

SCREW, PAN (5X28)

93500-05028-0A

$1.49

31

BOLT, FLANGE (10X16) This part replaces 95800-10016-08.

95701-10016-08

$2.25

31

BOLT, FLANGE (10X16)

95701-10016-08

$2.25

31

BOLT, FLANGE (10X16) This part replaces 95801-10016-08.

95701-10016-08

$2.25
