- TRX350DA (87) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-HK000001 TO JH3TE071-HK010305
350D FRONT FENDER 87-89

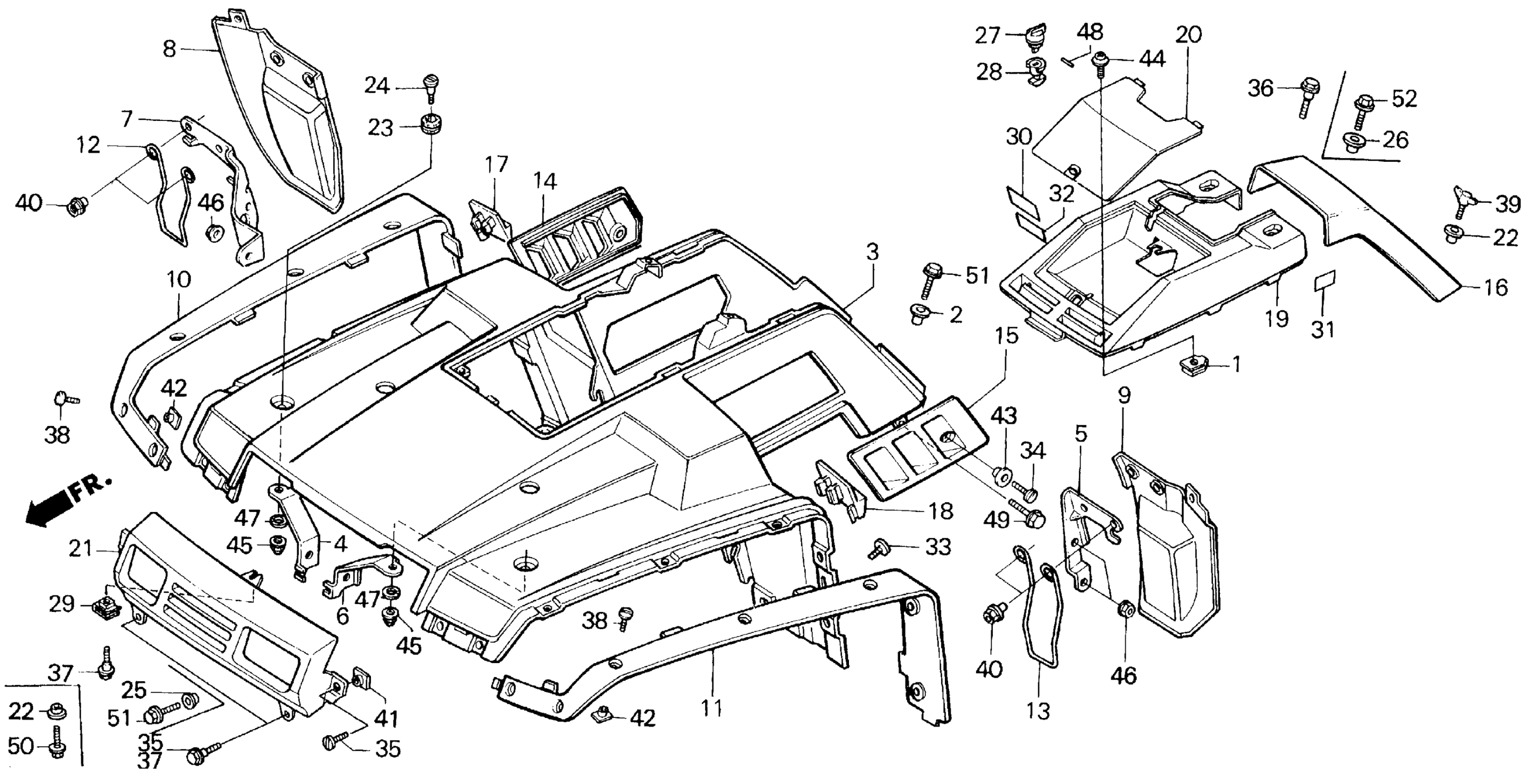

Honda TRX350DA (87) FOURTRAX FOREMAN 4X4, JPN, VIN# JH3TE071-HK000001 TO JH3TE071-HK010305 350D FRONT FENDER 87-89 Diagram
#
1
NUT, AIR CLEANER SETTING
17254-428-000
Unavailable
3
FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE) | Use up to Frame SN HM004807 This part replaces 61100-HA7-751ZA.
61100-HA7-753ZA
Unavailable
3
FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE) | Use up to Frame SN HM004807 This part replaces 61100-HA7-752ZA.
61100-HA7-753ZA
Unavailable
3
FENDER, FR. *PB173* This part replaces 61100-HA7-751ZB.
61100-HA7-753ZB
Unavailable
3
FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE)
61100-HA7-753ZA
Unavailable
4
STAY A, R. FR. FENDER
61111-HA7-670
Unavailable
6
STAY A, L. FR. FENDER (NOT AVAILABLE)
61161-HA7-670
Unavailable
7
STAY, R. FR. FENDER (LOWER) (NOT AVAILABLE)
61171-HA7-770
Unavailable
8
SPLASH GUARD, R. FR. FOOT (NOT AVAILABLE)
66111-HA7-730
Unavailable
9
SPLASH GUARD, L. FR. FOOT (NOT AVAILABLE)
66112-HA7-730
Unavailable
10
SPLASH GUARD, R. FR. SIDE
66113-HA7-750
Unavailable
11
SPLASH GUARD, L. FR. SIDE
66114-HA7-750
Unavailable
12
SUPPORT, R. FR. SPLASH GUARD (NOT AVAILABLE)
66117-HA7-670
Unavailable
13
SUPPORT, L. FR. SPLASH GUARD (NOT AVAILABLE)
66118-HA7-670
Unavailable
14
LOUVER, R. SIDE *R109* (PASSION RED) (NOT AVAILABLE) | Use from Frame SN HK003440
66121-HA7-671ZA
Unavailable
14
LOUVER, R. SIDE *PB173* (FOREMAN BLUE) (NOT AVAILABLE) | Use from Frame SN HK003440
66121-HA7-671ZB
Unavailable
14
LOUVER, R. SIDE *R109* (PASSION RED) (NOT AVAILABLE) | Use up to Frame SN HM004807 This part replaces 66121-HA7-750ZA.
66121-HA7-671ZA
Unavailable
14
LOUVER, R. SIDE *PB173* (FOREMAN BLUE) (NOT AVAILABLE) | Use up to Frame SN HM004807 This part replaces 66121-HA7-750ZB.
66121-HA7-671ZB
Unavailable
15
LOUVER, L. SIDE *R109* (PASSION RED) (NOT AVAILABLE) | Use from Frame SN HK003440
66122-HA7-671ZA
Unavailable
15
LOUVER, L. SIDE *PB173* (FOREMAN BLUE) (NOT AVAILABLE) | Use from Frame SN HK003440
66122-HA7-671ZB
Unavailable
15
LOUVER, L. SIDE *R109* (PASSION RED) (NOT AVAILABLE) | Use up to Frame SN HM004807 This part replaces 66122-HA7-750ZA.
66122-HA7-671ZA
Unavailable
15
LOUVER, L. SIDE *PB173* (FOREMAN BLUE) (NOT AVAILABLE) | Use up to Frame SN HM004807 This part replaces 66122-HA7-750ZB.
66122-HA7-671ZB
Unavailable
16
COVER, AIR *NH188* This part replaces 66123-HA7-750.
66123-HA7-650ZC
Unavailable
17
RUBBER, R. AIR IN. (NOT AVAILABLE)
66135-HA7-670
Unavailable
18
RUBBER, L. AIR IN. (NOT AVAILABLE)
66136-HA7-670
Unavailable
19
CVR (UPPER) *NH188* This part replaces 66200-HA7-752ZA.
66200-HA7-753ZA
Unavailable
20
LID, COVER *NH188* This part replaces 66201-HA7-750ZA.
66201-HA7-751ZC
Unavailable
21
GRILLE, FR. *PB173* (FOREMAN BLUE)
66300-HA7-751ZB
Unavailable
21
GRILLE, FR. *R109* (PASSION RED) (NOT AVAILABLE)
66300-HA7-751ZA
Unavailable
22
COLLAR, FENDER SETTING
80112-VM0-000
Unavailable
24
BOLT, FENDER SETTING
81313-HA7-670
Unavailable
25
COLLAR, MAGNETIC SWITCH (NOT AVAILABLE)
81316-HA7-670
Unavailable
27
BODY, KNOB (NOT AVAILABLE)
83507-HA8-000
Unavailable
28
STOPPER, KEY BODY
83508-965-000
Unavailable
30
LABEL, USE CAUTION (NOT AVAILABLE)
87504-HB3-770
Unavailable
31
LABEL, HELMET HOLDER
87511-HA7-670
Unavailable
32
LABEL, BRAKE CAUTION (NOT AVAILABLE)
87543-HA7-670
Unavailable
33
SCREW, SPLASH GUARD (NOT AVAILABLE)
90102-HA7-672
Unavailable
34
SCREW,FRONT COVER This part replaces 90102-VM4-000.
64321-GBG-760
Unavailable
34
SCREW,FRONT COVER This part replaces 90102-VM4-003.
64321-GBG-760
Unavailable
40
NUT, COLLAR (NOT AVAILABLE)
90201-HA7-670
Unavailable
41
NUT, SIDE PROTECTOR (NOT AVAILABLE)
90302-HA0-000
Unavailable
