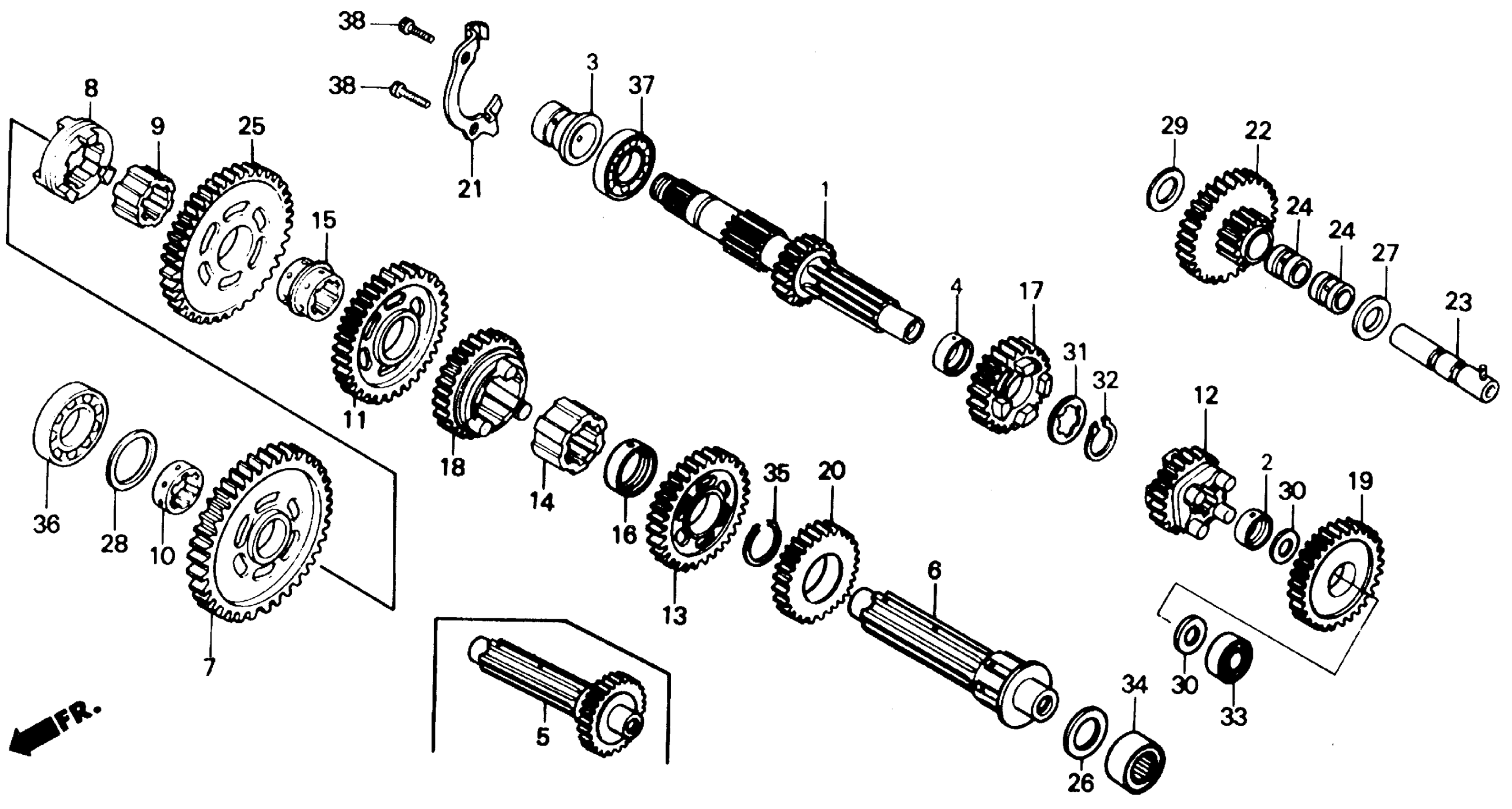

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23211-HA7-670

Unavailable

2

BUSH (17MM)

23212-HA0-000

Unavailable

3

BUSH (22MM)

23213-HA0-000

Unavailable

4

BUSH A (22MM)

23214-HA0-000

$17.03

6

COUNTERSHAFT (NOT AVAILABLE)

23220-HA7-770

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HA0-000.

23411-HN0-670

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HA0-770.

23411-HN0-670

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T) This part replaces 23411-HC4-000.

23411-HN0-670

Unavailable

7

GEAR, COUNTERSHAFT FIRST (49T)

23411-HN0-670

Unavailable

8

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HA7-670

Unavailable

9

COLLAR, SPLINE

23413-HA7-670

Unavailable

10

BUSH, SPLINE (25MM)

23414-HA0-000

$22.78

11

GEAR, COUNTERSHAFT SECOND (43T) (NOT AVAILABLE)

23431-HA7-770

Unavailable

12

GEAR, MAINSHAFT THIRD (23T)

23441-HA0-000

Unavailable

13

GEAR, COUNTERSHAFT THIRD (37T) (NOT AVAILABLE)

23451-HA7-770

Unavailable

14

COLLAR, SPLINE

23453-HA0-000

Unavailable

15

BUSH A, SPLINE (25MM)

23454-HA0-000

$34.18

16

BUSH, COUNTERSHAFT THIRD

23455-HA7-670

Unavailable

17

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23461-HA7-770

Unavailable

18

GEAR, COUNTERSHAFT FOURTH (33T)

23471-HA0-000

Unavailable

19

GEAR, MAINSHAFT FIFTH (32T)

23481-HA7-770

Unavailable

20

GEAR, FINAL DRIVE (29T)

23501-HA7-770

Unavailable

21

PLATE, BEARING SETTING

23521-HA0-000

$14.85

22

GEAR, REVERSE IDLE (16T/34T)

23720-HA7-670

Unavailable

23

SHAFT, REVERSE IDLE (NOT AVAILABLE) This part replaces 23730-HA7-770.

23730-HA7-771

Unavailable

24

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

25

GEAR, COUNTER REVERSE (27T)

23751-HA7-770

Unavailable

26

WASHER, THRUST (22MM)

90401-HA7-670

Unavailable

27

WASHER, THRUST (14MM)

90402-HA0-000

$3.76

28

WASHER, THRUST (20MM)

90403-HA7-670

$6.92

29

WASHER, PLAIN (14MM)

90412-HA0-000

$9.34

30

WASHER, THRUST (17MM)

90452-178-000

$4.17

31

WASHER, SPLINE (22MM)

90464-KE8-000

$4.20

32

CIRCLIP (22MM)

90601-329-000

$2.67

33

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$40.44

33

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$40.44

34

BEARING, NEEDLE (22X34X20) (KOYO) (NOT AVAILABLE) This part replaces 91020-HA7-771.

91020-HA7-772

Unavailable

34

BEARING, NEEDLE (22X34X20) (KOYO) (NOT AVAILABLE)

91020-HA7-772

Unavailable

35

CIRCLIP (OUTER) (35MM)

94510-35000

$2.00

36

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

37

BEARING, RADIAL BALL (6203U)

96140-62030-00

$18.59

38

BOLT, SOCKET (6X16)

96600-06016-10

$4.07

38

BOLT, SOCKET (6X16) This part replaces 96700-06016-10.

96600-06016-10

$4.07
