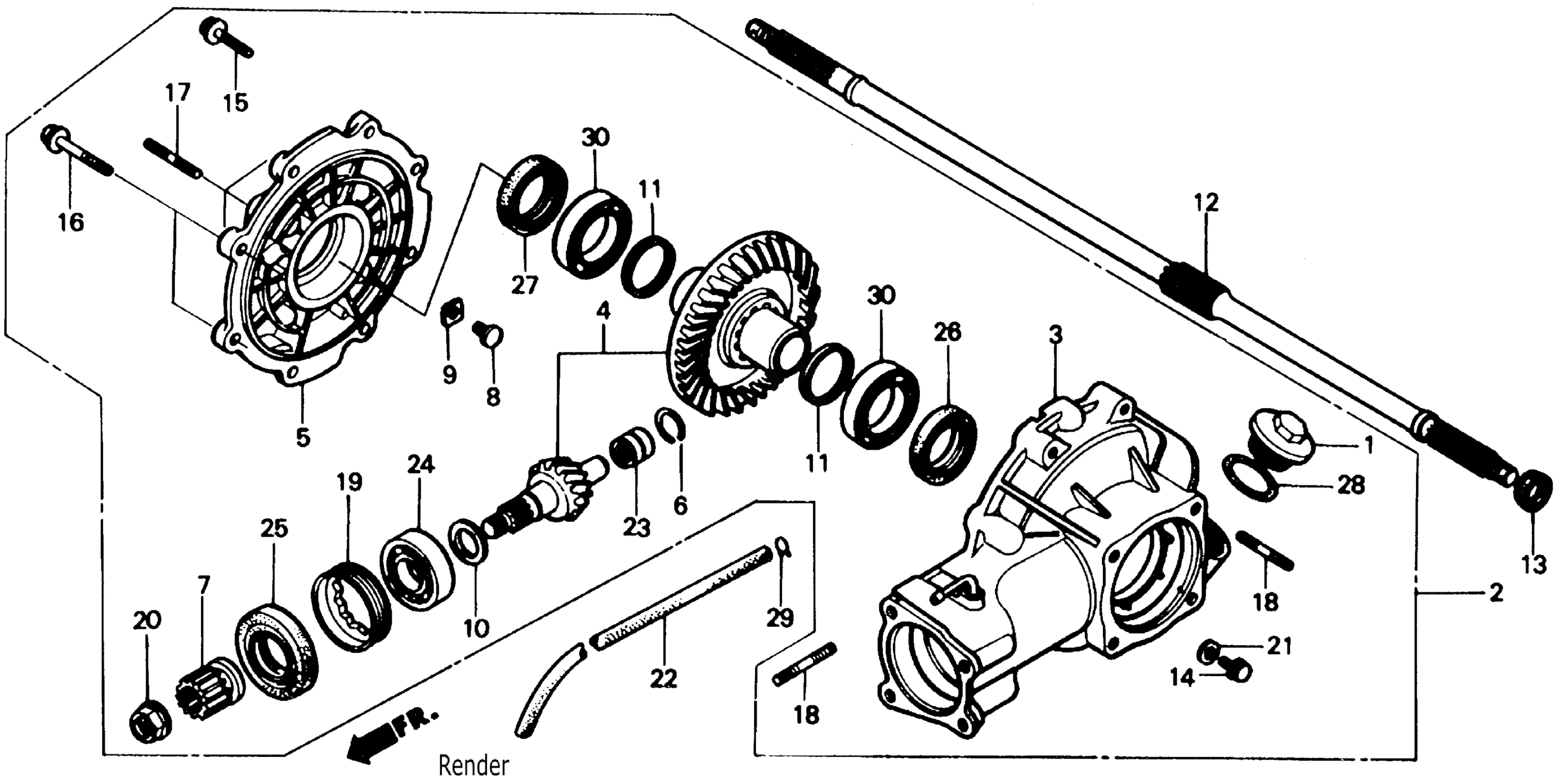

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 REAR FINAL GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., RR. FINAL (NOT AVAILABLE)

41300-HA7-770

Unavailable

3

CASE, FINAL GEAR (NOT AVAILABLE)

41301-HA7-670

Unavailable

4

GEAR SET, FINAL (NOT AVAILABLE)

41310-HA0-300

Unavailable

5

COVER, RR. FINAL GEAR CASE (NOT AVAILABLE)

41321-HA7-670

Unavailable

6

RING, STOPPER

41405-HA7-670

$2.97

7

JOINT, PINION

41411-HA0-000

Unavailable

8

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

9

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

9

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

10

SHIM A, PINION GEAR (1.82)

41451-HA0-000

$8.03

10

SHIM B, PINION GEAR (1.88)

41452-HA0-000

Unavailable

10

SHIM C, PINION GEAR (1.94)

41453-HA0-000

$6.70

10

SHIM D, PINION GEAR (2.00)

41454-HA0-000

$8.03

10

SHIM E, PINION GEAR (2.06)

41455-HA0-000

Unavailable

10

SHIM F, PINION GEAR (2.12)

41456-HA0-000

$6.26

10

SHIM G, PINION GEAR (2.18)

41457-HA0-000

Unavailable

11

SPACER A, RING GEAR (1.82)

41540-HA0-000

$11.84

11

SPACER B, RING GEAR (1.88)

41541-HA0-000

$12.56

11

SPACER C, RING GEAR (1.94)

41542-HA0-000

$12.56

11

SPACER D, RING GEAR (2.00)

41543-HA0-000

$11.84

11

SPACER E, RING GEAR (2.06)

41544-HA0-000

$12.56

11

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.84

11

SPACER G, RING GEAR (2.18)

41546-HA0-000

$11.84

11

SPACER H, RING GEAR (2.24)

41547-HA0-000

$11.84

11

SPACER I, RING GEAR (2.30)

41548-HA0-000

$11.84

12

SHAFT, RR. AXLE (NOT AVAILABLE)

42311-HA7-670

Unavailable

13

STOPPER, L. BEARING

52112-HA0-000

$16.79

14

BOLT, SEALING (8MM)

90109-371-000

$2.58

15

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

16

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

17

BOLT, STUD (10X22)

90135-HA7-770

$8.63

18

BOLT, STUD (10X25)

90137-HA7-770

Unavailable

19

NUT, LOCK (60MM)

90244-HA0-000

$37.87

20

NUT, HEX. (16MM)

90381-HA0-000

$7.88

21

GASKET (8MM)

90471-580-000

$2.92

22

TUBE, RR. FINAL | Use up to Frame SN HM106594

91001-HA7-670

Unavailable

22

TUBE, RR. FINAL (NOT AVAILABLE) | Use from Frame SN HM106595 to HM107082

91001-HA7-671

Unavailable

22

TUBE, RR. FINAL | Use from Frame SN HK100001

91001-HA7-672

Unavailable

23

BEARING, NEEDLE (14X24.5X15) (NTN) This part replaces 91061-HA7-671.

91061-HC4-003

$42.85

23

BEARING, NEEDLE (14X24.5X15) (NTN) This part replaces 91061-HA7-672.

91061-HC4-003

$42.85

23

BEARING, NEEDLE (14X24.5X15) (NTN)

91061-HC4-003

$42.85

24

BEARING, RADIAL BALL (22X56X16)

91061-ME4-004

Unavailable

25

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-003.

91251-HC5-005

$16.83

25

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-013.

91251-HC5-005

$16.83

25

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-014.

91251-HC5-005

$16.83

25

OIL SEAL (38X64X11) (KOYO)

91251-HC5-005

$16.83

26

OIL SEAL (35X49X6) (ARAI)

91252-HA0-003

$15.66

26

OIL SEAL (35X49X6) (NOK)

91252-HA0-004

$13.41

27

OIL SEAL (35X54X6) (NOK) This part replaces 91253-HA0-003.

91253-HA0-004

Unavailable

27

OIL SEAL (35X54X6) (NOK)

91253-HA0-004

Unavailable

28

O-RING (30.8MM)

91302-001-020

$3.75

29

CLIP, TUBE (B7)

95002-02070

$1.80

30

BEARING, RADIAL BALL (6007)

96100-60073-00

$25.05
