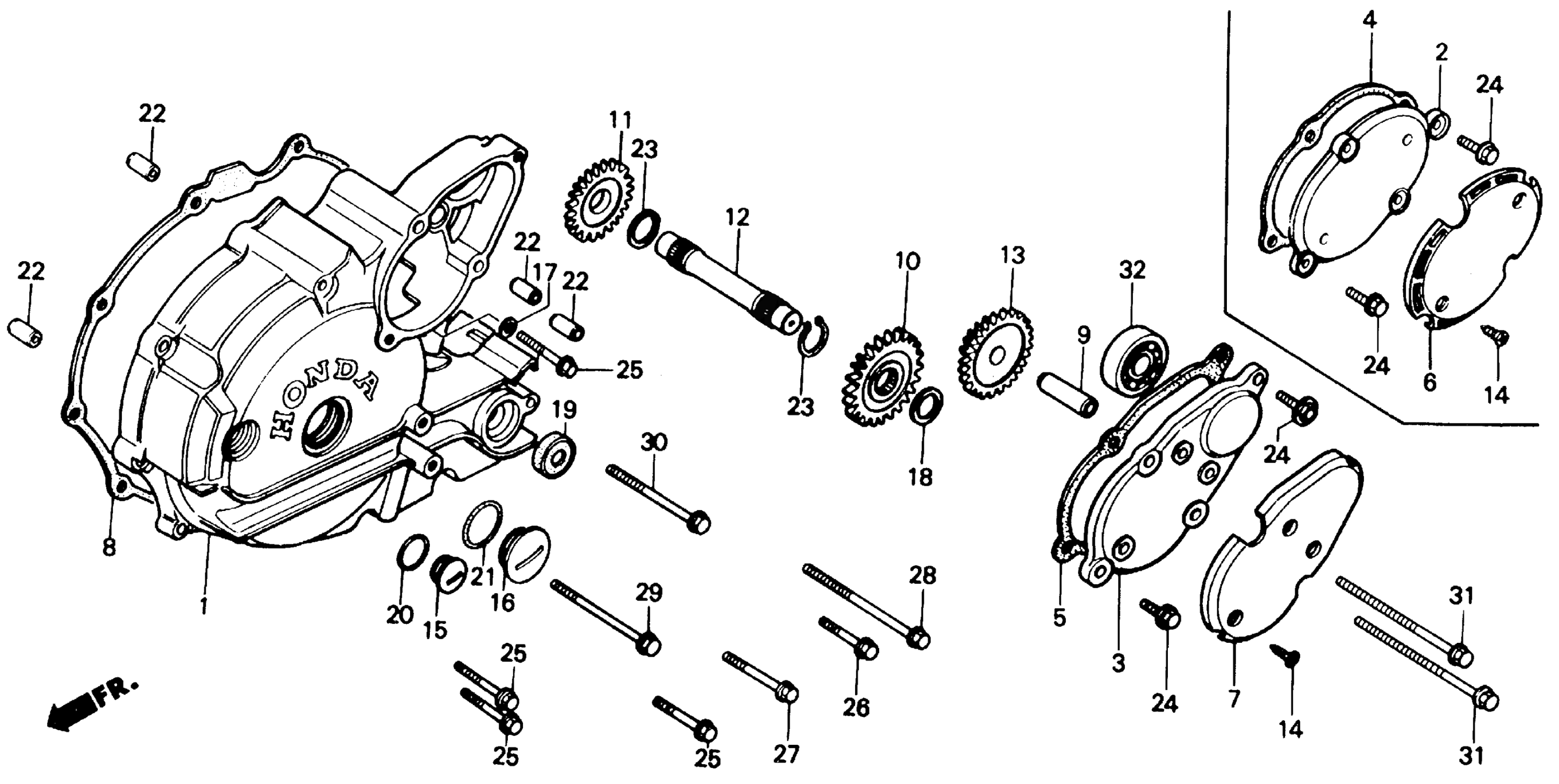

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 8108622

11340-HA7-750

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use up to Engine SN 8108621

11340-HA7-770

Unavailable

3

COVER, STARTING GEAR (NOT AVAILABLE)

11355-HA0-770

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA0-307.

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA0-770.

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA7-690.

11356-HA7-P00

Unavailable

5

GASKET, STARTING GEAR COVER This part replaces 11356-HA7-921.

11356-HA7-P00

Unavailable

7

PROTECTOR, STARTING GEAR COVER

11357-HA0-770

Unavailable

8

GASKET, L. CRANKCASE COVER This part replaces 11395-HA7-306.

11395-HA7-920

$14.77

8

GASKET, L. CRANKCASE COVER This part replaces 11395-HA7-670.

11395-HA7-920

$14.77

8

GASKET, L. CRANKCASE COVER This part replaces 11395-HA7-690.

11395-HA7-920

$14.77

8

GASKET, L. CRANKCASE COVER

11395-HA7-920

$14.77

9

SHAFT A, STARTER REDUCTION

28133-HA0-770

$11.95

10

GEAR C, STARTER REDUCTION (25T)

28131-HA0-770

Unavailable

11

GEAR D, STARTER REDUCTION (21T)

28132-HA7-770

Unavailable

12

SHAFT, STARTER REDUCTION (NOT AVAILABLE)

28135-HA7-770

Unavailable

13

GEAR, STARTER REDUCTION (43T/18T)

28140-HA0-770

Unavailable

14

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

15

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

15

CAP, ALTERNATOR

90084-471-000

Unavailable

16

CAP (30MM) This part replaces 90087-428-000.

90087-KF9-900

Unavailable

17

WASHER, SEALING (6MM)

90441-706-000

$1.49

18

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

19

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$6.45

19

OIL SEAL (13X28X7) (NOK)

91201-HA0-004

Unavailable

19

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$6.45

20

O-RING (13.8X2.5)

91303-377-000

$3.42

21

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

24

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

25

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

26

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

27

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

28

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

29

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

30

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

31

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

32

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
