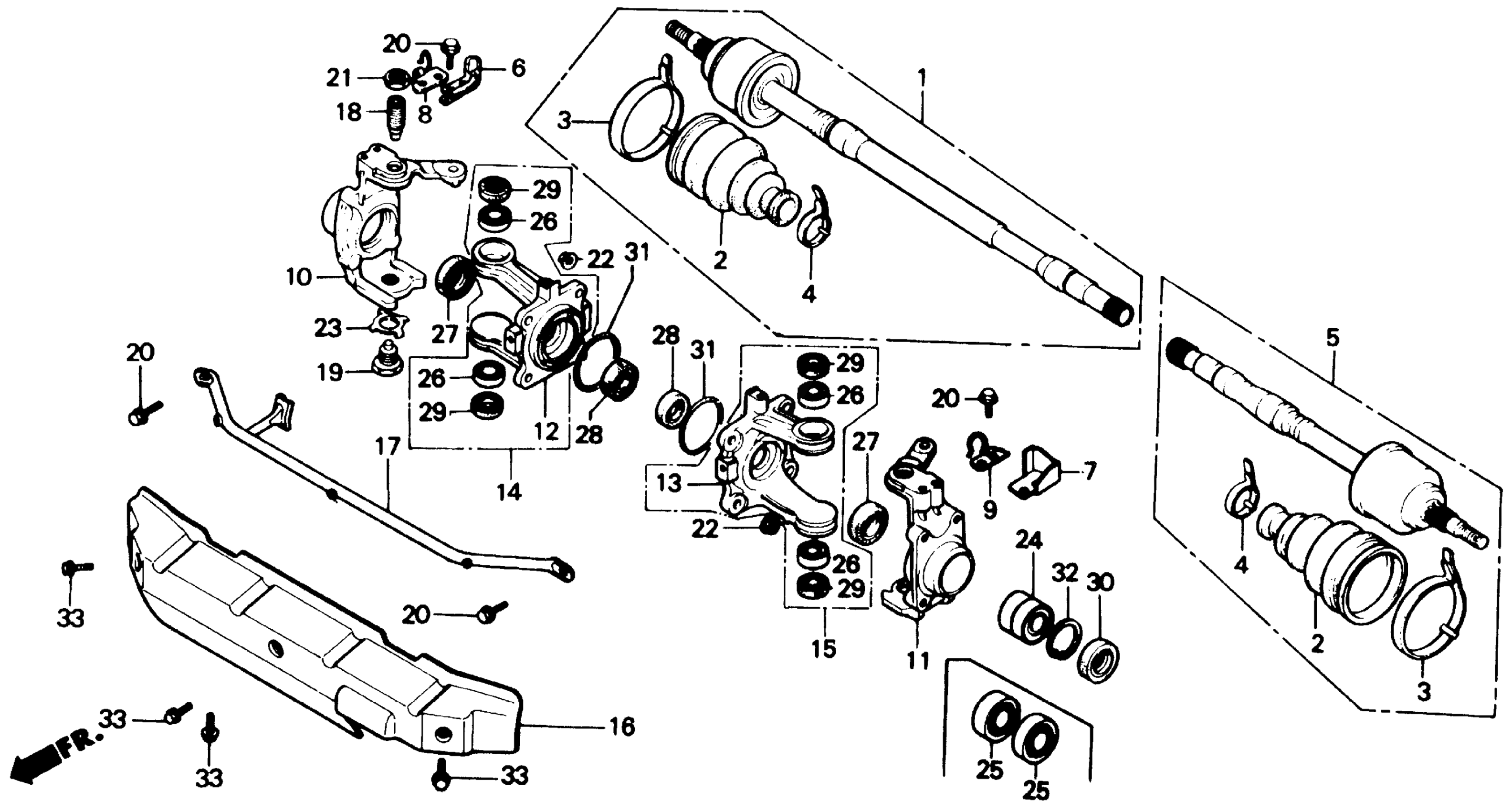

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 KNUCKLE Diagram

#

Description
Price

1

SHAFT ASSY., R. DRIVE

42200-HA7-771

Unavailable

2

BOOT

42203-HA7-771

Unavailable

3

BAND A

42204-HA7-771

Unavailable

4

BAND B (NOT AVAILABLE)

42205-HA7-771

$8.75

5

SHAFT ASSY., L. DRIVE (NOT AVAILABLE)

42300-HA7-771

Unavailable

6

GUARD, R. BRAKE HOSE (NOT AVAILABLE)

51206-HA7-670

Unavailable

7

GUARD, L. BRAKE HOSE

51207-HA7-670

Unavailable

8

BRACKET, R. HOSE CLIP (NOT AVAILABLE)

51208-HA7-670

Unavailable

9

BRACKET, L. HOSE CLIP (NOT AVAILABLE)

51209-HA7-670

Unavailable

10

KNUCKLE, R.

51210-HA7-770

Unavailable

11

KNUCKLE, L.

51220-HA7-770

Unavailable

14

HOLDER ASSY., R. KNUCKLE (NOT AVAILABLE)

51340-HA7-305

Unavailable

15

HOLDER ASSY., L. KNUCKLE (NOT AVAILABLE)

51350-HA7-305

Unavailable

16

PLATE, FR. GUARD (NOT AVAILABLE)

51360-HA7-670

Unavailable

17

PIPE, FR. GUARD (NOT AVAILABLE)

51370-HA7-770

Unavailable

18

BOLT A, PIVOT

90111-HA7-670

Unavailable

19

BOLT B, KNUCKLE PIVOT (NOT AVAILABLE)

90113-HA7-770

Unavailable

20

BOLT, FLANGE (8X18)

90117-HA7-670

$1.67

21

NUT, LOCK (20MM)

90301-HA7-670

Unavailable

22

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

23

WASHER, TONGUED (20MM) (NOT AVAILABLE)

90534-HA7-770

Unavailable

25

BEARING, RADIAL BALL (30X54X12)

91051-HA7-771

$29.52

26

BEARING, TAPER ROLLER (10X32X10)

91055-HA7-670

$17.96

27

DUST SEAL (40X58X7) This part replaces 91209-HA7-771.

91209-HN2-003

$12.18

27

DUST SEAL (40X58X7) This part replaces 91209-HA7-772.

91209-HN2-003

$12.18

27

DUST SEAL (40X58X7) This part replaces 91209-HA7-773.

91209-HN2-003

$12.18

27

DUST SEAL (40X58X7)

91209-HN2-003

$12.18

28

DUST SEAL (24X47X15)

91250-HA7-671

Unavailable

28

DUST SEAL (24X47X15) This part replaces 91250-HA7-672.

91250-HA7-671

Unavailable

29

DUST SEAL (18X34X6) (ARAI)

91254-HA7-671

$9.68

30

DUST SEAL (42X54X7) (ARAI)

91256-HA7-771

$17.43

31

O-RING (71.9X3.1) (NOT AVAILABLE) This part replaces 91264-HA7-671.

91264-HA7-672

Unavailable

31

O-RING (71.9X3.1) (NOT AVAILABLE)

91264-HA7-672

Unavailable

32

CIRCLIP, INNER (55MM)

94520-55000

$2.92

33

BOLT, FLANGE (8X16) This part replaces 95700-08016-07.

95701-08016-07

$1.80

33

BOLT, FLANGE (8X16)

95701-08016-07

$1.80
