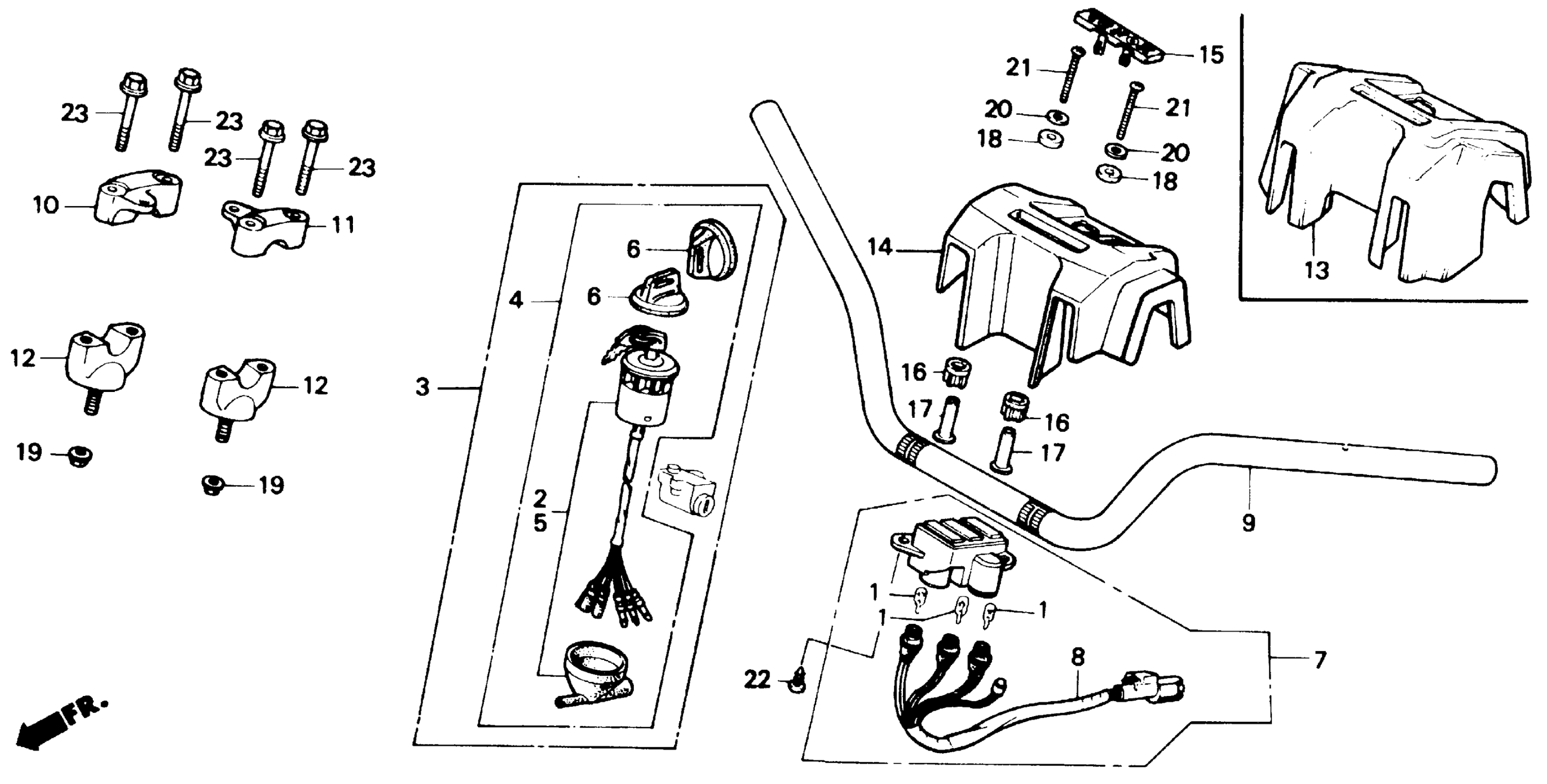

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 HANDLEBAR Diagram

#

Description
Price

1

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

4

SWITCH ASSY., COMBINATION | Use up to Frame SN HM107082 This part replaces 35010-HA7-770.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use from Frame SN HK100001 to HK103368 This part replaces 35010-HA7-770.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use up to Frame SN HM107082 This part replaces 35010-HA7-771.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use from Frame SN HK100001 This part replaces 35010-HA7-771.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use up to Frame SN HM107082 This part replaces 35010-HA7-772.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use from Frame SN HK100001 This part replaces 35010-HA7-772.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use up to Frame SN HM107082 This part replaces 35010-HA7-773.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use from Frame SN HK100001 This part replaces 35010-HA7-773.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use up to Frame SN HM107082 This part replaces 35010-HA7-774.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use from Frame SN HK100001 This part replaces 35010-HA7-774.

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use up to Frame SN HM107082

35100-HA7-675

$72.98

4

SWITCH ASSY., COMBINATION | Use from Frame SN HK100001

35100-HA7-675

$72.98

6

CAP, COMBINATION SWITCH KEY

35113-VM5-003

Unavailable

7

INDICATOR ASSY., NEUTRAL & REVERSE TEMPERATURE (NOT AVAILABLE)

38400-HA7-671

Unavailable

8

WIRE (NOT AVAILABLE)

38402-HA7-671

Unavailable

9

HANDLEBAR (NOT AVAILABLE) This part replaces 53100-HA7-670.

53100-HA7-650

Unavailable

10

HOLDER, R. HANDLEBAR (UPPER) (NOT AVAILABLE)

53111-958-000

Unavailable

11

HOLDER, L. HANDLEBAR (UPPER) (NOT AVAILABLE)

53121-958-000

Unavailable

12

HOLDER, HANDLE (LOWER) This part replaces 53130-HA7-670.

53130-HB9-000

Unavailable

13

COVER, HANDLE *NH1* This part replaces 53204-HA7-670.

53204-HA7-671ZA

Unavailable

15

CAP, HANDLE COVER *NHA85* (TYPE2) (BLACK) This part replaces 53206-HA0-000.

53206-HM5-730ZA

Unavailable

15

CAP, HANDLE COVER *NHA85* (TYPE2) (BLACK) This part replaces 53206-HA0-830ZD.

53206-HM5-730ZA

Unavailable

15

CAP, HANDLE COVER *NHA85* (TYPE2) (BLACK)

53206-HM5-730ZA

Unavailable

16

RUBBER, HANDLE COVER MOUNTING (NOT AVAILABLE)

53208-HA0-000

Unavailable

17

COLLAR, HANDLE COVER MOUNTING

53209-HA0-000

Unavailable

18

RUBBER, HANDLE COVER (UPPER)

53210-HA0-000

$2.64

19

NUT, AXLE (10MM)

90304-GA6-003

$2.89

20

WASHER, PLAIN (6MM)

90434-SA0-000

$2.07

21

SCREW, PAN (6X40)

93500-06040-0A

$1.49

22

SCREW, TAPPING (4X12)

93903-24320

$1.49

23

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

23

BOLT, FLANGE (8X35)

95701-08035-00

$2.30
