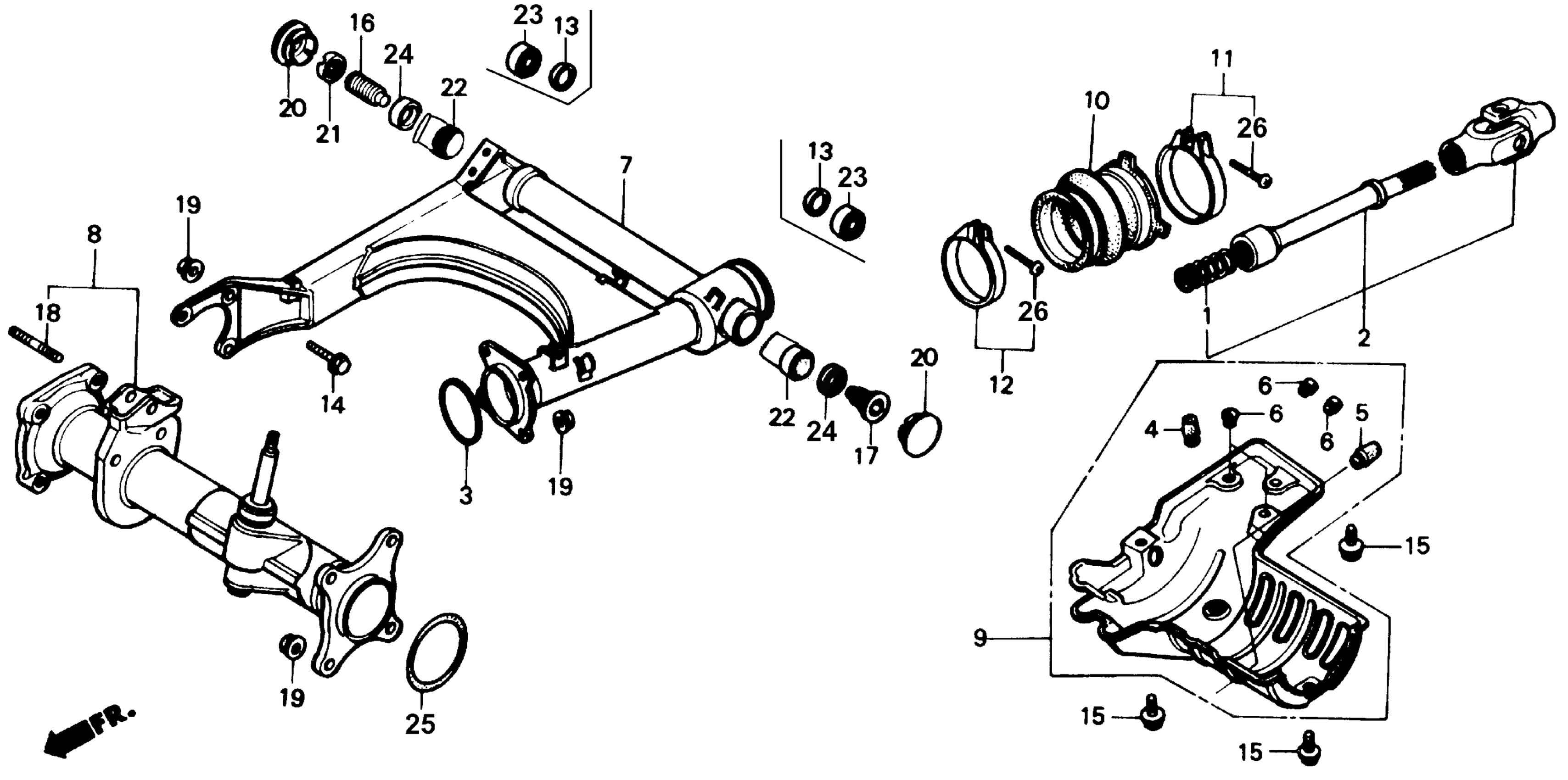

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 FRONT SWINGARM Diagram

#

Description
Price

1

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

2

JOINT, FR. YOKE (NOT AVAILABLE)

40400-HA7-771

Unavailable

3

O-RING (62.4X2.5) (ARAI) This part replaces 41123-516-000.

91304-MF5-003

$6.31

4

RUBBER A, STOPPER

50352-428-000

$2.75

5

RUBBER, STOPPER

50353-HA7-670

$2.92

6

RUBBER B, STOPPER

50354-428-000

$2.75

7

SWINGARM, FR. (NOT AVAILABLE) | Use up to Frame SN HM107082 This part replaces 51310-HA7-770.

51310-HA7-650

Unavailable

7

SWINGARM, FR. (NOT AVAILABLE) | Use from Frame SN HK100001 to HK103718 This part replaces 51310-HA7-770.

51310-HA7-650

Unavailable

7

SWINGARM, FR. (NOT AVAILABLE) | Use from Frame SN HK103719 This part replaces 51310-HA7-771.

51310-HA7-650

Unavailable

8

PIPE, FR. AXLE (NOT AVAILABLE) | Use up to Frame SN HM107082 This part replaces 51330-HA7-770.

51330-HA7-650

Unavailable

8

PIPE, FR. AXLE (NOT AVAILABLE) | Use from Frame SN HK100001 to HK103118 This part replaces 51330-HA7-770.

51330-HA7-650

Unavailable

8

PIPE, FR. AXLE (NOT AVAILABLE) | Use from Frame SN HK103119 This part replaces 51330-HA7-771.

51330-HA7-650

Unavailable

9

PLATE, FR. SKID (NOT AVAILABLE)

51355-HA7-671

Unavailable

10

BOOT, FR. JOINT

52105-HA7-670

Unavailable

11

BAND ASSY., BOOT JOINT (70MM) (NOT AVAILABLE)

52108-HA7-670

Unavailable

12

BAND ASSY., BOOT JOINT (82MM) (NOT AVAILABLE)

52109-HA7-670

Unavailable

14

BOLT, SPECIAL (10MM) (NOT AVAILABLE)

90109-HA0-681

Unavailable

15

BOLT, FLANGE (8X10)

90116-965-000

Unavailable

16

BOLT, R. SWINGARM PIVOT

90121-HA0-000

Unavailable

17

BOLT, L. SWINGARM PIVOT

90122-MB0-000

Unavailable

18

BOLT, STUD (10X28) (NOT AVAILABLE)

90160-HA7-770

Unavailable

19

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

20

CAP, LOCK NUT

90312-HA0-000

$11.72

21

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

22

BEARING, TAPER ROLLER (17X40X13.25) (KOYO) This part replaces 91066-HA7-671.

91066-HA7-672

$62.07

22

BEARING, TAPER ROLLER (17X40X13.25) (KOYO)

91066-HA7-672

$62.07

25

O-RING (56X2.6) (ARAI) (NOT AVAILABLE)

91320-HA7-671

Unavailable

25

O-RING (56X2.6) (ARAI) (NOT AVAILABLE) This part replaces 91320-HA7-672.

91320-HA7-671

Unavailable

26

SCREW, PAN (5X28)

93500-05028-0A

$1.49
