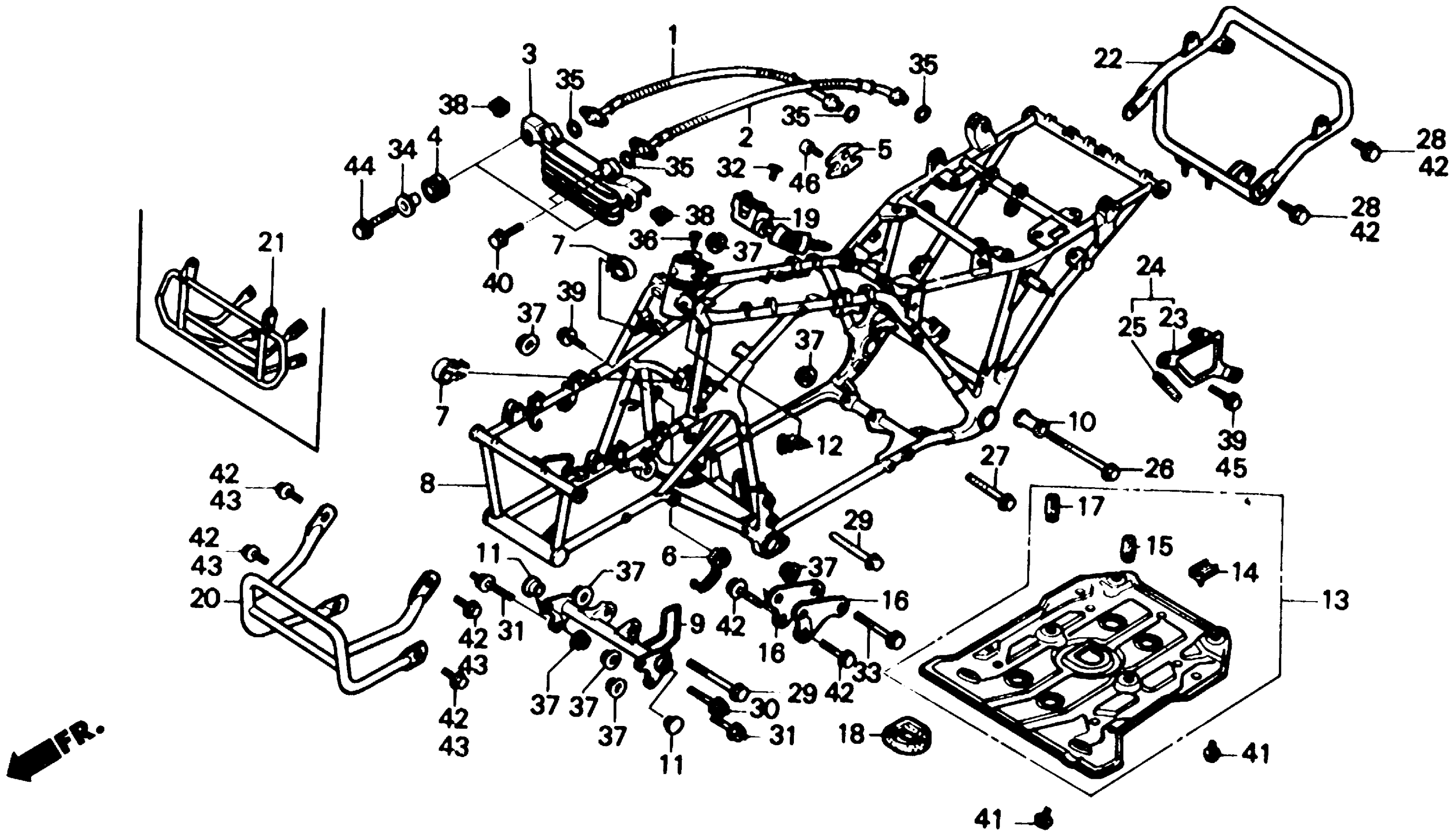

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 FRAME Diagram

#

Description
Price

1

HOSE, R. OIL This part replaces 15520-HA7-770.

15520-HA7-650

Unavailable

1

HOSE, R. OIL

15520-HA7-650

Unavailable

2

HOSE, L. OIL (NOT AVAILABLE) This part replaces 15525-HA7-770.

15525-HA7-650

Unavailable

3

COOLER, OIL | Use up to Frame SN HM106594 This part replaces 15600-HA7-672.

15600-HA7-306

Unavailable

3

COOLER, OIL | Use from Frame SN HM106595 This part replaces 15600-HA7-772.

15600-HA7-306

Unavailable

3

COOLER, OIL | Use from Frame SN HK100001 This part replaces 15600-HA7-772.

15600-HA7-306

Unavailable

3

COOLER, OIL This part replaces 15600-HA7-771.

15600-HA7-305

Unavailable

4

GROMMET, OIL COOLER

15601-HA7-670

Unavailable

5

PLATE, OIL HOSE SETTING This part replaces 15630-HA7-670.

15630-HM7-A00

$18.67

5

PLATE, OIL HOSE SETTING

15630-HM7-A00

$18.67

6

BAND, OIL HOSE

19022-HA7-670

Unavailable

7

CLAMP, OIL HOSE A (NOT AVAILABLE)

19026-HA7-671

Unavailable

8

FRAME | Use up to Frame SN HM106694

50100-HA7-770

Unavailable

8

FRAME (NOT AVAILABLE) | Use from Frame SN HM106695 to HM107082

50100-HA7-771

Unavailable

8

FRAME | Use from Frame SN HK100001 This part replaces 50100-HA7-773.

50100-HA7-880

Unavailable

9

BRACKET, ENGINE HANGER (NOT AVAILABLE)

50162-HA7-770

Unavailable

10

COLLAR, L. ENGINE MOUNTING

50252-HA0-000

Unavailable

11

CAP, CROSSMEMBER SIDE

50255-HA7-670

Unavailable

13

GUARD, ENGINE This part replaces 50350-HA7-670.

50350-HA7-650

Unavailable

13

GUARD, ENGINE

50350-HA7-650

Unavailable

14

RUBBER, STOPPER

50351-HA7-670

Unavailable

15

RUBBER A, STOPPER

50352-434-000

$5.55

16

HANGER, ENGINE TOP

50356-HA7-670

Unavailable

17

RUBBER D, STOPPER (NOT AVAILABLE)

50361-961-000

Unavailable

18

RUBBER, DRAIN STOPPER (NOT AVAILABLE)

50362-HA7-670

Unavailable

20

BUMPER, FR. (NOT AVAILABLE)

62510-HA7-670

Unavailable

22

BUMPER, RR. (NOT AVAILABLE)

82510-HA7-670

Unavailable

24

PROTECTOR, L. COVER (NOT AVAILABLE)

83602-HA7-671

Unavailable

25

RUBBER, L. PROTECTOR (NOT AVAILABLE)

83603-HA7-670

Unavailable

26

BOLT, FLANGE (10X145)

90036-PA0-000

Unavailable

27

BOLT, FLANGE (10X110)

90115-HA0-770

$9.23

28

BOLT, FLANGE (8X18)

90117-HA7-670

$1.67

29

BOLT, FLANGE (10X80)

90101-MN9-000

$12.33

29

BOLT, FLANGE (10X80) This part replaces 90122-HA2-003.

90101-MN9-000

$12.33

30

BOLT, ENGINE HANGER (10X70) (NOT AVAILABLE)

90153-HA7-670

Unavailable

31

BOLT, ENGINE HANGER

90154-HA7-670

$7.59

33

BOLT, FLANGE (10X66)

90182-MB2-003

$9.21

34

COLLAR (8.6X14)

90551-MA6-000

Unavailable

35

O-RING (11X2.5)

91310-426-000

$5.19

35

O-RING (11X2.5) This part replaces 91314-MA6-005.

91310-426-000

$5.19

37

NUT, FLANGE (10MM)

94050-10000

$1.59

38

RUBBER A, STAND STOPPER

95011-61000

$1.49

39

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

39

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

40

BOLT, FLANGE (6X30) | Use up to Frame SN HM106594 This part replaces 95700-06030-08.

95701-06030-08

$2.06

40

BOLT, FLANGE (6X30) | Use up to Frame SN HM106594

95701-06030-08

$2.06

40

BOLT, FLANGE (6X20) | Use from Frame SN HM106595 This part replaces 96000-06020-00.

96001-06020-00

$1.49

40

BOLT, FLANGE (6X20) | Use from Frame SN HK100001 This part replaces 96000-06020-00.

96001-06020-00

$1.49

40

BOLT, FLANGE (6X20) | Use from Frame SN HM106595

96001-06020-00

$1.49

40

BOLT, FLANGE (6X20) | Use from Frame SN HK100001

96001-06020-00

$1.49

41

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

41

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

42

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

42

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

43

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

43

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

44

BOLT, FLANGE (8X25) This part replaces 95700-08025-07.

95701-08025-07

$1.49

44

BOLT, FLANGE (8X25)

95701-08025-07

$1.49

46

BOLT, SOCKET (6X25)

96700-06025-08

$2.00
