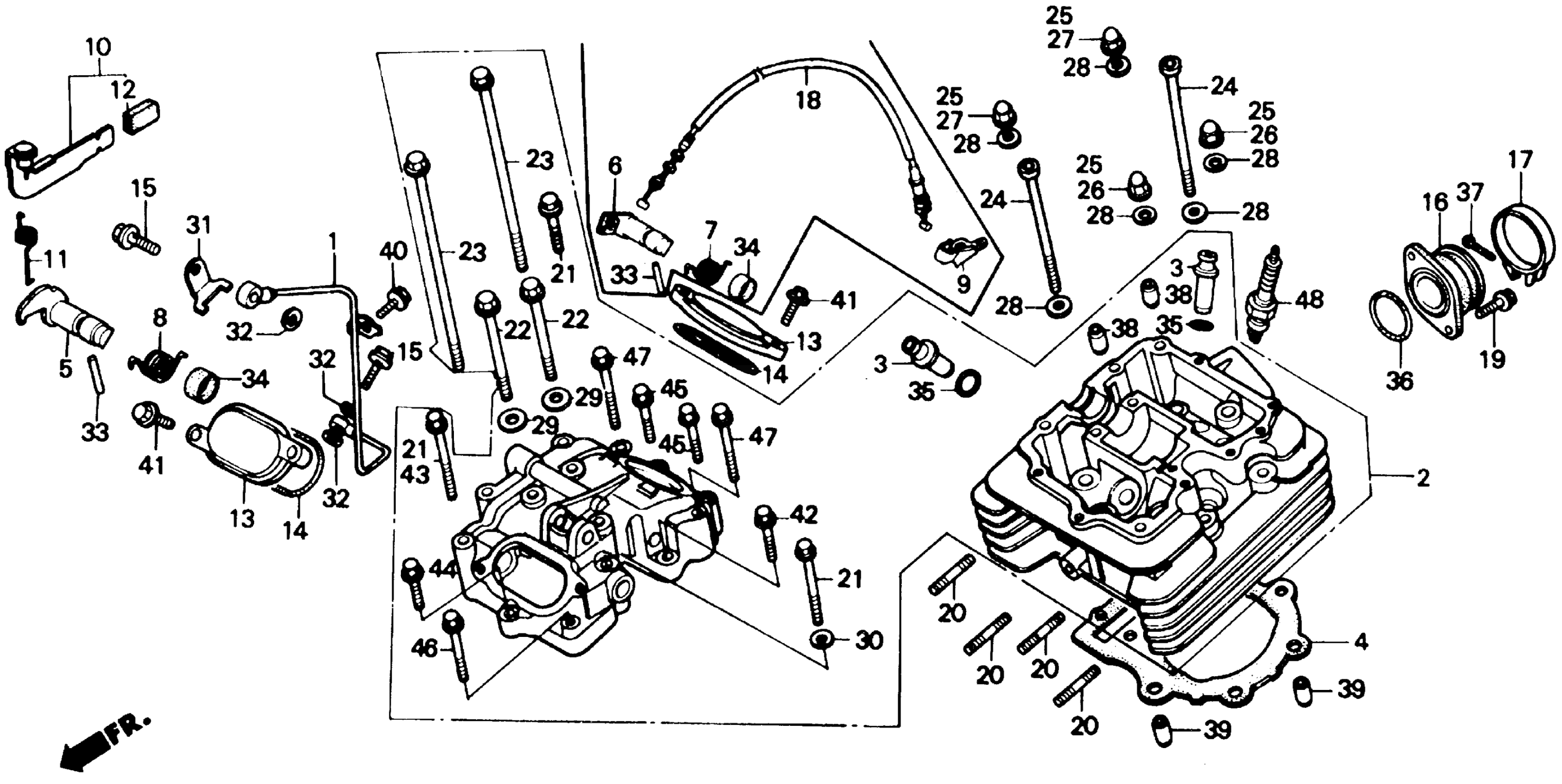

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE (NOT AVAILABLE)

11335-HA7-670

Unavailable

2

CYLINDER HEAD ASSY. This part replaces 12000-HA7-770.

12000-HA7-305

Unavailable

3

GUIDE, VALVE (O.S)

12233-HA5-305

$17.90

4

GASKET, CYLINDER HEAD (NIPPON)

12251-HA5-004

Unavailable

4

GASKET, CYLINDER HEAD (OVER SIZE) (NIPPON) (NOT AVAILABLE) | (Optional).

12252-HA5-305

Unavailable

6

LIFTER, VALVE (NOT AVAILABLE)

12319-HA7-670

Unavailable

7

SPRING, VALVE LIFTER (NOT AVAILABLE)

12321-HA5-000

Unavailable

9

RECEIVER, DECOMPRESSION CABLE (NOT AVAILABLE)

12323-HA5-000

Unavailable

13

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$34.49

14

GASKET, TAPPET COVER (KOYO) This part replaces 12392-428-000.

12392-HC4-005

$3.66

14

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

15

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$9.30

16

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-HA7-671

Unavailable

17

BAND, INSULATOR

16219-422-000

$11.43

18

CABLE, DECOMPRESSION

28291-HA7-671

$28.16

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

20

BOLT, STUD (8X22)

92900-08022-0B

$1.94

21

BOLT, FLANGE (6X52)

90009-HA0-000

$3.95

22

BOLT, FLANGE (7X72)

90051-HA5-000

Unavailable

23

BOLT, FLANGE (7X145)

90052-HA5-670

Unavailable

24

BOLT, SOCKET (10X110) (NOT AVAILABLE)

90064-HA5-000

Unavailable

25

NUT, CAP (10MM) | Use up to Engine SN 8111664

90201-HA0-000

$5.99

26

NUT, CAP (10MM) | Use from Engine SN 8111665

90201-HA0-000

$5.99

27

NUT, CAP (10MM) | Use from Engine SN 8111665

90201-HA0-000

$5.99

27

NUT, CAP (10MM) | Use from Engine SN 8111665 This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

28

WASHER (10MM)

90410-HA0-000

Unavailable

29

WASHER, SEALING (7MM)

90441-MC0-000

Unavailable

30

WASHER, SEALING (6MM)

90441-706-000

$1.06

31

WASHER, LOCK (8MM) (TOPY) (NOT AVAILABLE)

90443-HA7-771

Unavailable

32

WASHER C (8MM)

90475-703-000

Unavailable

33

PIN, DOWEL (5X28)

91101-428-000

$3.57

34

OIL SEAL (17X27X5) (KOYO) This part replaces 91201-428-005.

91202-HC5-005

$3.32

34

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.32

35

O-RING (10X1.6)

91301-200-000

$2.80

36

O-RING (35.4X2.9)

91305-HA5-000

$8.58

37

SCREW, PAN (5X20)

93500-05020-0G

$0.75

38

PIN A, DOWEL (8X12)

94301-08120

$2.09

39

PIN, DOWEL (12X20)

94301-12200

$2.25

40

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

41

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

42

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

44

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

45

BOLT, FLANGE (6X35)

96001-06035-00

$1.28

46

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

47

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

48

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.00

48

SPARK PLUG

98069-38719

$2.00

48

SPARK PLUG (DR7ES) (NGK) | (Optional). This part replaces 98069-57716.

98069-57719

$2.16

48

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.16

48

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.16

48

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.32

48

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.32

48

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.25

48

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.25
