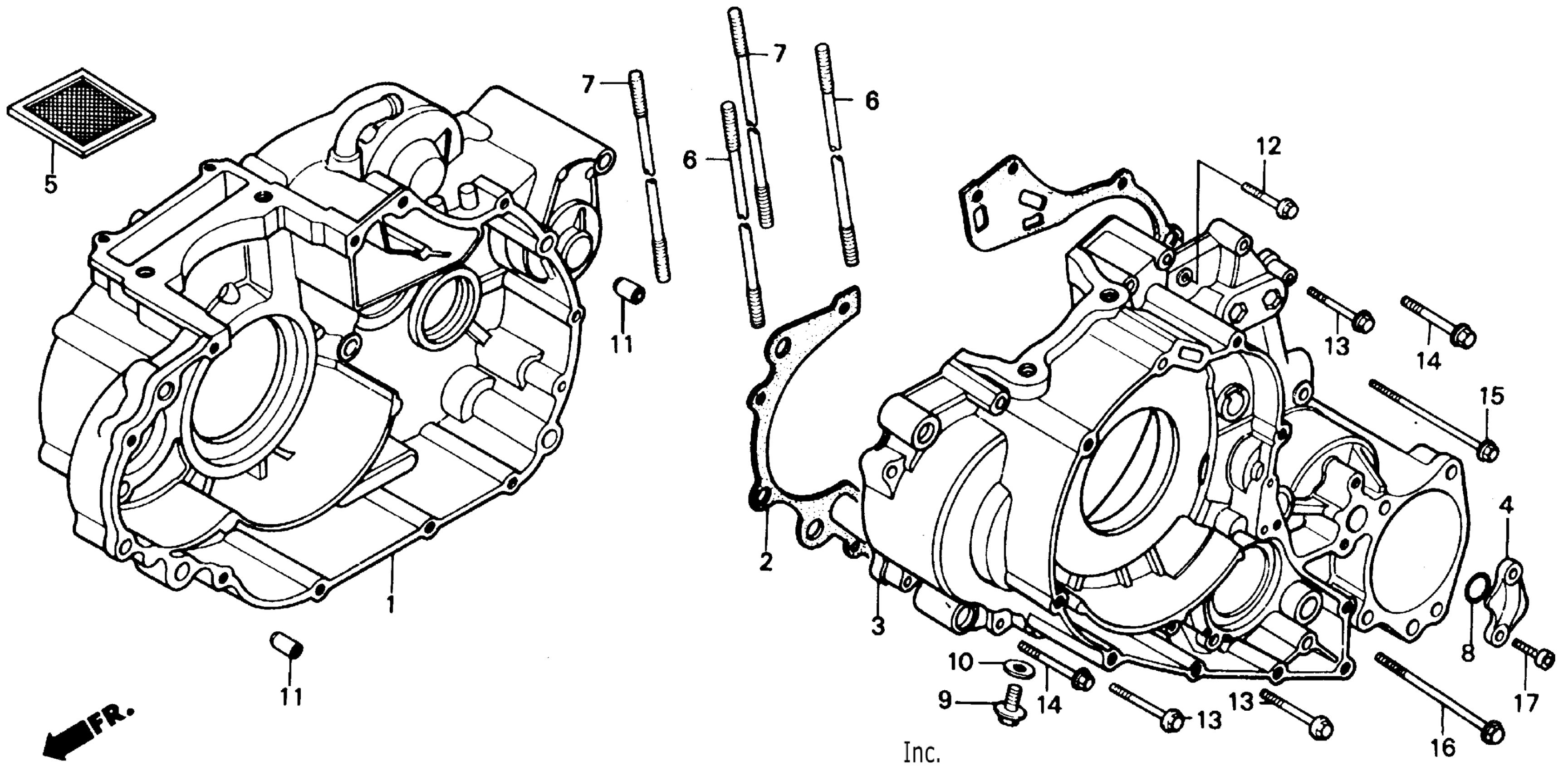

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 CRANKCASE Diagram

CRANKCASE, R. (NOT AVAILABLE)

11100-HA7-670

Unavailable

GASKET, CRANKCASE (NOT AVAILABLE) This part replaces 11191-HA7-306.

11191-HC5-740

Unavailable

GASKET, CRANKCASE (NOT AVAILABLE) This part replaces 11191-HA7-670.

11191-HC5-740

Unavailable

GASKET, CRANKCASE

11191-HC5-740

Unavailable

CRANKCASE, L.

11200-HA7-770

Unavailable

CAP, COUNTERSHAFT (NOT AVAILABLE)

11210-HA7-670

Unavailable

SCREEN, OIL FILTER

15421-428-000

$17.82

BOLT, STUD (10X175)

90031-HA5-000

Unavailable

BOLT, STUD (10X195) (NOT AVAILABLE)

90032-HA5-000

Unavailable

O-RING (19.8X1.9) (ARAI)

91308-PA9-003

$3.85

O-RING (19.8X1.9) (ARAI) This part replaces 91308-PA9-004.

91308-PA9-003

$3.85

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X45)

96001-06045-00

$1.95

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

BOLT, FLANGE (6X80)

96001-06080-00

$2.21

BOLT, SOCKET (6X20)

96600-06020-00

$1.49
