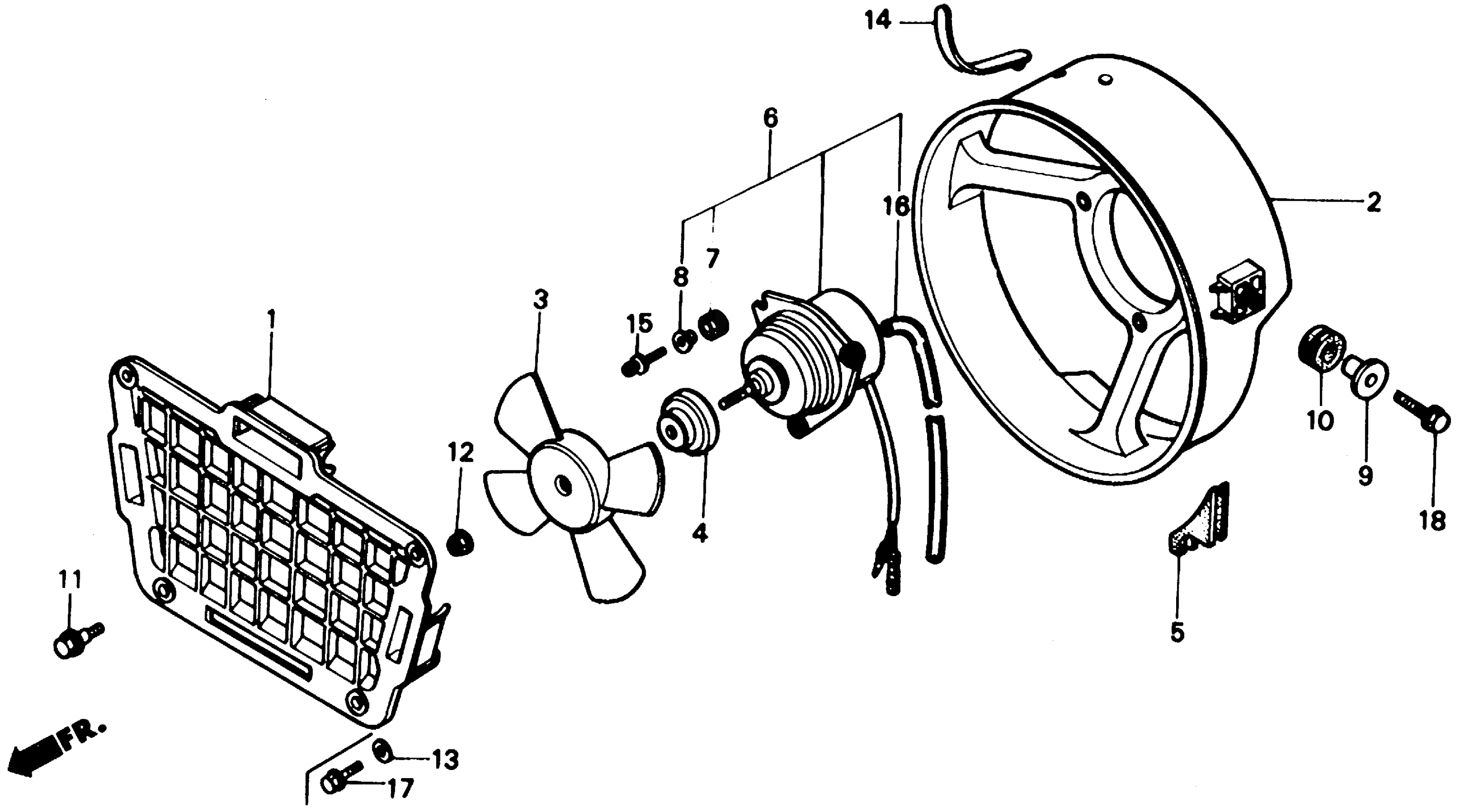

Honda TRX350A (87) FOURTRAX 4X4, JPN, VIN# JH3TE070-HK100001 TO JH3TE070-HK108252 COOLING FAN Diagram

PROTECTOR, FAN (NOT AVAILABLE) This part replaces 19014-HA7-770.

19014-HA7-651

Unavailable

SHROUD (NOT AVAILABLE)

19015-HA7-671

Unavailable

FAN, COOLING (MITSUBA) (NOT AVAILABLE)

19020-HA7-771

Unavailable

CUP, WASHER

19021-VM5-305

$20.30

RUBBER, SHROUD

19025-HA7-670

$7.67

MOTOR, COOLING FAN This part replaces 19030-HA7-771.

19030-HA7-772

Unavailable

GROMMET

19031-HA7-671

$4.04

COLLAR

19032-HA7-671

$3.48

COLLAR (8X12)

80101-KB7-600

$5.90

RUBBER, RR. FENDER

80152-958-680

$5.14

NUT, SPECIAL (5MM) (MITSUBA)

90311-MB6-003

$4.70

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

SCREW-WASHER (4X20)

93894-04020-00

$1.49

BULK HOSE, VINYL (4X7X8000) (4X7X700)

95003-07008-60M

$24.47

BOLT, FLANGE (6X16) This part replaces 95700-06016-07.

95701-06016-07

$1.55

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (8X25) This part replaces 95700-08025-07.

95701-08025-07

$1.49

BOLT, FLANGE (8X25)

95701-08025-07

$1.49
