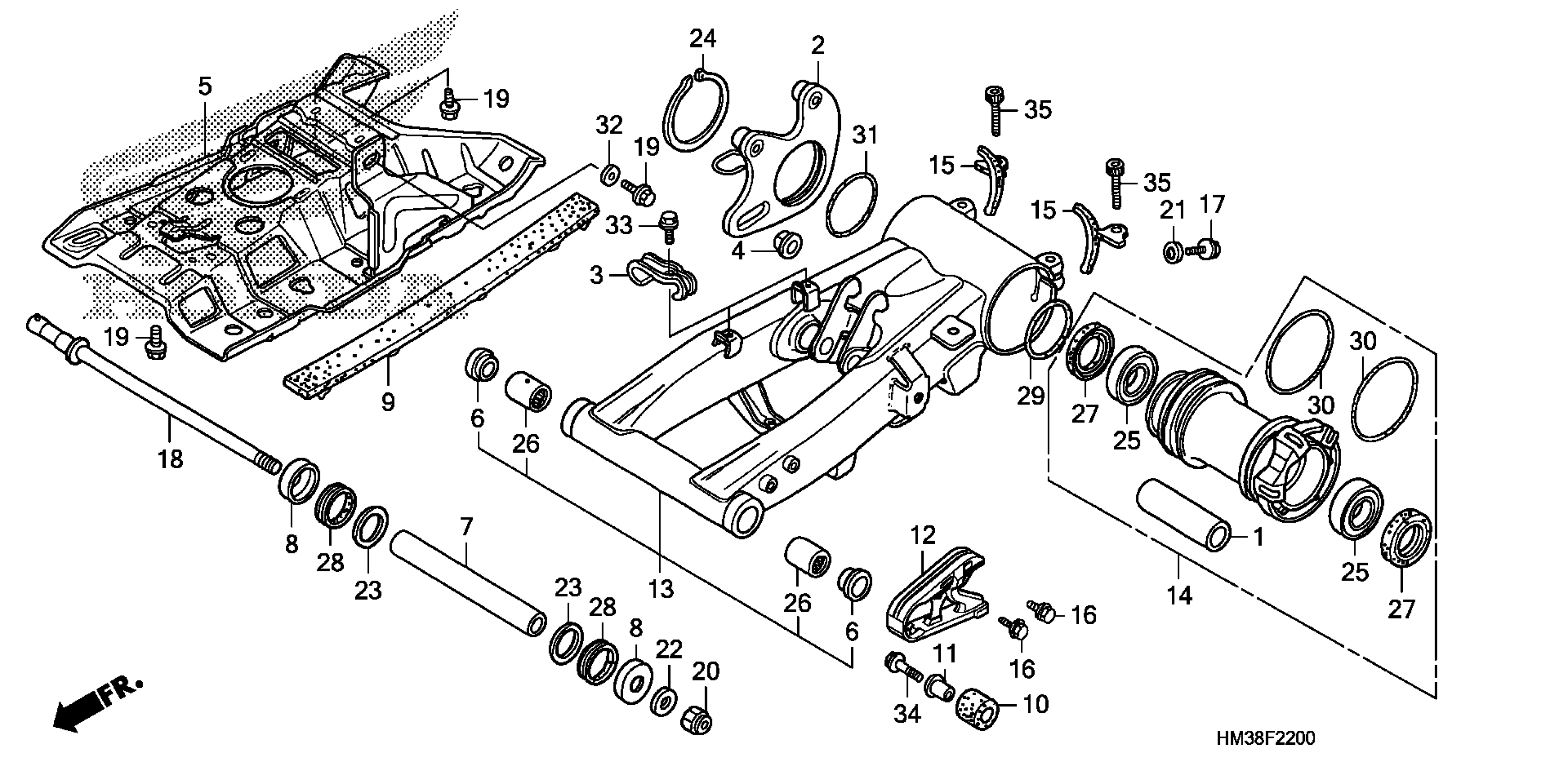

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 SWINGARM Diagram

#

Description
Price

1

COLLAR, RR. AXLE

42621-HA5-000

Unavailable

2

STAY, RR. CALIPER

43211-HC0-000

$135.14

3

CLAMP, BRAKE HOSE

43311-965-000

$7.09

4

BUSH, RR. BRAKE STAY

43483-HB5-670

$7.92

5

PLATE, SKID

50355-HC0-670

Unavailable

6

BUSH, PIVOT THRUST

52109-KA4-701

$14.27

7

COLLAR, SWINGARM CENTER

52141-HC0-000

Unavailable

8

CAP, SWINGARM DUST SEAL

52144-HA5-000

$11.63

9

SLIDER, SKID PLATE

52156-HC0-000

$39.97

10

ROLLER, CHAIN

52158-HC0-000

$10.63

11

COLLAR, CHAIN ROLLER

52159-467-000

$10.37

12

SLIDER, CHAIN

52170-HM3-A60

Unavailable

13

SWINGARM ASSY., RR.

52200-HM3-A60

$567.29

14

HOLDER ASSY., BEARING

52200-HM3-000

$382.55

15

SEAL, BEARING HOLDER

52202-HB5-000

$11.61

16

BOLT, FLANGE (6X10)

90107-HC5-000

$2.12

17

BOLT, STOPPER (8MM)

90115-964-003

$3.42

18

BOLT, SWINGARM PIVOT

90121-HC0-670

$111.42

19

BOLT, FLANGE (8X12)

90190-MG3-000

$3.33

20

NUT, U (14MM)

90305-197-013

$5.71

21

WASHER (8MM)

90481-035-000

$1.70

22

WASHER (26X14X2.8)

90501-GAH-000

$6.18

22

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.18

23

WASHER, PLAIN (32MM)

90551-HA5-000

$6.06

24

CIRCLIP (OUTER) (70)

90665-964-000

$11.36

25

BEARING (40X62X12) (KOYO)

91051-HA2-013

$32.59

26

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$29.73

27

DUST SEAL (52X62X7) (ARAI)

91252-HA2-003

$14.50

28

DUST SEAL

91253-KA4-701

$11.54

28

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$11.54

29

O-RING, ROTARY CASE

91351-737-752

$4.79

30

O-RING, BEARING HOLDER (ARAI)

91353-HA2-003

$6.36

31

O-RING (69X2)

91302-MS2-003

$3.84

31

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$3.84

32

WASHER, PLAIN (8MM)

94103-08700

$0.86

33

BOLT, FLANGE (6X10)

95701-06010-00

$1.14

34

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

35

BOLT, SOCKET (8X32)

96700-08032-00

$1.62
