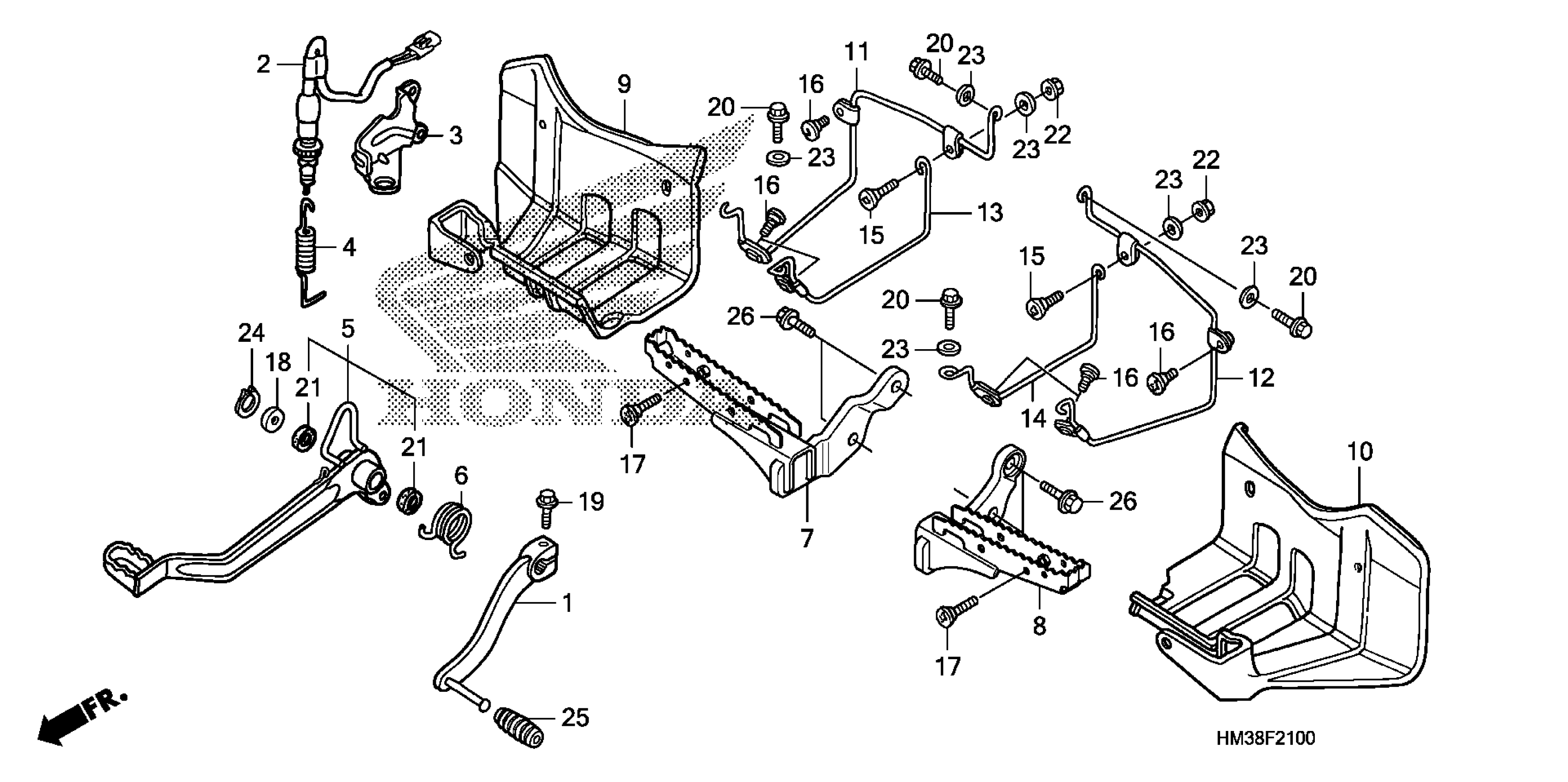

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 STEP Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-HM3-A60

Unavailable

2

SWITCH ASSY., RR. STOP

35350-HM3-A61

$61.91

3

STAY, STOP SWITCH

35351-HM3-900

Unavailable

4

SPRING, STOP SWITCH

35357-HM3-900

Unavailable

5

PEDAL ASSY., BRAKE

46510-HM3-900

$88.12

6

SPRING, BRAKE PEDAL

46514-HC0-670

Unavailable

7

STEP, R.

50610-HM3-A60

$64.28

8

STEP, L.

50620-HM3-A60

$64.28

9

SPLASH GUARD, R. RR. *NH1* (BLACK)

80121-HC0-670ZC

$54.01

10

SPLASH GUARD, L. RR. *NH1* (BLACK)

80122-HC0-670ZC

$54.01

11

STAY, R. SPLASH GUARD (OUTER)

80123-HM3-A60

Unavailable

12

STAY, L. SPLASH GUARD (OUTER)

80124-HM3-A60

Unavailable

13

STAY, R. SPLASH GUARD (INNER)

80126-HM3-A60

Unavailable

14

STAY, L. SPLASH GUARD (INNER)

80127-HM3-A60

Unavailable

15

SCREW, SPLASH GUARD (6X20)

90103-HB9-740

$4.05

16

SCREW, SPLASH GUARD

90103-HC4-770

$2.06

17

SCREW, SPECIAL (6MM)

90103-HF1-670

$5.80

18

WASHER (17.5MM)

90117-HC0-000

$5.46

19

BOLT, FLANGE (6X20)

90118-968-000

$4.04

20

BOLT, FLANGE (6X16)

90181-HB9-770

$2.32

21

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

21

DUST SEAL (17X23X3) (NOK) This part replaces 91206-968-004.

91206-968-003

$3.52

22

NUT, FLANGE (6MM)

94050-06000

$0.60

23

WASHER, PLAIN (6MM)

94103-06000

Unavailable

24

CIRCLIP (OUTER) (17MM)

94511-17000

$0.90

25

RUBBER, CHANGE PEDAL

95011-40000

$1.16

26

BOLT, FLANGE (10X35)

95801-10035-00

$2.21
