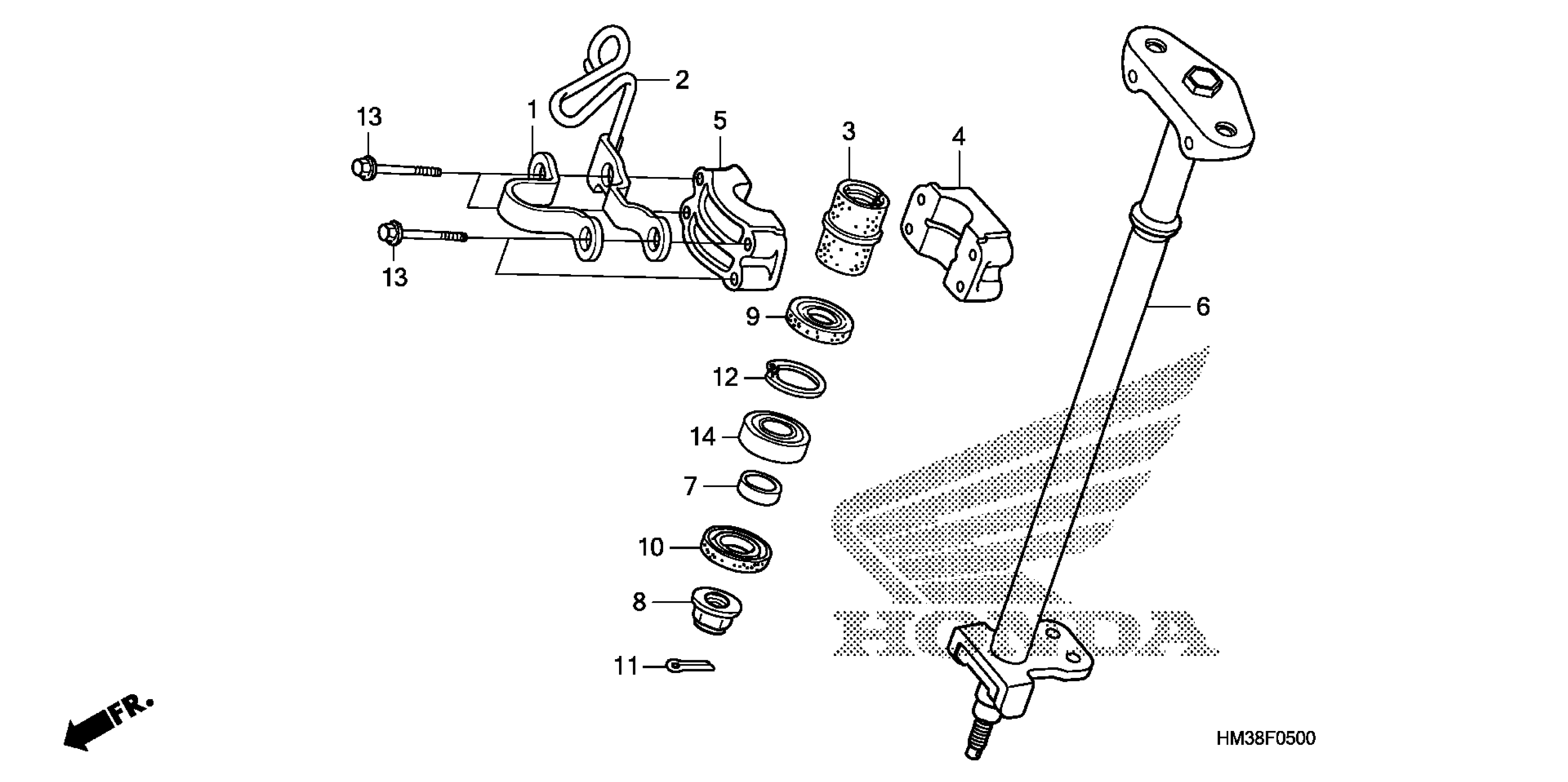

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 STEERING SHAFT Diagram

CLAMP, FR. BRAKE HOSE

45462-HM3-A60

$4.39

STAY, FR. BRAKE HOSE

45463-HM3-A60

Unavailable

BUSH, STEERING (YAMASHITA)

53221-HB9-670

$34.70

HOLDER, STEERING SHAFT (INNER)

53223-HB3-000

Unavailable

HOLDER, STEERING SHAFT (OUTER)

53224-HB3-000

Unavailable

SHAFT, STEERING

53310-HM3-A60

Unavailable

COLLAR, STEERING SHAFT

53317-HM8-A00

$6.59

NUT, SELF-LOCK (14MM)

90213-S73-003

$5.15

OIL SEAL (27X40X6) (ARAI) This part replaces 90753-GB4-681.

90753-GK4-003

$8.66

OIL SEAL (27X40X6) (ARAI)

90753-GK4-003

$8.66

DUST SEAL (23X35X7)

91205-VM6-003

$9.59

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

BEARING, RADIAL BALL (6203UU)

96150-62033-10

$18.12
