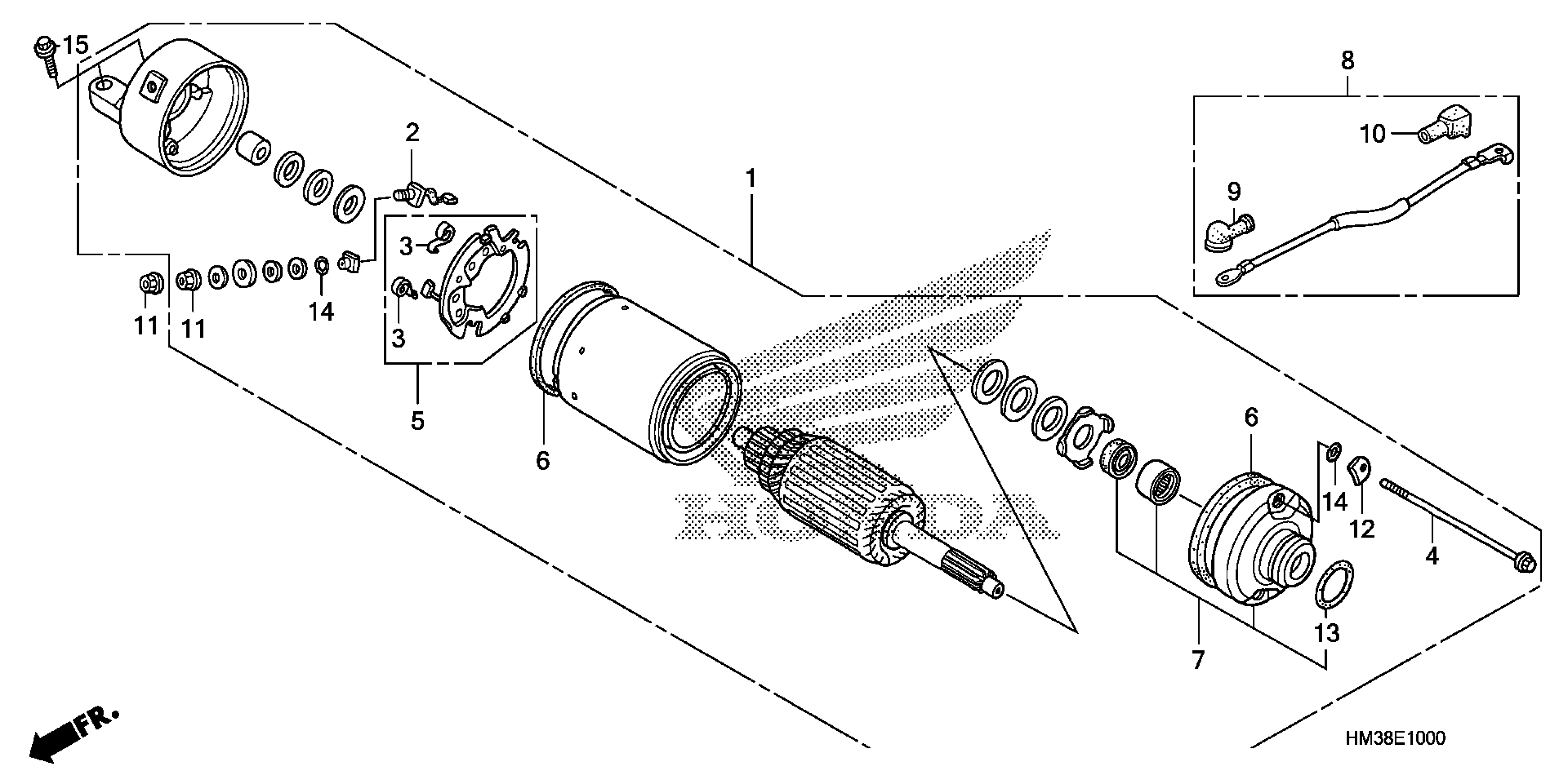

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 STARTER MOTOR Diagram

STARTER MOTOR ASSY.

31200-HM3-671

$422.83

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MN4-008

$5.29

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

RING

31207-KS5-901

$2.90

BRACKET, FR.

31210-HM7-003

$74.52

CABLE, STARTER MOTOR

32410-HM3-A60

$27.59

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

COVER B, STARTER MAGNETIC

32416-KAF-000

$4.61

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.20

BOLT, FLANGE (6X25)

95801-06025-00

$0.99
