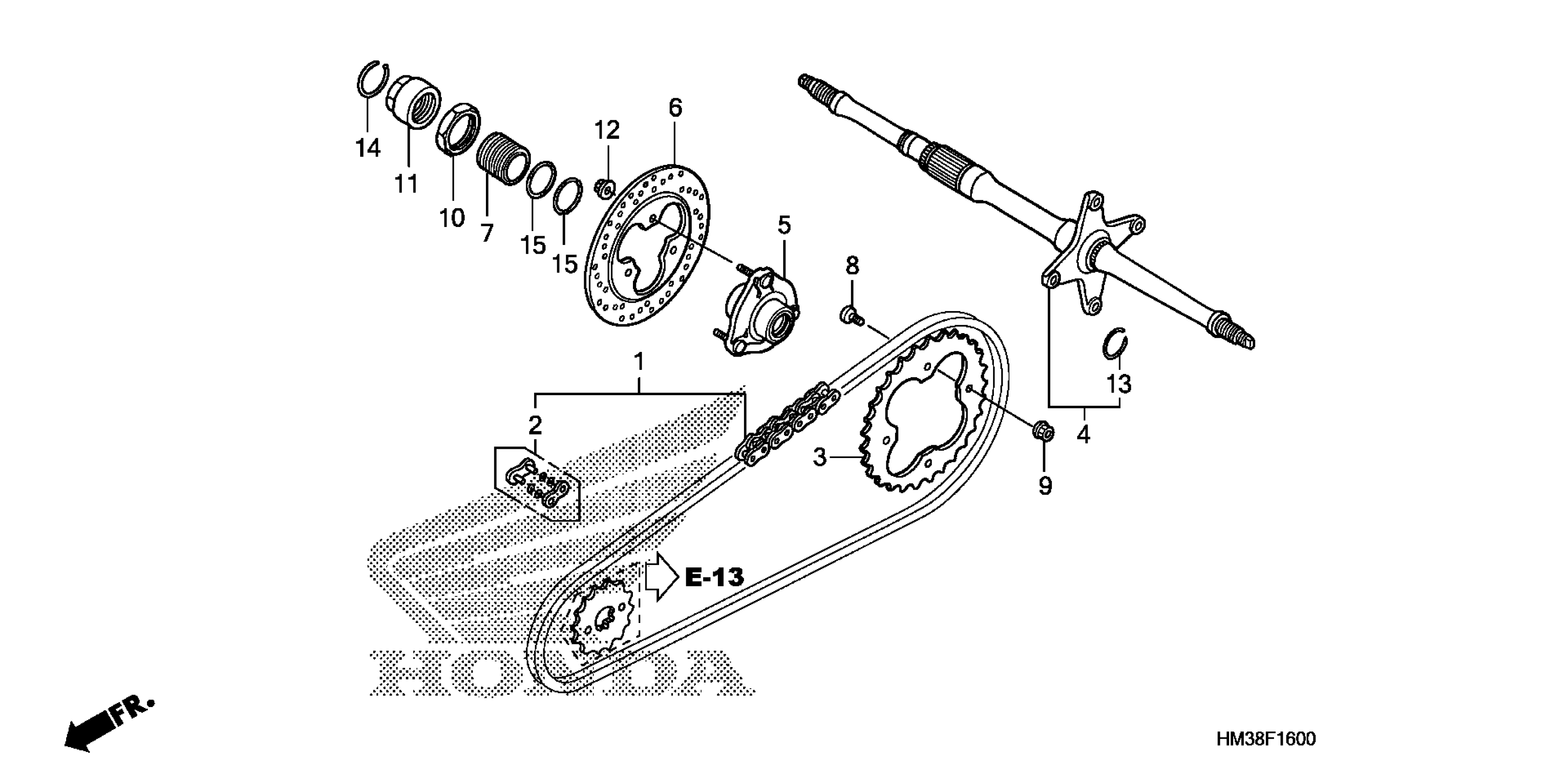

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 REAR WHEEL AXLE Diagram

CHAIN SET, DRIVE (DID520 92-100L) (DAIDO) (STANDARD LINK 86L) (NOT AVAILABLE)

06405-KRG-P00

Unavailable

CHAIN, DRIVE (DID520V-100ZB) (DAIDO) (STANDARD LINK 94L) This part replaces 06405-KRG-P10.

40540-KRG-305

$167.16

CHAIN, DRIVE (DID520V-100ZB) (DAIDO) (STANDARD LINK 94L) This part replaces 40540-KRG-306.

40540-KRG-305

$167.16

MASTER LINK (DAIDO)

40545-KPM-305

$9.33

MASTER LINK (RK EXCEL)

40545-KPM-306

$9.33

SPROCKET, FINAL DRIVEN (38T)

41201-HC0-000

$91.15

AXLE, RR.

42310-HC0-010

$519.52

FLANGE, BRAKE DISK

43120-HC0-010

$154.98

DISK, RR. BRAKE

43122-HM3-A61

$237.41

BOLT, RR. AXLE

43127-HA2-000

$38.00

BOLT, DRIVEN SPROCKET (10MM)

90114-HM3-A60

$4.45

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

NUT, RR. AXLE SPECIAL

90307-HA2-000

$23.04

NUT B, RR. AXLE

90308-HB9-000

$13.40

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

CLIP (OUTER) (40MM)

90651-HA2-000

$4.07

CLIP (OUTER) (37MM)

90652-HA2-000

$3.35

O-RING (39.7X1.3)

91351-HA5-003

$3.67
