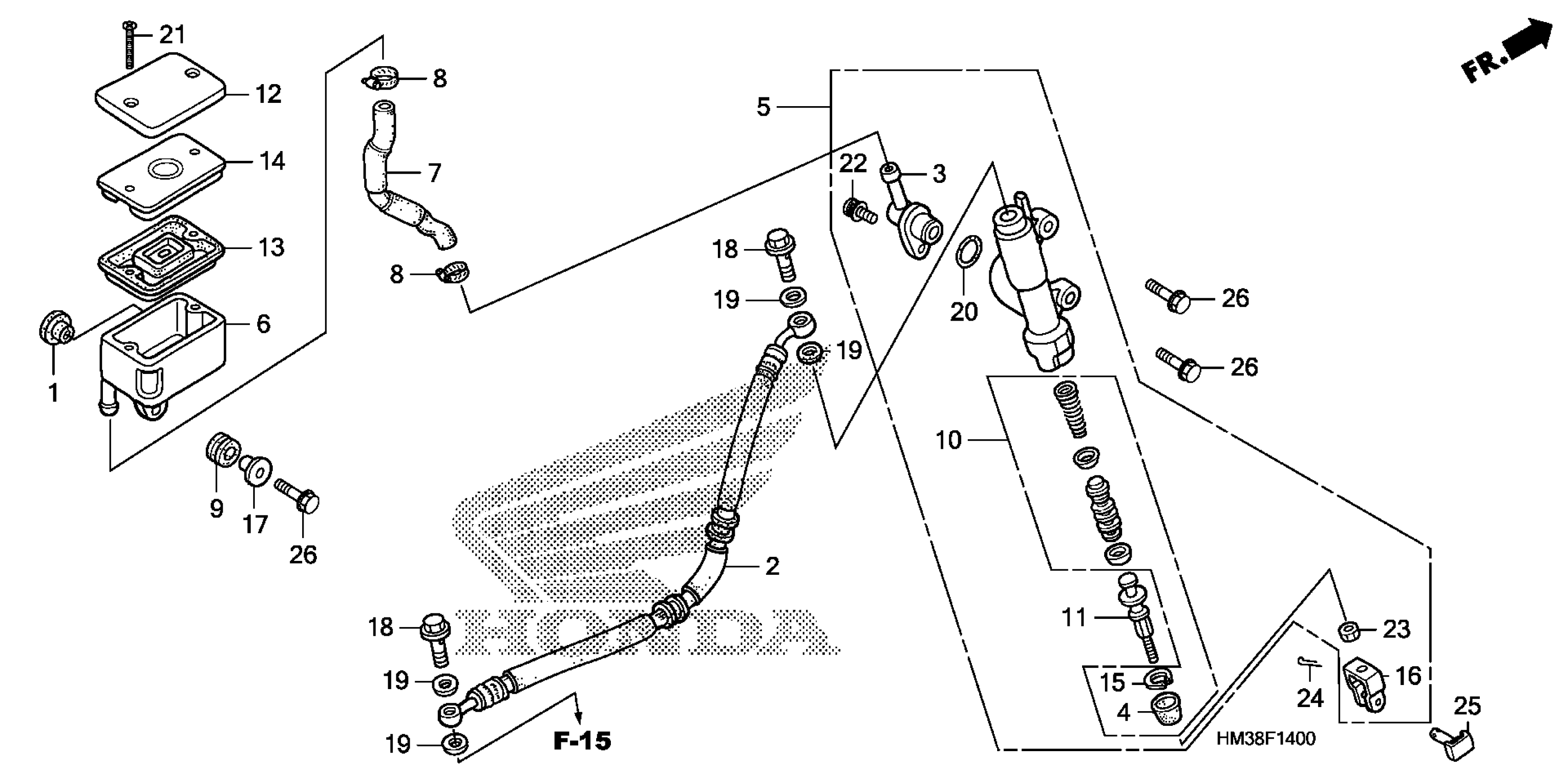

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

$4.62

2

HOSE ASSY., RR. BRAKE

43310-HM3-A61

Unavailable

3

CONNECTOR

43503-MJ0-006

Unavailable

4

BOOT

43504-MB2-006

$10.04

5

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-HM3-A62

$153.92

6

CUP, OIL

43511-HA2-016

$37.16

7

HOSE, MASTER CYLINDER OIL

43512-HM3-A61

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

$17.93

9

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

11

ROD, PUSH (NISSIN)

43530-HC0-006

$23.18

12

CAP, MASTER CYLINDER

45513-GW3-851

$21.52

13

DIAPHRAGM

45520-MG7-006

$10.61

14

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

15

CIRCLIP

46182-MEL-D21

$1.93

16

JOINT, BRAKE ROD

46504-MT8-006

$9.05

17

COLLAR (6.3X13)

50324-425-010

$5.05

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

O-RING (14.8X2.4)

91212-422-006

$2.56

21

SCREW, FLAT (4X30)

93600-04030-1A

$1.49

22

SCREW-WASHER (4X12)

93893-04012-07

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

23

NUT, HEX. (8MM)

94002-08000-0S

$1.49

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

24

PIN, SPLIT (2.0X22)

94201-20220

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

24

PIN, SPLIT (2.0X35)

94201-20350

$1.49

24

PIN, COTTER (2.0X22)

94201-29220

$1.49

25

PIN D, JOINT

95015-54000

$4.24

26

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
