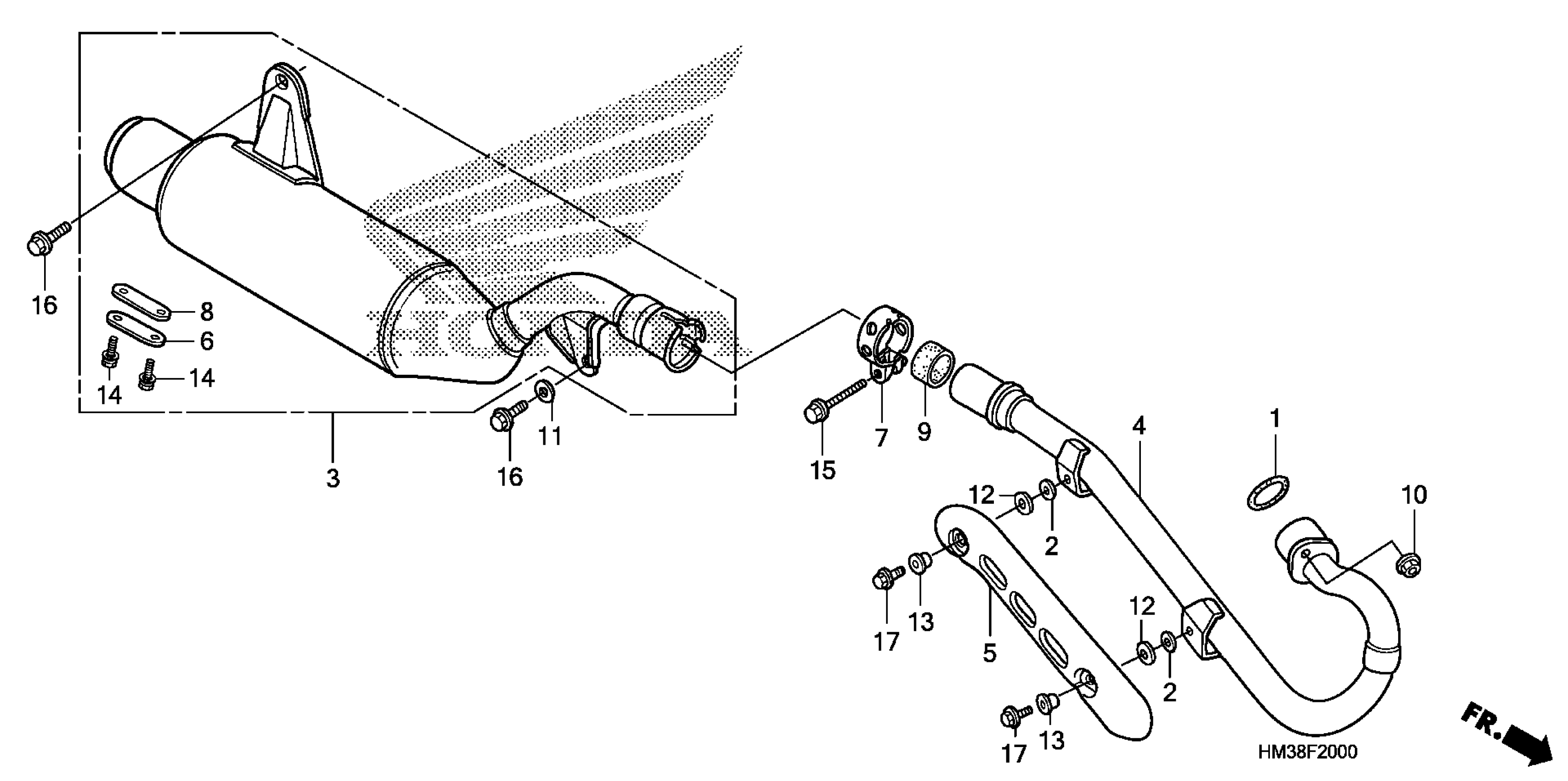

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 MUFFLER Diagram

Description

Price

GASKET, EX. PIPE

18291-MV9-000

Unavailable

GASKET, PROTECTOR

18292-KBR-000

$3.29

MUFFLER

18310-HM3-000

Unavailable

PIPE, EX.

18320-HM3-000

$138.53

PROTECTOR, EX. PIPE

18321-HC0-000

$42.83

LID, MUFFLER

18373-429-010

$8.43

BAND, L. EX. PIPE

18374-ML0-000

$27.91

GASKET, MUFFLER LID

18374-MN1-880

$4.01

GASKET, MUFFLER

18391-MN5-650

$18.92

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

WASHER, PLAIN (10MM)

90401-437-000

$2.59

WASHER (6MM)

90485-286-000

$1.50

COLLAR, RR. COVER

90554-GC3-000

$2.32

BOLT-WASHER (6X12)

93401-06012-07

$1.63

BOLT, FLANGE (8X35)

95701-08035-00

$2.80

BOLT, FLANGE (10X16)

95701-10016-00

$1.18

BOLT, FLANGE (6X14)

96001-06014-02

$1.37
