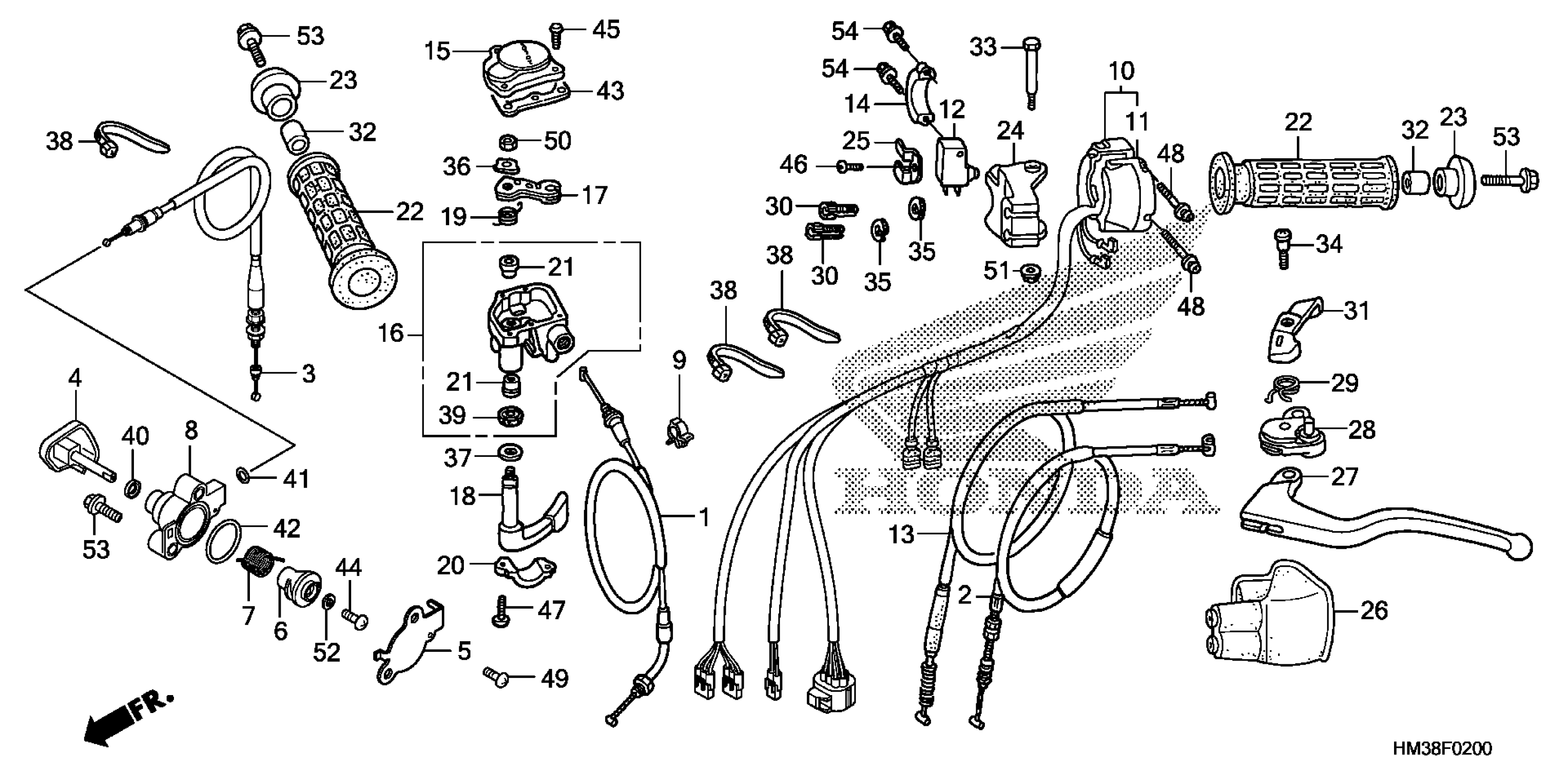

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HC0-670

$41.00

2

CABLE, CLUTCH

22870-HM3-A60

$31.25

3

CABLE, REVERSE ASSIST

22880-HM3-A60

Unavailable

4

KNOB, REVERSE ASSIST LEVER

22881-HM3-A60

Unavailable

5

COVER, REVERSE ASSIST LEVER (LOWER)

22883-HN6-A30

$3.59

6

DRUM, REVERSE ASSIST LEVER

22885-HN1-A40

$2.81

7

SPRING, REVERSE ASSIST LEVER

22886-HN1-A40

$2.41

8

CASE, REVERSE ASSIST LEVER

22887-HN6-A30

$32.46

9

CLIP, IGNITION WIRE (8MM)

30701-883-000

$2.65

9

CLIP, IGNITION WIRE (8MM) This part replaces 32175-647-920.

30701-883-000

$2.65

10

SWITCH ASSY. This part replaces 35150-HM3-A71.

35150-HM3-A72

Unavailable

11

COVER, SWITCH

35201-HB7-671

$12.10

12

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

12

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

13

CABLE, PARKING BRAKE

43455-HM3-A60

Unavailable

14

HOLDER, MASTER CYLINDER

45517-GBZ-700

$10.17

15

COVER, THROTTLE CASE

53141-HP1-000

$32.85

16

CASE ASSY., THROTTLE LEVER

53143-HM7-305

$45.77

17

ARM, THROTTLE

53144-HA0-010

$7.18

18

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$21.43

18

LEVER, THROTTLE

53145-HA0-770

$21.43

19

SPRING, THROTTLE RETURN

53146-HA0-000

$4.20

20

HOLDER, THROTTLE CASE

53147-HC3-000

$8.38

21

BUSH, THROTTLE PIVOT

53148-HA0-000

$7.45

22

GRIP, HANDLE

53165-958-010

$12.02

23

GUARD, HANDLE END

53167-958-680

$5.96

24

BRACKET, L. HANDLE LEVER

53172-HP1-600

$37.23

25

PLATE, CLUTCH SWITCH

53173-HM3-A00

$5.81

26

COVER, L. HANDLE LEVER

53177-HM3-000

$9.54

27

LEVER, L. HANDLEBAR (COO) This part replaces 53178-HP1-000.

53178-HP1-305

$32.00

27

LEVER, L. HANDLEBAR (COO)

53178-HP1-305

$32.00

28

ARM ASSY., PARKING

53180-HM3-000

$37.70

29

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.22

30

BOLT, WIRE ADJUSTING

53192-268-000

$6.08

31

LEVER, PARKING BRAKE LOCK

53192-965-000

$19.38

32

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.78

33

BOLT, HANDLE LEVER PIVOT

90115-HB5-671

$4.47

34

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.80

35

NUT, FIXING

90321-315-670

$6.80

36

WASHER, LOCK (6MM)

90501-HA0-000

$2.80

37

WASHER (9X20)

90504-HA0-000

$2.07

38

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

39

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.66

39

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.66

40

OIL SEAL (6X11X4) (ARAI)

91231-891-003

$2.12

41

O-RING (7.7X1.9) (NOK)

91311-PA9-004

$2.89

42

O-RING (25.8X2.4)

91326-HW1-671

$2.26

43

GASKET, THROTTLE CASE

91532-HA0-020

$5.73

44

SCREW, PAN (3X10)

93500-03010-0H

$0.75

45

SCREW, PAN (4X16)

93500-04016-0G

$0.75

46

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

47

SCREW, PAN (5X14)

93500-05014-0G

$3.32

48

SCREW-WASHER (5X25)

93892-05025-07

$0.99

48

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$0.99

49

SCREW, TAPPING (3X10)

93901-22220

$0.81

50

NUT, HEX. (6MM)

94002-06000-0S

$1.19

51

NUT, FLANGE (6MM)

94050-06000

$0.59

52

WASHER, PLAIN (3MM)

94101-03800

$0.90

53

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

54

BOLT, FLANGE (6X22)

96001-06022-00

$1.13
