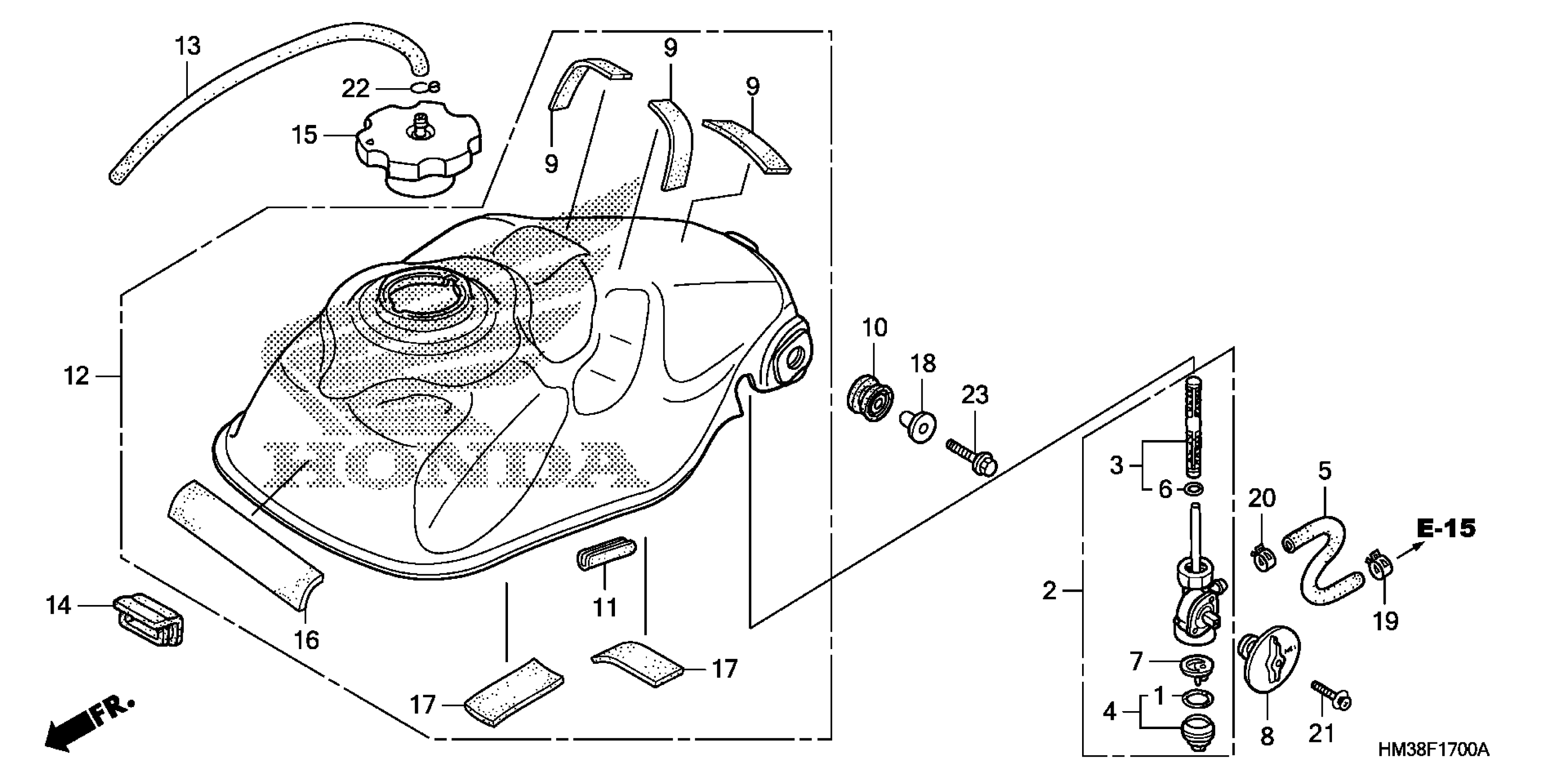

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$4.93

2

PETCOCK ASSY.

16950-HM3-A61

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-HM3-A61

Unavailable

4

CUP SET, FUEL STRAINER

16953-GT4-305

$22.34

5

TUBE, FUEL

16956-HM3-A70

Unavailable

6

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.80

6

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.80

7

FILTER, CUP

16959-471-831

$8.61

8

LEVER, PETCOCK *NH1* (BLACK)

16963-HM3-A60ZA

Unavailable

9

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.54

10

RUBBER, FUEL TANK SETTING

17513-HA5-000

$8.43

11

TRIM, FUEL TANK

17516-HC0-000

$4.56

12

TANK ASSY., FUEL *NH1* (BLACK)

17520-HM3-A60ZA

Unavailable

13

TUBE, FUEL CAP BREATHER

17521-HB5-670

$8.61

14

RUBBER, FR. TANK MOUNTING

17611-HC0-000

Unavailable

15

FUEL FILL CAP (TOYOSHA)

17620-HC0-003

Unavailable

16

RUBBER, RR. BATTERY

50383-HC4-750

$6.71

17

TAPE, COVER

64382-MM5-300

$2.44

18

WASHER, TANK SETTING

90505-HM3-A60

Unavailable

19

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.13

20

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.91

21

SCREW-WASHER (5X25)

93893-05025-07

$1.29

22

CLIP, TUBE (C9)

95002-50000

$1.16

23

BOLT, FLANGE (8X30)

95701-08030-00

$1.04
