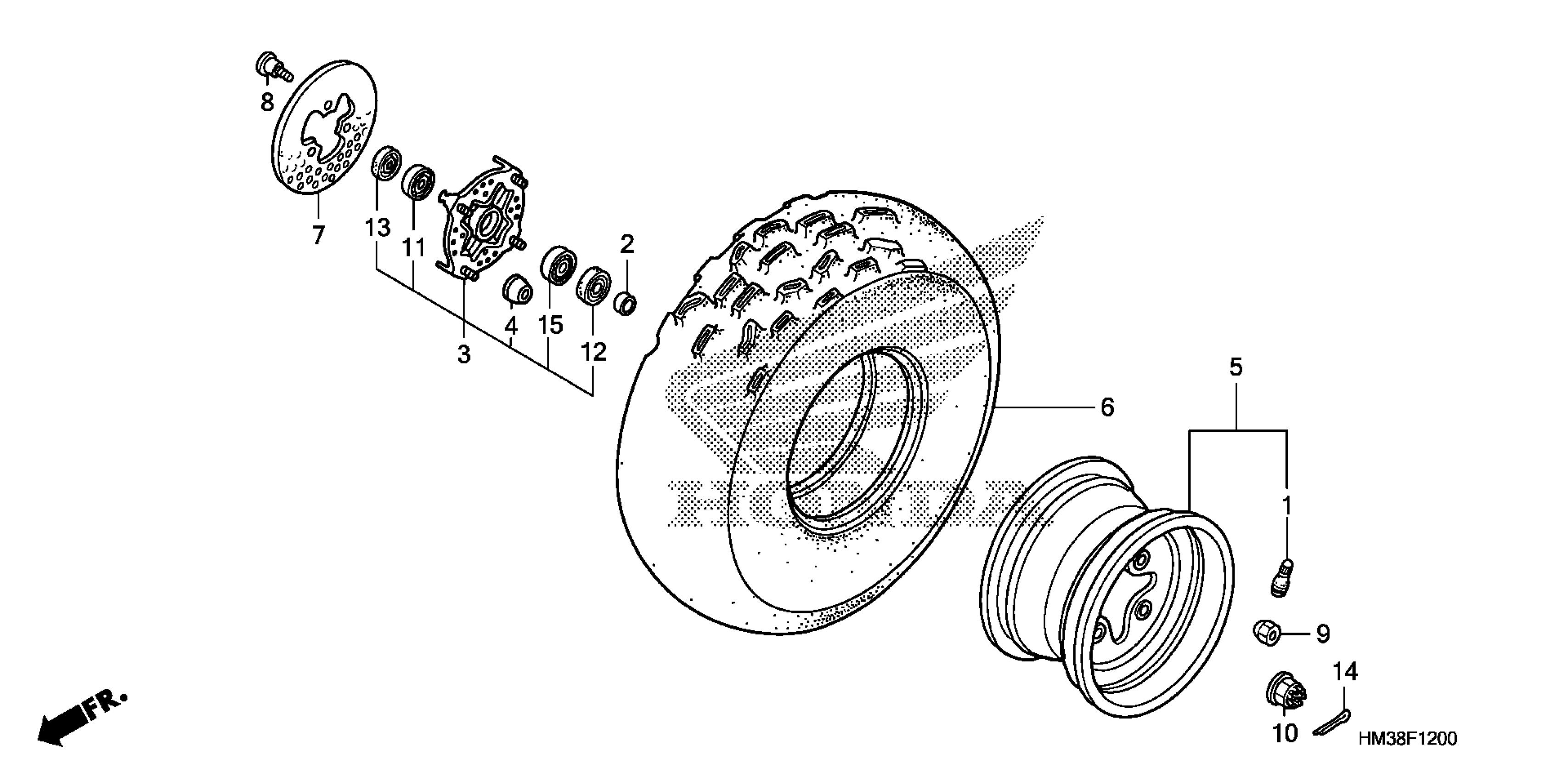

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 FRONT WHEEL Diagram

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

COLLAR, FR. WHEEL SIDE

44312-HB3-000

$7.39

HUB ASSY., FR. WHEEL

44600-HM3-900

Unavailable

COLLAR, FR. WHEEL DISTANCE

44620-HB9-740

$14.04

WHEEL SET, FR. This part replaces 44650-HM3-A60.

44650-HP1-U00

$462.18

WHEEL SET, FR.

44650-HP1-U00

$462.18

TIRE, WHEEL (AT22X7-10) (PV102) (OHTSU) (NOT AVAILABLE)

44711-HC0-671

Unavailable

DISK, FR. BRAKE (SUNSTAR)

45251-HC0-000

Unavailable

BOLT, DISK (8X22)

90105-MK5-010

$4.94

NUT, WHEEL CLIP

90304-HA2-003

$5.62

NUT, AXLE (14MM)

90309-HC4-000

$15.40

BEARING, RADIAL BALL (6004)

91053-HC4-000

$19.94

BEARING, RADIAL BALL (6004) This part replaces 91053-HC4-003.

91053-HC4-000

$19.94

DUST SEAL (35X20X7) (ARAI)

91257-HB3-003

$8.80

DUST SEAL (28X42X6)

91257-VM0-004

$11.19

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BEARING, RADIAL BALL (6202UU)

96150-62020-10

$14.36
