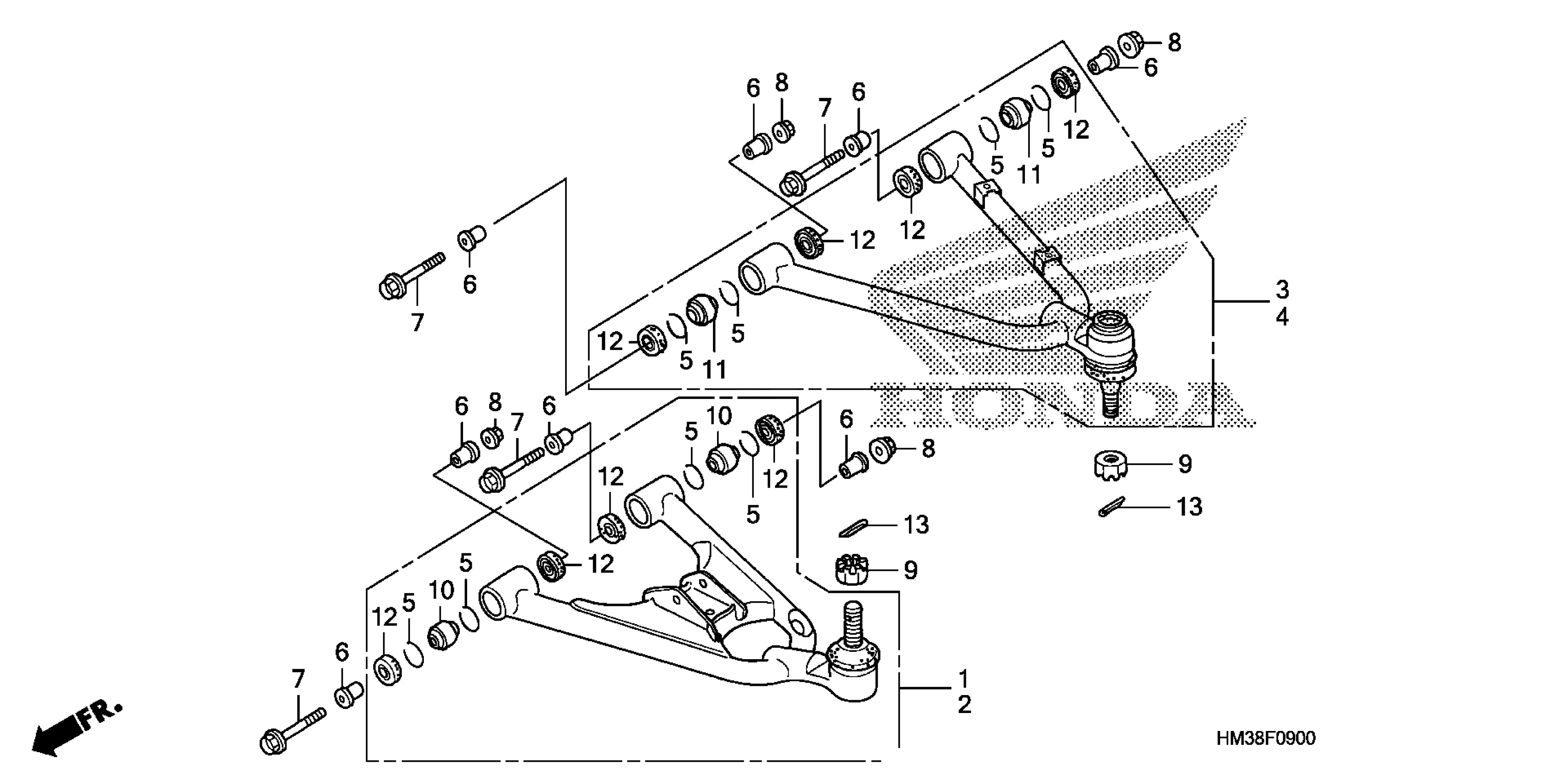

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 FRONT ARM Diagram

ARM ASSY., R. FR. (LOWER)

51350-HM3-900

$367.84

ARM ASSY., L. FR. (LOWER)

51360-HM3-900

Unavailable

ARM ASSY., R. FR. (UPPER)

51370-HM3-A60

Unavailable

ARM ASSY., L. FR. (UPPER)

51380-HM3-A60

Unavailable

RING, STOPPER

51393-HB9-670

$4.64

COLLAR, FR. ARM PIVOT

51394-HC0-000

$10.12

BOLT, FLANGE (10X62)

90183-HC0-770

$9.41

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.80

NUT, CASTLE (12MM)

90310-HB9-000

$5.63

BEARING, SPECIAL (10MM) (THOMPSON) This part replaces 91077-HB9-671.

91077-HB9-672

$34.40

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$34.40

BEARING, SPECIAL (10MM) (THOMPSON)

91077-HB9-672

$34.40

DUST SEAL, FR. ARM PIVOT (ARAI)

91265-HB9-671

Unavailable

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94
