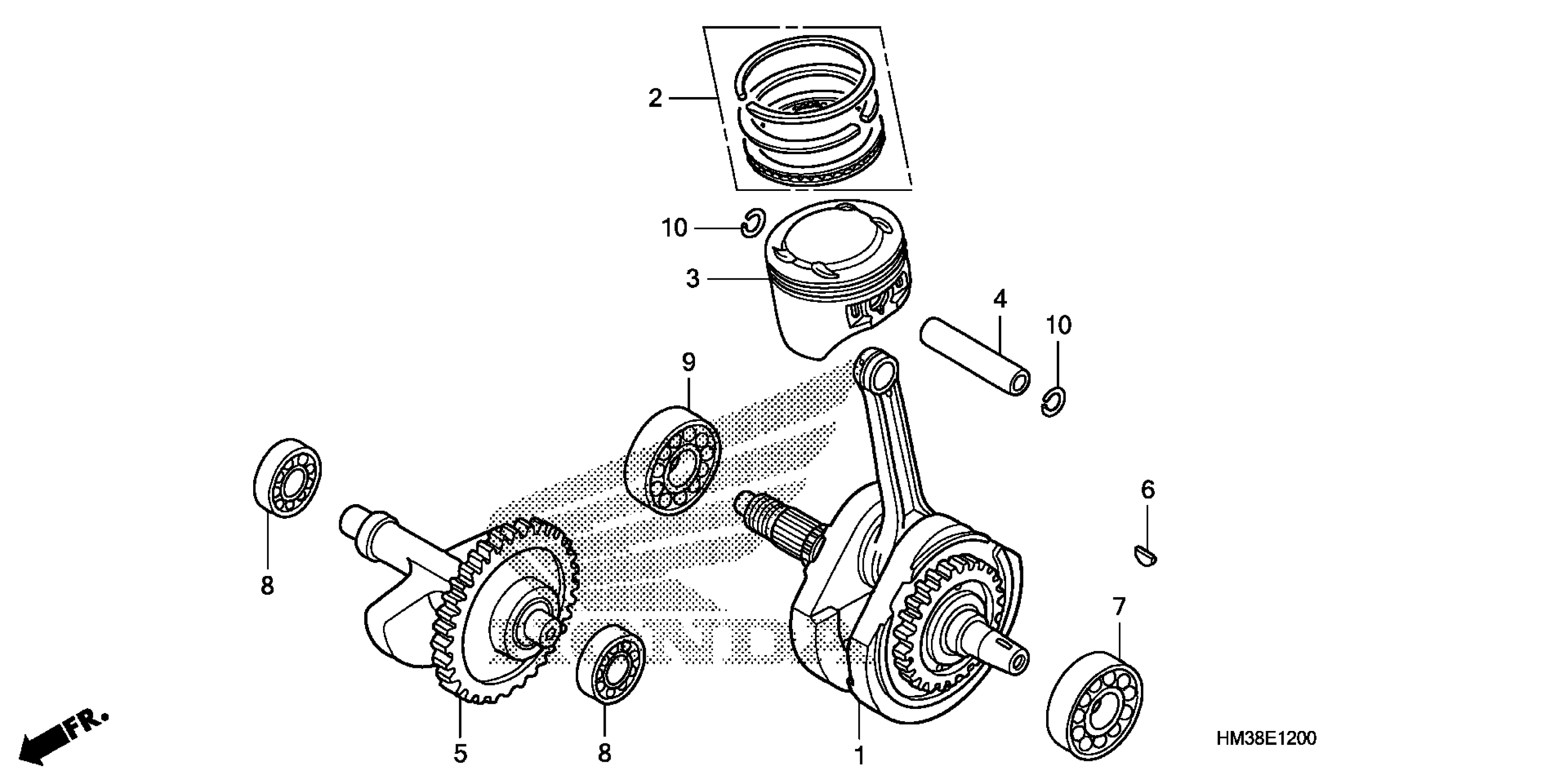

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-HM3-670

$694.77

2

RING SET, PISTON (STD) (RIKEN)

13011-HM3-671

$57.28

2

RING SET, PISTON (STD) (TEIKOKU)

13011-HM3-672

$57.28

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-HM3-671

Unavailable

2

RING SET, PISTON (0.25) (TEIKOKU) | (Optional).

13021-HM3-672

Unavailable

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-HM3-671

Unavailable

2

RING SET, PISTON (0.50) (TEIKOKU) | (Optional).

13031-HM3-672

Unavailable

2

RING SET, PISTON (0.75) (RIKEN) | (Optional).

13041-HM3-671

Unavailable

2

RING SET, PISTON (0.75) (RIKEN) | (Optional). This part replaces 13041-HM3-672.

13041-HM3-671

Unavailable

2

RING SET, PISTON (1.00) (RIKEN) | (Optional).

13051-HM3-671

Unavailable

2

RING SET, PISTON (1.00) (TEIKOKU) | (Optional).

13051-HM3-672

$57.28

3

PISTON (STD)

13101-HM3-670

$105.57

3

PISTON (0.25) | (Optional).

13102-HM3-670

Unavailable

3

PISTON (0.50) | (Optional).

13103-HM3-670

Unavailable

3

PISTON (0.75) | (Optional).

13104-HM3-670

$101.03

3

PISTON (1.00) | (Optional).

13105-HM3-670

Unavailable

4

PIN, PISTON

13111-HC0-000

$27.81

5

SHAFT, BALANCER (34T)

13420-HC4-000

Unavailable

6

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

7

BEARING, RADIAL BALL

91001-HM7-008

$56.58

8

BEARING, RADIAL BALL RSH (6203)

91003-HA7-672

$26.81

9

BEARING, RADIAL BALL (40X76X17.5)

91010-HM7-004

$71.78

10

CLIP, PISTON PIN (17MM)

94601-17000

$1.56
