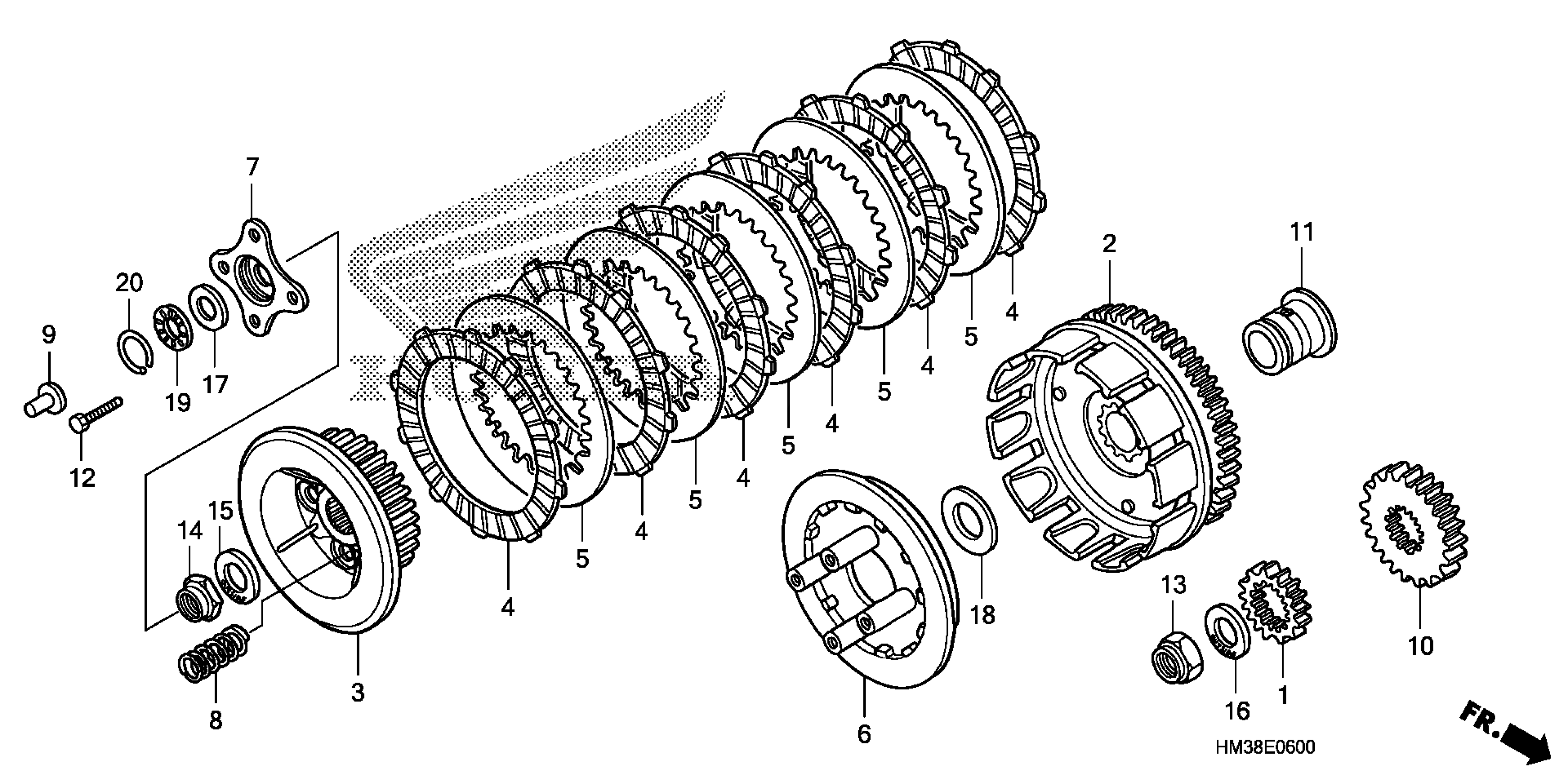

Honda TRX300XA (09) ALL-TERRAIN VEHICLE (ATV), JPN, VIN# JH2TE190-9K400001 CLUTCH Diagram

GEAR, OIL PUMP DRIVE (17T)

15130-KF0-000

Unavailable

CLUTCH OUTER

22100-HA5-010

$474.97

CENTER, CLUTCH

22120-HM3-A60

Unavailable

DISK, CLUTCH FRICTION

22201-HM3-A60

$14.88

PLATE, CLUTCH

22321-KF0-770

$14.92

PLATE, CLUTCH PRESSURE This part replaces 22350-KF0-000.

22350-KW3-000

$71.20

PLATE, CLUTCH PRESSURE

22350-KW3-000

$71.20

PLATE, CLUTCH LIFTER

22361-KF0-000

Unavailable

SPRING, CLUTCH

22401-KF0-010

$5.39

PIN, CLUTCH LIFTER

22820-HA5-670

$15.86

GEAR, PRIMARY DRIVE (24T)

23121-HA5-000

$89.48

BUSH (22MM)

23213-HA5-000

Unavailable

BOLT, HEX. (6X28)

90001-HA5-000

$4.04

NUT, LOCK (20MM)

90235-HA5-670

$11.50

NUT, LOCK (18MM)

90236-HA0-000

$10.45

WASHER, LOCK

90432-KF0-000

$9.63

WASHER, SPRING (20MM)

90432-426-000

$9.98

WASHER, THRUST (12MM) (THOMPSON)

90452-147-006

$3.97

WASHER, THRUST (22X45X0.8)

90458-KE8-000

$3.97

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97
