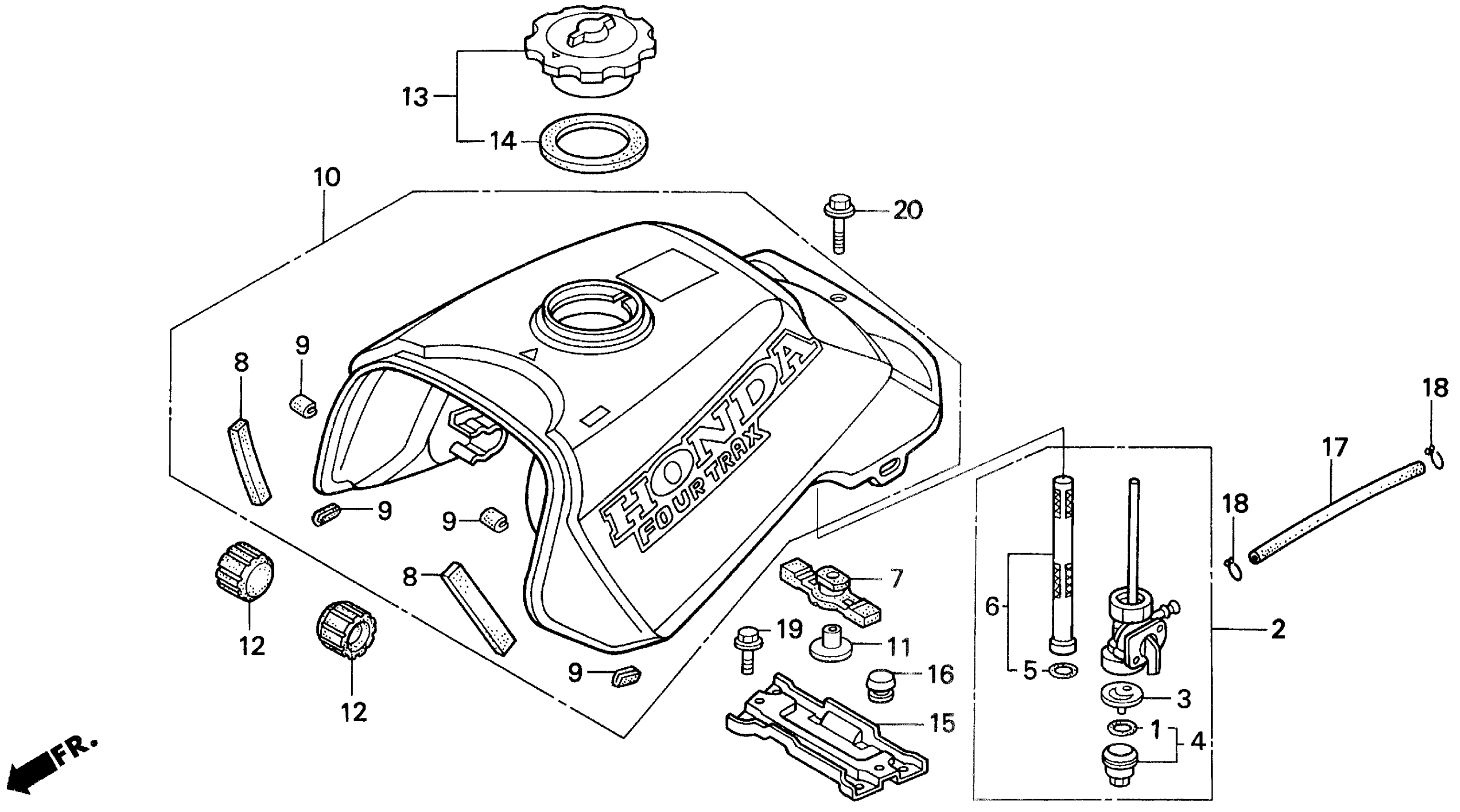

Honda TRX300FWA (99) FOURTRAX 300 4X4, USA, VIN# 478TE150-XA000001 FUEL TANK Diagram

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

PETCOCK ASSY.

16950-HC4-840

$77.37

FILTER, CUP

16959-471-831

$9.35

CUP SET, FUEL STRAINER

16953-GG2-731

$21.66

O-RING

16075-GHB-720

$2.93

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

SCREEN SET, FUEL STRAINER This part replaces 16952-HC4-840.

16952-449-751

$32.71

SCREEN SET, FUEL STRAINER

16952-449-751

$32.71

RUBBER, RR. FUEL TANK

17503-KG0-000

$20.54

RUBBER, TANK SPACER

17511-HM5-670

$11.56

TRIM, FUEL TANK

17516-HC4-000

$3.90

TANK ASSY., FUEL *G152* (WL) (ADVENTURE GREEN) (NOT AVAILABLE)

17520-HM5-A10ZA

Unavailable

TANK ASSY., FUEL *YR176* (WL) (HARVEST BEIGE) (NOT AVAILABLE)

17520-HM5-A10ZC

Unavailable

TANK ASSY., FUEL *R232* (WL) (PATRIOT RED) (SOURCE: VINTAGE PARTS INC.)

17520-HM5-A10ZD

Unavailable

COLLAR, FUEL TANK MOUNTING

17525-KC5-000

$6.72

CUSHION, FUEL TANK

17611-HM5-730

$25.54

FUEL FILL CAP (TOYOSHA)

17620-HC3-505

Unavailable

FUEL FILL CAP (TOYOSHA) This part replaces 17620-HC3-771.

17620-HC3-505

Unavailable

GASKET, FUEL FILLER CAP

17632-435-730

$9.46

PLATE, FR. CROSS

50189-HM5-670

Unavailable

RUBBER B, STOPPER

50354-HM5-730

$14.60

BULK HOSE, FUEL (7.5X8000) (7.5X210)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (8X12)

95701-08012-08

$1.80

BOLT, FLANGE (8X30)

95701-08030-08

$1.49
