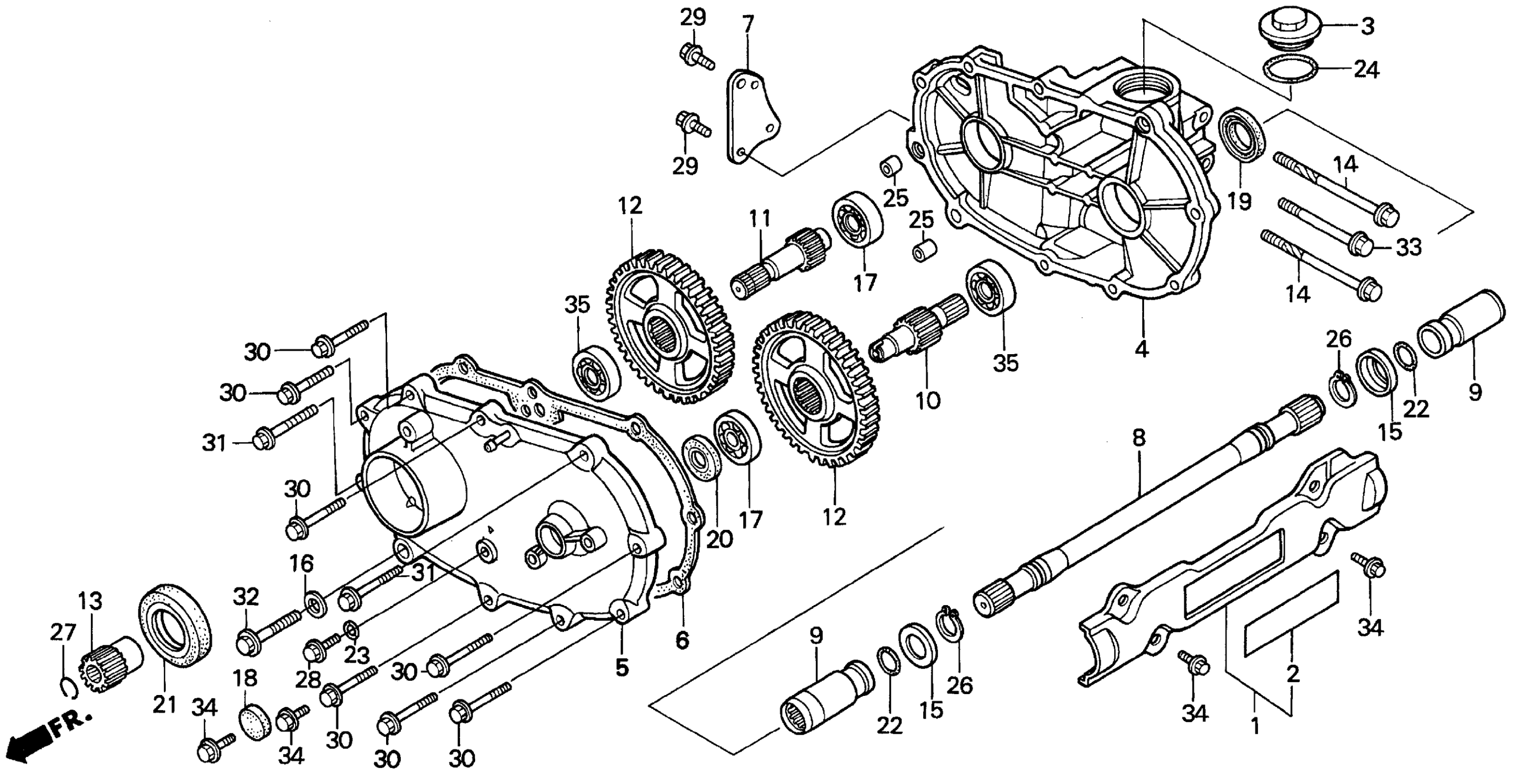

Honda TRX300FWA (97) FOURTRAX 300 4X4, USA, VIN# 478TE150-VA800001 300 FW DRIVESHAFT Diagram

#

Description
Price

1

COVER, FR. DRIVESHAFT (SOURCE: VINTAGE PARTS INC.)

11320-HM5-670

$146.77

2

EMBLEM, SHAFT COVER

11321-HM5-670

Unavailable

3

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

3

CAP, VALVE ADJ.

12361-300-000

Unavailable

3

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

4

CASE, FR. GEAR (SOURCE: VINTAGE PARTS INC.)

21501-HM5-730

Unavailable

5

COVER, FR. GEAR CASE (SOURCE: VINTAGE PARTS INC.)

21502-HM5-730

Unavailable

6

GASKET, FR. GEAR CASE (NOT AVAILABLE)

21503-HC5-900

Unavailable

7

PLATE, FR. CASE SETTING (NOT AVAILABLE)

21504-HC5-000

Unavailable

8

SHAFT, FR. DRIVE SIDE (SOURCE: VINTAGE PARTS INC.)

21601-HC5-000

$80.57

9

JOINT, FR. DRIVESHAFT This part replaces 21603-HC5-000.

21603-HM5-A10

Unavailable

9

JOINT, FR. DRIVESHAFT

21603-HM5-A10

Unavailable

10

DRIVESHAFT, FR. (SOURCE: VINTAGE PARTS INC.)

21701-HM5-730

Unavailable

11

SHAFT, FR. DRIVEN

21702-HM5-730

Unavailable

12

GEAR, FR. DRIVE (46T) (SOURCE: VINTAGE PARTS INC.)

21703-HM5-730

Unavailable

13

JOINT, FR. DRIVEN SHAFT (NOT AVAILABLE)

21704-HC5-000

Unavailable

14

BOLT, FLANGE (8X90) (NOT AVAILABLE)

90001-HC5-003

Unavailable

15

WASHER, LOCK (18MM) (NOT AVAILABLE)

90401-HC5-000

Unavailable

16

WASHER C (8MM)

90475-703-000

$1.49

17

BEARING, RADIAL BALL (6203) (KOYO)

91012-HC5-004

$21.74

18

COVER, SEAL (20X4)

91201-HA8-682

$4.43

18

COVER, SEAL (20X4) (KOYO) (NOT AVAILABLE)

91206-HC4-005

Unavailable

19

OIL SEAL (24X34X7) (ARAI)

91201-HC5-003

$7.63

19

OIL SEAL (24X34X7) (ARAI) This part replaces 91201-HC5-005.

91201-HC5-003

$7.63

20

OIL SEAL (17X27X5) (KOYO) This part replaces 91202-HC5-003.

91202-HC5-005

$3.56

20

OIL SEAL (17X27X5) (KOYO)

91202-HC5-005

$3.56

21

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-013.

91251-HC5-005

$16.83

21

OIL SEAL (38X64X11) (KOYO)

91251-HC5-005

$16.83

22

O-RING (15.2X1.5)

91301-GR0-004

$2.70

23

O-RING (5.5X1.5)

91301-216-000

$2.38

24

O-RING (30.8MM)

91302-001-020

$3.75

25

PIN, DOWEL (8X14)

94301-08140

$2.25

26

CIRCLIP (OUTER) (18MM) (NOT AVAILABLE)

94514-18000

Unavailable

27

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

30

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

31

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

32

BOLT, FLANGE (8X30)

95701-08030-00

$1.49

33

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

34

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

35

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
