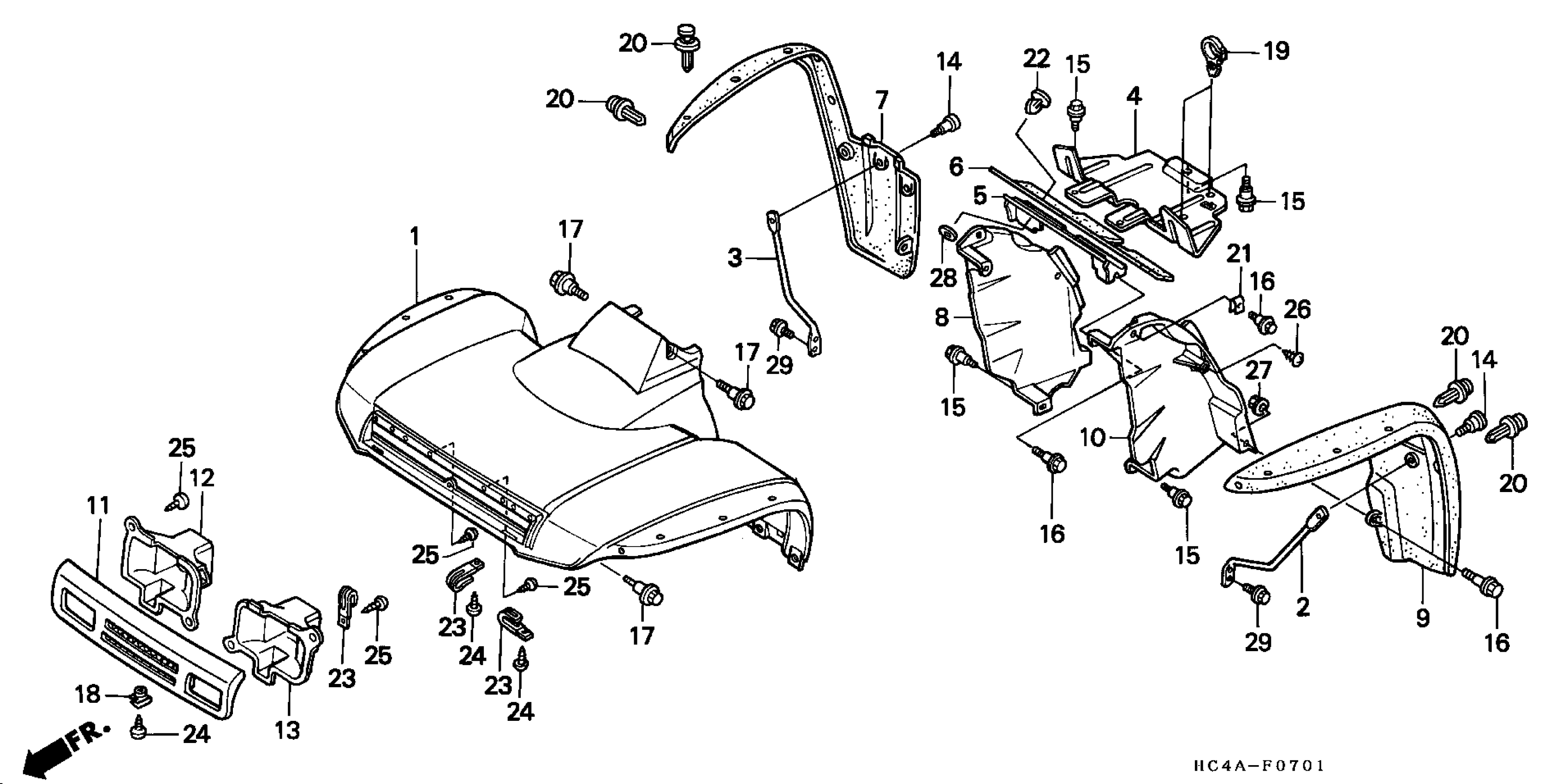

Honda TRX300FWA (92) FOURTRAX 300 4X4, USA, VIN# 478TE150-NA400001 TO 478TE150-NA411163 TRX300FWFRONT FENDER (TRX300FW) ('92) 92 Diagram

#

Description
Price

1

FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE)

61100-HC5-900ZA

Unavailable

1

FENDER, FR. *PB149* (SOUTHERN BLUE)

61100-HC5-900ZB

Unavailable

1

FENDER, FR. *G152* (ADVENTURE GREEN) (SOURCE: VINTAGE PARTS INC.)

61100-HC5-900ZC

Unavailable

2

STAY, L. FR. FENDER SUPPORT (SOURCE: VINTAGE PARTS INC.)

61101-HC5-670

Unavailable

3

STAY, R. FR. FENDER SUPPORT (SOURCE: VINTAGE PARTS INC.)

61102-HC5-670

$13.88

4

PLATE, SNORKEL (LOWER) (SOURCE: VINTAGE PARTS INC.)

61720-HC5-000

$28.72

5

PLATE, FR. SNORKEL (NOT AVAILABLE)

61730-HC5-010

Unavailable

6

PLATE, SNORKEL (UPPER) (NOT AVAILABLE)

61740-HC5-770

Unavailable

7

SPLASH GUARD, R. FR. *NH1* (BLACK)

61861-HC5-690ZA

$118.77

8

FENDER, R. FR. (INNER) (NOT AVAILABLE)

61862-HC5-900

Unavailable

9

SPLASH GUARD, L. FR. *NH1* (BLACK)

61866-HC5-690ZA

Unavailable

10

FENDER, L. FR. (INNER) (SOURCE: VINTAGE PARTS INC.)

61867-HC5-000

Unavailable

11

GRILLE, FR. *R109* (PASSION RED) This part replaces 66300-HC4-671ZA.

66300-HM4-730ZB

Unavailable

11

GRILLE, FR. *PB149* (SOUTHERN BLUE) (NOT AVAILABLE)

66300-HC4-671ZB

Unavailable

11

GRILLE, FR. *G152* (ADVENTURE GREEN) (SOURCE: VINTAGE PARTS INC.)

66300-HC4-671ZD

Unavailable

11

GRILLE, FR. *R109* (PASSION RED)

66300-HM4-730ZB

Unavailable

12

COVER, R. HEADLIGHT

66301-HC4-000

$19.48

13

COVER, L. HEADLIGHT

66302-HC4-000

$11.69

14

SCREW, SPLASH GUARD This part replaces 90101-HB3-003.

90101-HB3-004

$5.62

14

SCREW, SPLASH GUARD

90101-HB3-004

$5.62

15

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

16

BOLT, FLANGE (6MM)

90111-147-000

$2.75

17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

18

NUT, SPRING (4MM)

90302-SA4-003

$5.44

19

CLAMP, HARNESS

90652-HC4-003

$5.95

20

CLIP, SPLASH GUARD

90653-HC4-900

$1.49

21

NUT, CLIP (6MM)

90673-SB2-000

$6.96

22

CLIP, COVER (LOWER)

90685-SA5-003

$10.31

23

CLIP (4X60)

91410-KT7-000

$5.03

24

SCREW, TAPPING (4X12)

93903-24320

$1.49

25

SCREW, TAPPING (5X16)

93903-25320

$1.49

26

SCREW, TAPPING (6X16)

93904-26210

$1.49

27

NUT, FLANGE (6MM)

94050-06000

$1.49

28

WASHER, PLAIN (6MM)

94103-06800

$1.49

29

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
