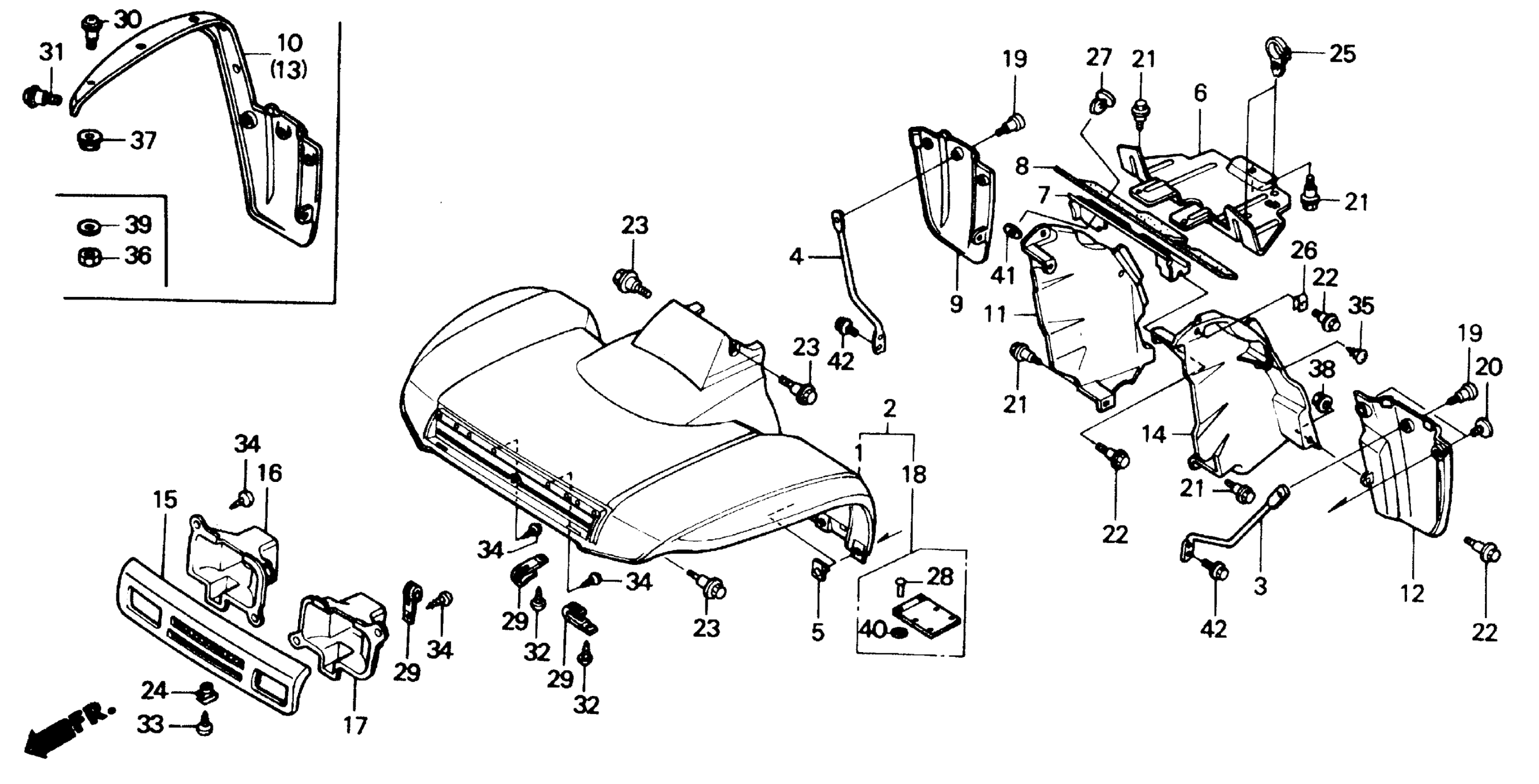

Honda TRX300FWA (91) FOURTRAX 4X4, USA, VIN# 478TE150-MA300001 TO 478TE150-MA331426 FW FRONT FENDER Diagram

#

Description
Price

2

FENDER, FR. *PB149* (SOUTHERN BLUE) This part replaces 61100-HC5-672ZA.

61100-HC5-900ZB

Unavailable

2

FENDER, FR. *PB149* (SOUTHERN BLUE)

61100-HC5-900ZB

Unavailable

2

FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 61100-HC5-672ZB.

61100-HC5-900ZA

Unavailable

3

STAY, L. FR. FENDER SUPPORT (SOURCE: VINTAGE PARTS INC.)

61101-HC5-670

Unavailable

4

STAY, R. FR. FENDER SUPPORT (SOURCE: VINTAGE PARTS INC.)

61102-HC5-670

$13.88

5

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

6

PLATE, SNORKEL (LOWER) (SOURCE: VINTAGE PARTS INC.)

61720-HC5-000

$28.72

7

PLATE, FR. SNORKEL (NOT AVAILABLE)

61730-HC5-010

Unavailable

8

PLATE, SNORKEL (UPPER) (NOT AVAILABLE)

61740-HC5-770

Unavailable

10

SPLASH GUARD, R. FR. *NH1* (BLACK)

61861-HC5-690ZA

$118.77

11

FENDER, R. FR. (INNER) (NOT AVAILABLE) This part replaces 61862-HC5-000.

61862-HC5-900

Unavailable

13

SPLASH GUARD, L. FR. *NH1* (BLACK)

61866-HC5-690ZA

Unavailable

14

FENDER, L. FR. (INNER) (SOURCE: VINTAGE PARTS INC.)

61867-HC5-000

Unavailable

15

GRILLE, FR. *R109* (PASSION RED) This part replaces 66300-HC4-671ZA.

66300-HM4-730ZB

Unavailable

15

GRILLE, FR. *R109* (PASSION RED)

66300-HM4-730ZB

Unavailable

15

GRILLE, FR. *PB149* (SOUTHERN BLUE) (NOT AVAILABLE)

66300-HC4-671ZB

Unavailable

16

COVER, R. HEADLIGHT

66301-HC4-000

$19.48

17

COVER, L. HEADLIGHT

66302-HC4-000

$11.69

18

LABEL SET, GENERAL WARNING (NOT AVAILABLE)

87504-HC4-305

Unavailable

19

SCREW, SPLASH GUARD This part replaces 90101-HB3-003.

90101-HB3-004

$5.62

19

SCREW, SPLASH GUARD

90101-HB3-004

$5.62

20

SCREW, SPLASH GUARD This part replaces 90102-HB6-000.

90120-HA7-670

$10.13

20

SCREW, SPLASH GUARD

90120-HA7-670

$10.13

21

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.24

22

BOLT, FLANGE (6MM)

90111-147-000

$2.75

23

BOLT, FLANGE (6MM)

90111-162-000

$2.89

24

NUT, SPRING (4MM)

90302-SA4-003

$5.44

25

CLAMP, HARNESS

90652-HC4-003

$5.95

26

NUT, CLIP (6MM)

90673-SB2-000

$6.96

27

CLIP, COVER (LOWER)

90685-SA5-003

$10.31

28

RIVET, POP (3.2)

90841-HF1-670

$1.62

29

CLIP (4X60)

91410-KT7-000

$5.03

30

SCREW, PAN (5X10.5)

91508-GN2-000

$3.16

31

SCREW, PAN (5X12.5)

91508-GS9-000

Unavailable

32

SCREW, TAPPING (4X12)

93903-24320

$1.49

33

SCREW, TAPPING (4X12)

93903-24320

$1.49

34

SCREW, TAPPING (5X16)

93903-25320

$1.49

35

SCREW, TAPPING (6X16)

93904-26210

$1.49

37

NUT, FLANGE (5MM)

94050-05080

$1.49

38

NUT, FLANGE (6MM)

94050-06000

$1.49

40

WASHER, PLAIN (3MM)

94103-03800

$1.49

41

WASHER, PLAIN (6MM)

94103-06800

$1.49

42

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
