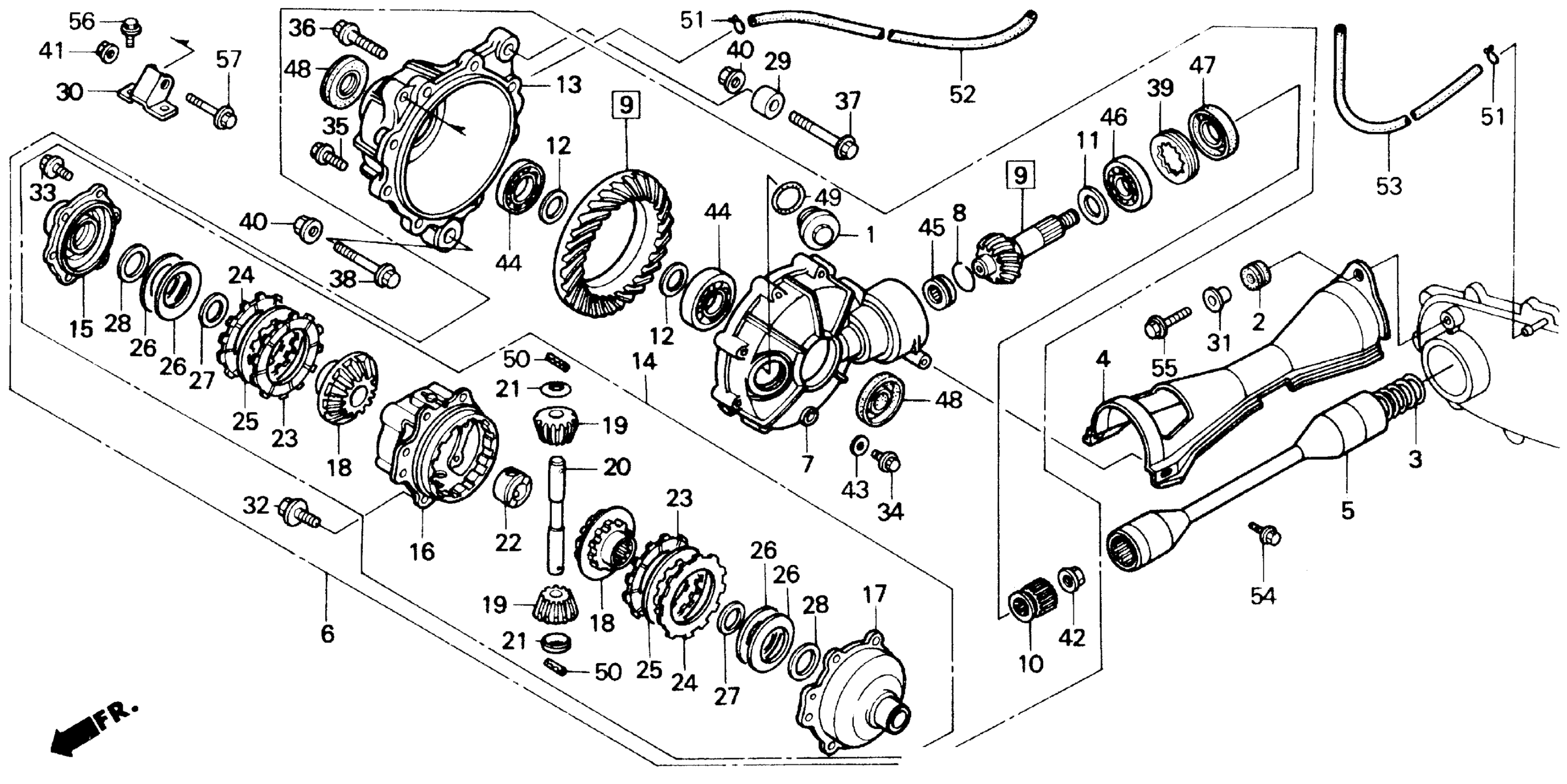

Honda TRX300FWA (90) FOURTRAX 4X4, USA, VIN# 478TE150-LA200011 TO 478TE150-LA218919 FW FRONT FINAL GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

3

SPRING, PROPELLER SHAFT

40215-HC5-000

Unavailable

4

COVER, FR. PROPELLER SHAFT (NOT AVAILABLE)

40301-HC5-000

Unavailable

5

SHAFT ASSY., FR. PROPELLER (NOT AVAILABLE)

40400-HC5-000

Unavailable

6

GEAR ASSY., FR. FINAL (NOT AVAILABLE) This part replaces 41400-HC5-770.

41400-HC5-751

Unavailable

7

CASE, FR. FINAL GEAR This part replaces 41401-HC5-770.

41401-HC5-771

Unavailable

8

RING, STOPPER

41405-HA7-670

$2.97

9

GEAR SET, FINAL (NOT AVAILABLE)

41410-HC5-000

Unavailable

10

JOINT, PINION (NOT AVAILABLE)

41411-HA0-000

Unavailable

11

SHIM A, PINION GEAR (1.82)

41451-HA0-000

$8.03

11

SHIM B, PINION GEAR (1.88)

41452-HA0-000

Unavailable

11

SHIM C, PINION GEAR (1.94)

41453-HA0-000

$6.70

11

SHIM D, PINION GEAR (2.00)

41454-HA0-000

$8.03

11

SHIM E, PINION GEAR (2.06)

41455-HA0-000

Unavailable

11

SHIM F, PINION GEAR (2.12)

41456-HA0-000

$6.26

11

SHIM G, PINION GEAR (2.18)

41457-HA0-000

Unavailable

12

SHIM A, DIFFERENTIAL CASE (0.50)

41631-HC5-000

$12.43

12

SHIM B, DIFFERENTIAL CASE (0.55)

41632-HC5-000

$11.90

12

SHIM C, DIFFERENTIAL CASE (0.60)

41633-HC5-000

$11.90

12

SHIM D, DIFFERENTIAL CASE (0.65)

41634-HC5-000

$11.90

12

SHIM E, DIFFERENTIAL CASE (0.70)

41635-HC5-000

$11.90

12

SHIM F, DIFFERENTIAL CASE (0.75)

41636-HC5-000

$11.90

12

SHIM G, DIFFERENTIAL CASE (0.80)

41637-HC5-000

$11.90

12

SHIM H, DIFFERENTIAL CASE (0.85)

41638-HC5-000

$11.90

12

SHIM I, DIFFERENTIAL CASE (0.90)

41639-HC5-000

$11.90

12

SHIM J, DIFFERENTIAL CASE (0.95)

41640-HC5-000

$11.90

12

SHIM K, DIFFERENTIAL CASE (1.00)

41641-HC5-000

$12.43

12

SHIM L, DIFFERENTIAL CASE (1.05)

41642-HC5-000

$11.90

12

SHIM M, DIFFERENTIAL CASE (1.10)

41643-HC5-000

$11.90

12

SHIM N, DIFFERENTIAL CASE (1.15)

41644-HC5-000

$12.43

12

SHIM O, DIFFERENTIAL CASE (1.20)

41645-HC5-000

$11.90

12

SHIM P, DIFFERENTIAL CASE (1.25)

41646-HC5-000

$11.90

12

SHIM Q, DIFFERENTIAL CASE (1.30)

41647-HC5-000

$11.90

12

SHIM R, DIFFERENTIAL CASE (1.35)

41648-HC5-000

$11.90

12

SHIM S, DIFFERENTIAL CASE (1.40)

41649-HC5-000

$11.90

12

SHIM T, DIFFERENTIAL CASE (1.45)

41650-HC5-000

$11.90

12

SHIM U, DIFFERENTIAL CASE (1.50)

41651-HC5-000

$11.90

12

SHIM V, DIFFERENTIAL CASE (1.55)

41652-HC5-000

$11.90

12

SHIM W, DIFFERENTIAL CASE (1.60)

41653-HC5-000

$11.90

13

COVER, FR. FINAL GEAR CASE (NOT AVAILABLE)

42321-HC5-770

Unavailable

14

DIFFERENTIAL ASSY. (SOURCE: VINTAGE PARTS INC.)

42400-HC5-020

Unavailable

15

CAP, R. DIFFERENTIAL CASE (NOT AVAILABLE)

42411-HC5-010

Unavailable

16

CASE, DIFFERENTIAL (SOURCE: VINTAGE PARTS INC.)

42421-HC5-000

Unavailable

17

CAP, L. DIFFERENTIAL CASE (SOURCE: VINTAGE PARTS INC.)

42422-HC5-010

Unavailable

18

GEAR, DIFFERENTIAL SIDE

42431-HC5-000

Unavailable

19

PINION, DIFFERENTIAL (10T) (SOURCE: VINTAGE PARTS INC.)

42433-HC5-000

Unavailable

20

SHAFT, DIFFERENTIAL PINION (NOT AVAILABLE)

42434-HA7-670

Unavailable

21

WASHER, DIFFERENTIAL PINION SIDE (SOURCE: VINTAGE PARTS INC.)

42435-HA7-671

Unavailable

22

COLLAR, DIFFERENTIAL CENTER (NOT AVAILABLE)

42436-HA7-670

Unavailable

23

DISK A, DIFFERENTIAL CLUTCH FRICTION

42532-HA7-671

Unavailable

24

DISK B, DIFFERENTIAL CLUTCH FRICTION

42533-HA7-671

Unavailable

25

PLATE, DIFFERENTIAL CLUTCH

42534-HA7-671

Unavailable

26

SPRING, DIFFERENTIAL CLUTCH CONED

42535-HC5-000

Unavailable

27

WASHER (32X26X0.6) (NOT AVAILABLE)

42538-HA7-771

Unavailable

28

SEAT A, DIFFERENTIAL CLUTCH SPRING (1.00) (SOURCE: VINTAGE PARTS INC.)

42541-HA7-671

$10.25

28

SEAT B, DIFFERENTIAL CLUTCH SPRING (1.20) (SOURCE: VINTAGE PARTS INC.)

42542-HA7-671

$10.42

28

SEAT C, DIFFERENTIAL CLUTCH SPRING (1.40) (SOURCE: VINTAGE PARTS INC.)

42543-HA7-671

$10.20

28

SEAT D, DIFFERENTIAL CLUTCH SPRING (1.60) (SOURCE: VINTAGE PARTS INC.)

42544-HA7-671

Unavailable

28

SEAT E, DIFFERENTIAL CLUTCH SPRING (1.80) (SOURCE: VINTAGE PARTS INC.)

42545-HA7-671

Unavailable

29

COLLAR, FR. ENGINE HANGER

50304-KS3-900

$9.13

30

BRACKET, FR. GEAR CASE (NOT AVAILABLE)

50350-HC5-000

Unavailable

31

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

31

COLLAR, FR. FENDER (WHITE)

61104-428-010

$4.42

31

COLLAR, FR. FENDER (BLACK)

61104-428-730

$4.21

32

BOLT, UBS (8X17) This part replaces 90101-HA7-670.

90101-HN2-680

$4.30

32

BOLT, UBS (8X17)

90101-HN2-680

$4.30

33

BOLT, TORX (8X14)

90105-HC5-000

$4.80

34

BOLT, SEALING (8MM)

90109-371-000

$2.58

35

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

36

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

37

BOLT, FLANGE (10X62)

90151-HC5-000

$7.99

38

BOLT, FLANGE (10X48)

90154-HC5-000

$8.80

39

NUT, LOCK (60MM)

90244-HA0-000

$37.87

40

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

41

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

41

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

42

NUT, HEX. (16MM)

90381-HA0-000

$7.88

43

GASKET (8MM)

90471-580-000

$2.92

44

BEARING, RADIAL BALL (29X52X12) (NTN)

91052-HC5-003

$36.26

44

BEARING, RADIAL BALL (29X52X12) (KOYO)

91052-HC5-004

$34.18

45

BEARING, NEEDLE (13X25.5X13) (TOYO) (NOT AVAILABLE) This part replaces 91053-HA7-772.

91053-HC5-003

Unavailable

45

BEARING, NEEDLE (13X25.5X13) (TOYO) (NOT AVAILABLE)

91053-HC5-003

Unavailable

46

BEARING, RADIAL BALL (22X56X16)

91063-HC4-771

Unavailable

47

OIL SEAL (38X64X11) (KOYO) This part replaces 91251-HA0-013.

91251-HC5-005

$16.83

47

OIL SEAL (38X64X11) (KOYO)

91251-HC5-005

$16.83

48

OIL SEAL (22X48X7) (ARAI)

91252-HC5-003

$9.38

49

O-RING (30.8MM)

91302-001-020

$3.75

50

PIN, SPRING (4X22)

94305-40222

$1.83

51

CLIP, TUBE (B7)

95002-02070

$1.80

52

BULK HOSE, VACUUM (3.5X1000) (3.5X700)

95005-35001-20M

$9.67

53

BULK HOSE, VACUUM (3.5X1000) (3.5X765)

95005-35001-20M

$9.67

54

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

55

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

56

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

57

BOLT, FLANGE (8X30)

95701-08030-00

$1.49
