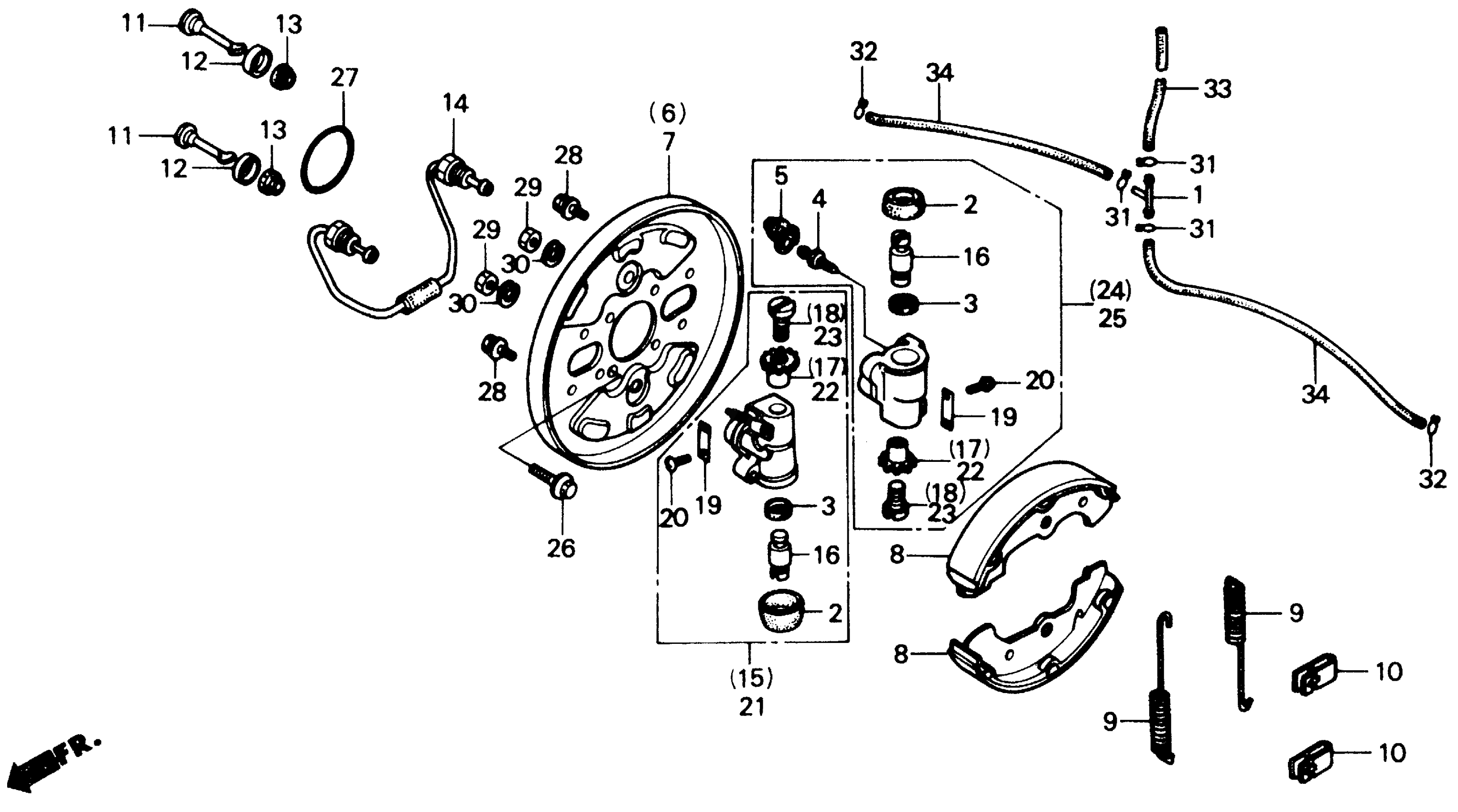

Honda TRX300FWA (88) FOURTRAX 300 4X4, JPN, VIN# JH3TE150-JK000018 TO JH3TE150-JK026823 FW FRONT BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06450-HC5-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 451A0-HC5-670.

06450-HC5-405

Unavailable

1

JOINT, TUBE This part replaces 38581-671-003.

38581-679-003

$13.22

1

JOINT, TUBE

38581-679-003

$13.22

2

COVER, DUST

43315-SN4-003

$4.95

2

COVER, DUST This part replaces 43315-671-631.

43315-SN4-003

$4.95

3

CUP, PISTON

43341-602-003

$4.91

4

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

5

CAP, BLEEDER

43353-461-771

$4.70

6

PLATE, R. BACK (NISSIN) (NOT AVAILABLE)

45110-HA7-651

Unavailable

7

PLATE, L. BACK (NISSIN) (NOT AVAILABLE)

45120-HA7-651

Unavailable

8

SHOE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45151-HC5-006

Unavailable

9

SPRING, BRAKE This part replaces 45171-HA7-671.

45171-HM5-A81

$2.59

9

SPRING, BRAKE

45171-HM5-A81

$2.59

10

SPRING, SHOE CLAMP This part replaces 45172-SA0-003.

45172-S04-003

$1.59

10

SPRING, SHOE CLAMP

45172-S04-003

$1.59

11

PIN, TENSION

45175-HC4-006

$3.71

12

CAP, PIN (NISSIN) This part replaces 45176-HA7-651.

45176-HM5-A81

$6.70

12

CAP, PIN (NISSIN)

45176-HM5-A81

$6.70

13

SEAL, PIN (NISSIN)

45177-HA7-651

$6.41

14

PIPE, FR. WHEEL CYLINDER

45181-HC5-006

$17.77

15

CYLINDER ASSY. A, R. FR. WHEEL

45310-HC5-006

$29.57

16

PISTON

45314-HC5-006

$16.54

17

NUT, R. ADJUSTER

45316-VM0-003

$7.90

18

SCREW, R. ADJUSTING

45317-634-013

$5.16

19

LOCK, SPRING

45318-HA7-671

$5.47

20

SCREW-WASHER (4X6)

45319-634-003

$2.26

21

CYLINDER ASSY. A, L. FR. WHEEL

45330-HC5-006

$27.41

22

NUT, L. ADJUSTER

45336-VM0-003

$8.25

23

SCREW, L. ADJUSTING

45337-634-013

$5.39

24

CYLINDER ASSY. B, R. FR. WHEEL This part replaces 45350-HC5-006.

45350-HC5-505

$100.25

24

CYLINDER ASSY. B, R. FR. WHEEL

45350-HC5-505

$100.25

25

CYLINDER ASSY. B, L. FR. WHEEL This part replaces 45370-HC5-006.

45370-HC5-505

Unavailable

25

CYLINDER ASSY. B, L. FR. WHEEL

45370-HC5-505

Unavailable

26

BOLT, FLANGE (8X20)

90115-HA7-651

$4.35

27

O-RING (64.6X1.3) (NOT AVAILABLE)

91357-HA7-651

Unavailable

28

BOLT-WASHER (6X12)

93402-06012-08

$1.48

28

BOLT-WASHER (6X12) This part replaces 93492-06012-08.

93402-06012-08

$1.48

29

NUT, HEX. (8MM)

94001-08000-0S

$1.19

29

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.19

29

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.19

29

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.19

30

WASHER, SPRING (8MM)

94111-08800

$0.90

31

CLIP, TUBE (B7)

95002-02070

$1.59

32

CLIP, TUBE (C6.5)

95002-35000

$0.68

33

BULK HOSE, VACUUM (3.5X1000) (3.5X560)

95005-35001-30M

$7.74

34

BULK HOSE, VACUUM (3.5X1000) (3.5X600) | Use from Frame SN JK006734

95005-35001-30M

$7.74

34

BULK HOSE, VACUUM (3.5X1000) (3.5X620) | Use up to Frame SN JK006733

95005-35001-30M

$7.74
