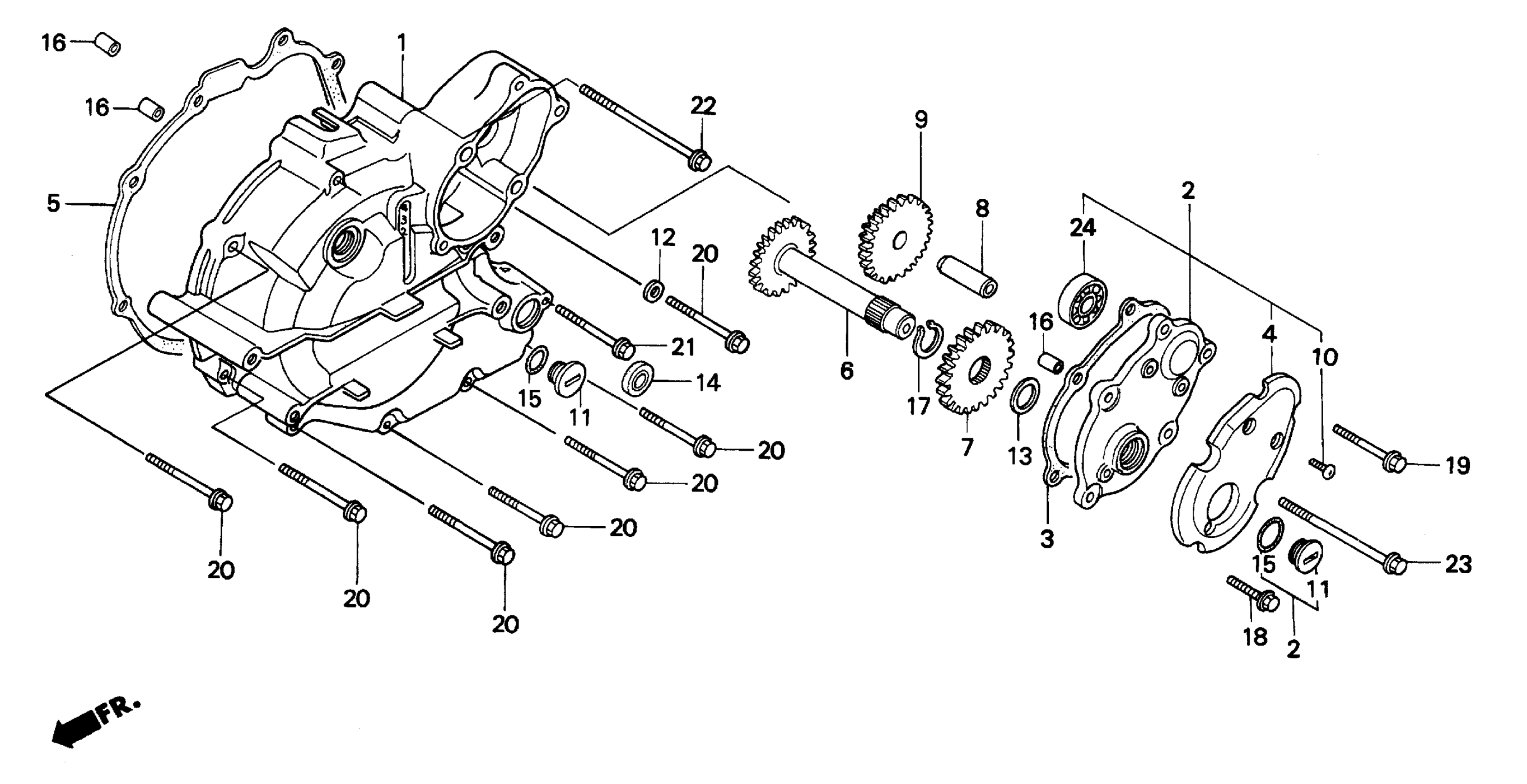

Honda TRX300FWA (00) FOURTRAX 4X4, USA, VIN# 478TE150-YA100001 LEFT CRANKCASE COVER (2) Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-HM5-A80

Unavailable

2

COVER, STARTING GEAR

11350-HC5-000

Unavailable

3

GASKET, STARTING GEAR COVER

11356-HC5-741

$5.66

4

PROTECTOR, STARTING GEAR COVER

11357-HC4-000

Unavailable

5

GASKET, L. CRANKCASE COVER

11395-HC5-740

$17.46

6

SHAFT, STARTER REDUCTION

28130-HC4-000

Unavailable

7

GEAR C, STARTER REDUCTION (25T)

28131-HA0-770

Unavailable

8

SHAFT A, STARTER REDUCTION

28133-HA0-770

$11.95

9

GEAR, STARTER REDUCTION (43T/18T)

28140-HA0-770

Unavailable

10

SCREW, TAPPING (4X12)

90017-HA0-000

$2.59

11

CAP, ALTERNATOR This part replaces 90084-428-000.

90084-471-000

Unavailable

11

CAP, ALTERNATOR

90084-471-000

Unavailable

12

WASHER, SEALING (6MM)

90441-706-000

$1.49

13

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

14

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$6.45

14

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$6.45

15

O-RING (13.8X2.5)

91303-377-000

$3.42

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

CIRCLIP (OUTER) (15MM)

94510-15000

$1.49

18

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

19

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

20

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

21

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

22

BOLT, FLANGE (6X70)

96001-06070-00

$1.95

23

BOLT, FLANGE (6X90)

96001-06090-00

$1.95

24

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
