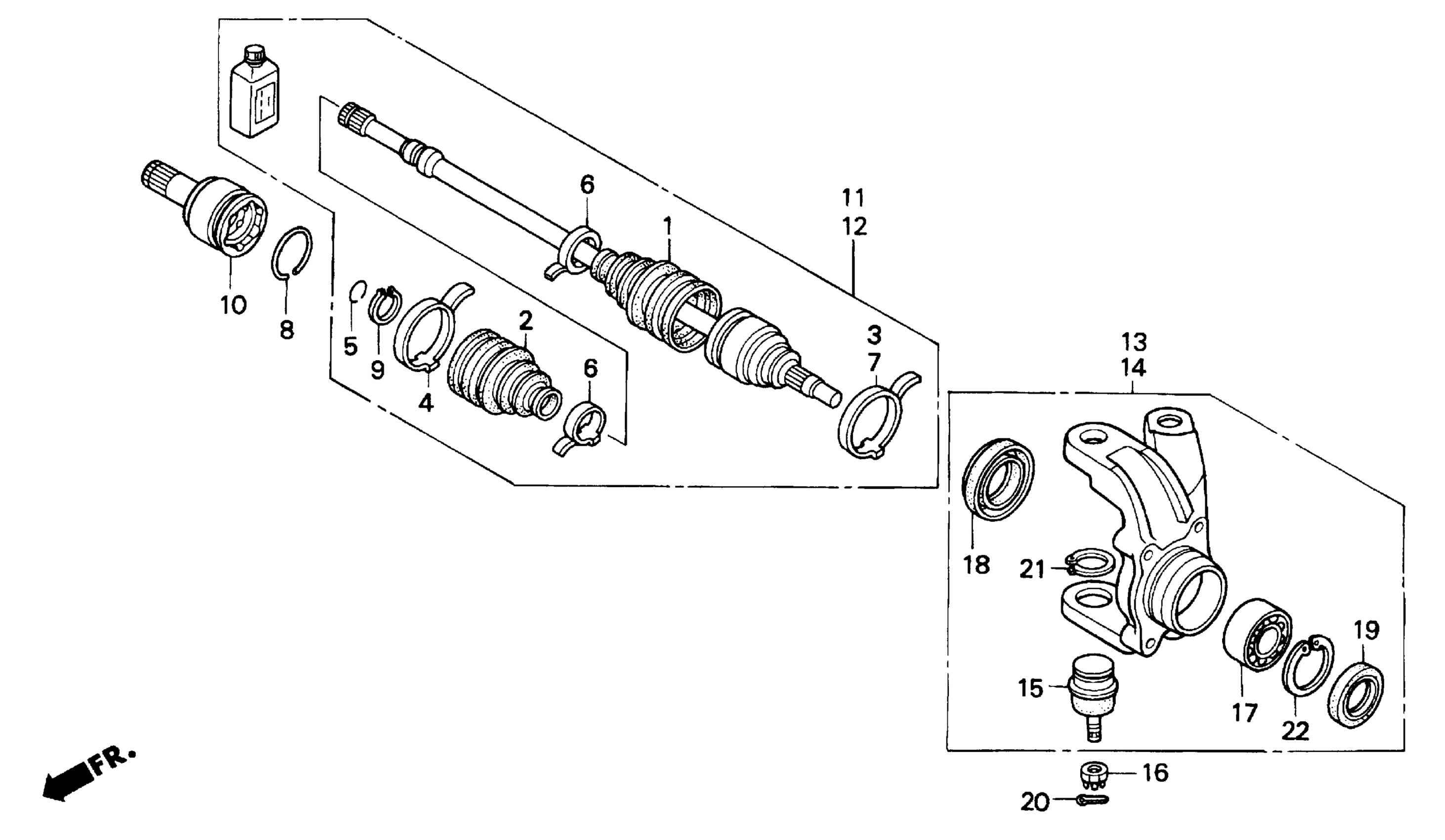

Honda TRX300FWA (00) FOURTRAX 4X4, USA, VIN# 478TE150-YA100001 KNUCKLE (2) Diagram

#

Description
Price

1

BOOT, OUTBOARD

42202-HC5-003

$30.40

2

BOOT, INBOARD

42203-HC5-003

$34.03

3

BAND A

42204-HC5-003

$11.53

4

BAND B

42205-HC5-003

$7.60

5

RING, SNAP

42206-HA7-671

$1.49

6

BAND C

42206-HC5-003

$7.68

7

BAND D

42207-HC5-003

$13.90

8

RING, SNAP

42208-HC5-003

$1.49

9

CIRCLIP

42209-HC5-003

$1.49

10

JOINT, INBOARD (NTN)

42220-HC5-971

Unavailable

11

SHAFT SET, R. DRIVE

42250-HC5-305

$305.63

12

SHAFT SET, L. DRIVE

42350-HC5-305

Unavailable

13

KNUCKLE ASSY., R.

51200-HM5-A80

$149.68

14

KNUCKLE ASSY., L.

51250-HM5-A80

$153.43

15

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$19.41

15

JOINT A, ARM BALL

51355-HP5-601

$19.41

16

NUT, CASTLE (12MM)

90310-HB9-000

$6.05

17

BEARING, ANGULAR (30X50X20) (TOYO)

91051-HC5-003

$70.28

18

DUST SEAL (40X58X7) This part replaces 91209-HA7-771.

91209-HN2-003

$12.18

18

DUST SEAL (40X58X7)

91209-HN2-003

$12.18

19

DUST SEAL (38X50X7)

91256-HC5-003

$10.34

20

PIN, SPLIT (3.0X18)

94201-30180

$1.49

21

CIRCLIP (OUTER) (32MM)

94514-32000

$1.49

22

CIRCLIP (INNER) (50MM)

94520-50000

$2.44
