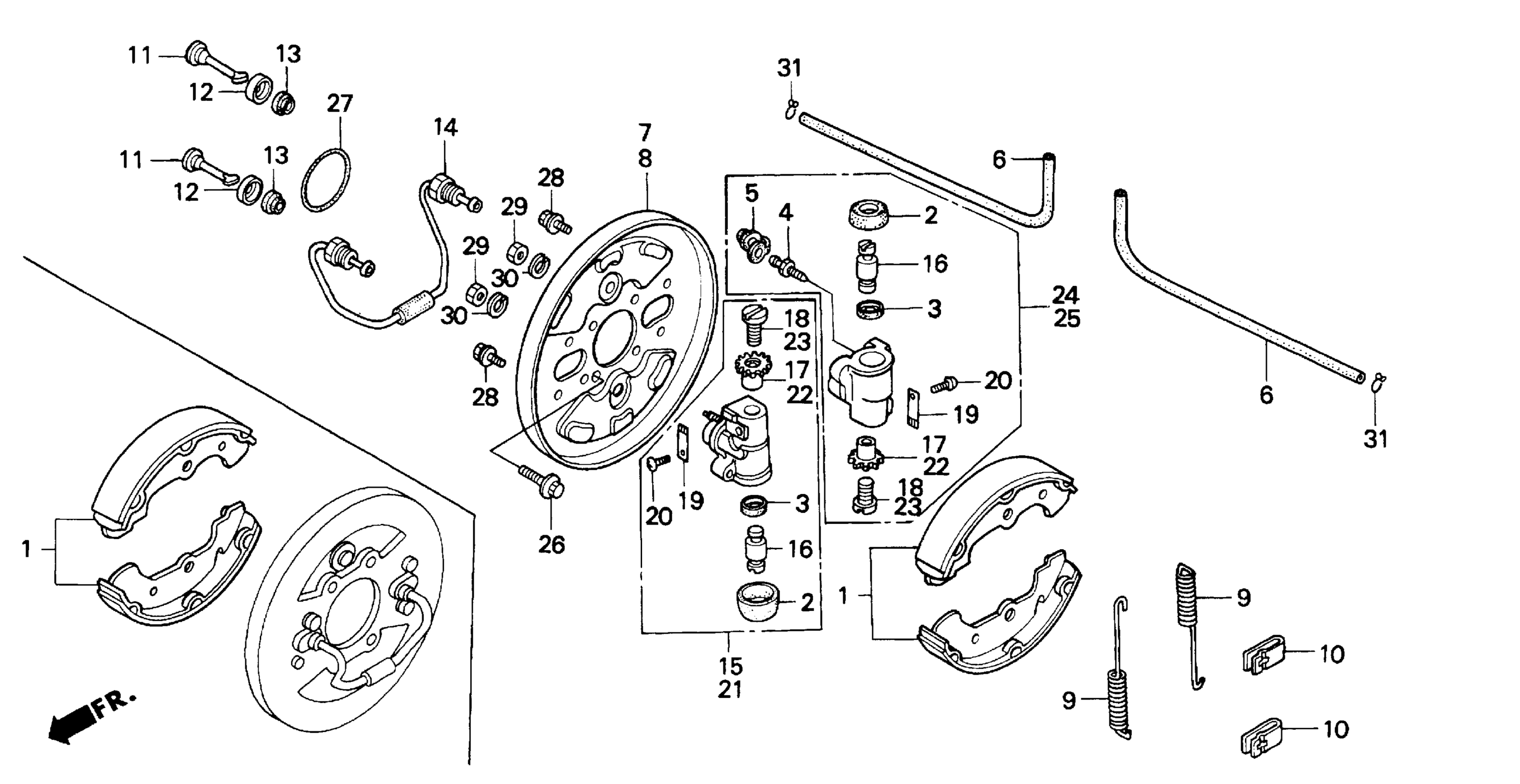

Honda TRX300FWA (00) FOURTRAX 4X4, USA, VIN# 478TE150-YA100001 FRONT BRAKE PANEL (2) Diagram

#

Description
Price

1

SHOE SET, BRAKE

06450-HN0-A00

$49.83

2

COVER, DUST

43315-SN4-003

$5.31

2

COVER, DUST This part replaces 43315-671-631.

43315-SN4-003

$5.31

3

CUP, PISTON

43341-602-003

$5.27

4

SCREW, BLEEDER (NISSIN)

43352-HC5-971

$4.22

5

CAP, BLEEDER

43353-461-771

$5.05

6

TUBE, BREATHER (3.5X111O)

44133-HC5-970

$7.34

7

PLATE, R. BACK

45110-HM5-731

Unavailable

8

PLATE, L. BACK

45120-HM5-731

Unavailable

9

SPRING, BRAKE

45171-HM5-A81

$2.92

10

SPRING, SHOE CLAMP

45172-S04-003

$1.80

11

PIN, TENSION

45175-HC4-006

$4.17

12

CAP, PIN (NISSIN)

45176-HM5-A81

$7.41

13

SEAL, PIN (NISSIN)

45177-HA7-651

$6.89

14

PIPE, FR. WHEEL CYLINDER

45181-HC5-006

$19.78

15

CYLINDER ASSY. A, R. FR. WHEEL

45310-HC5-006

$33.92

16

PISTON

45314-HC5-006

$18.16

17

NUT, R. ADJUSTER

45316-VM0-003

$9.18

18

SCREW, R. ADJUSTING

45317-634-013

$5.78

19

LOCK, SPRING

45318-HA7-671

$5.87

20

SCREW-WASHER (4X6)

45319-634-003

$2.48

21

CYLINDER ASSY. A, L. FR. WHEEL

45330-HC5-006

$33.92

22

NUT, L. ADJUSTER

45336-VM0-003

$9.74

23

SCREW, L. ADJUSTING

45337-634-013

$5.78

24

CYLINDER ASSY. B, R. FR. WHEEL (NISSIN)

45350-HC5-971

$37.09

25

CYLINDER ASSY. B, L. FR. WHEEL (NISSIN)

45370-HC5-971

$35.64

26

BOLT, FLANGE (8X20)

90115-HA7-651

$4.67

27

O-RING (64.6X1.7)

91357-HM7-003

$5.22

28

BOLT-WASHER (6X12)

93402-06012-08

$1.62

29

NUT, HEX. (8MM)

94001-08000-0S

$1.49

29

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

29

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

29

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

30

WASHER, SPRING (8MM)

94111-08800

$1.49

31

CLIP, TUBE (C6.5)

95002-35000

$1.49
