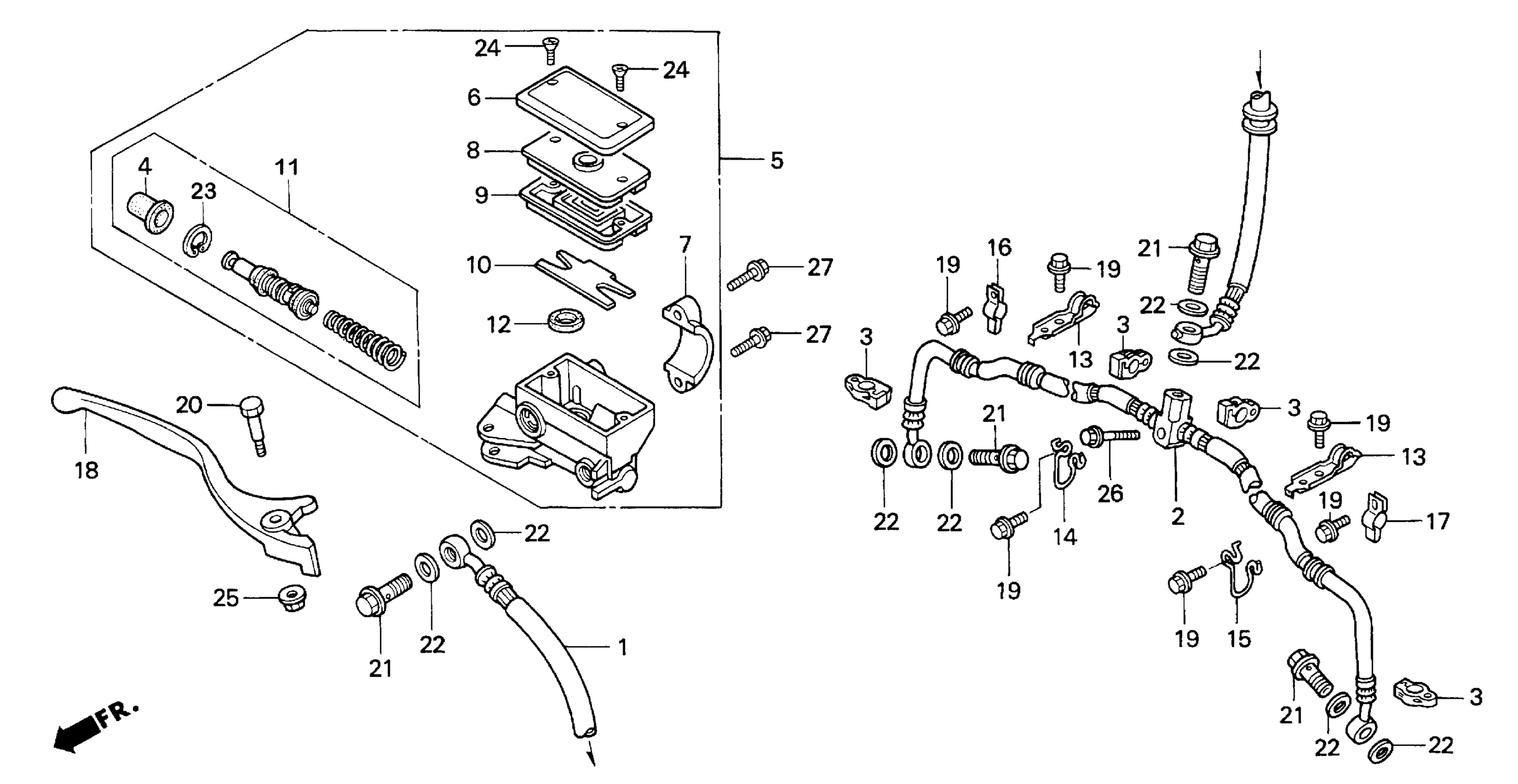

Honda TRX300FWA (00) FOURTRAX 4X4, USA, VIN# 478TE150-YA100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

HOSE A, FR. BRAKE

45126-HM5-A81

Unavailable

2

HOSE B, FR. BRAKE

45127-HM5-A81

Unavailable

3

CLIP, BRAKE HOSE

45401-HM5-850

$1.93

4

BOOT

45504-410-003

$12.16

5

MASTER CYLINDER SUB-ASSY., FR.

45510-HC5-305

$203.01

6

CAP, MASTER CYLINDER

45513-KE5-026

$41.77

7

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

8

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

9

DIAPHRAGM

45520-MA5-672

$18.13

10

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-HC5-971

$6.52

11

MASTER CYLINDER SET

45530-HC5-006

$56.98

12

SEPARATOR

46666-961-013

$8.68

13

CLAMP A, FR. BRAKE HOSE

51201-HM5-850

Unavailable

14

CLAMP B, R. FR. BRAKE HOSE

51203-HM5-A10

Unavailable

15

CLAMP B, L. FR. BRAKE HOSE

51204-HM5-A10

Unavailable

16

CLAMP, R. FR. BRAKE HOSE (C)

51208-HM5-850

Unavailable

17

CLAMP, L. FR. BRAKE HOSE (C)

51209-HM5-850

Unavailable

18

LEVER, R. HANDLE

53175-HA8-680

$29.11

19

BOLT, FLANGE (6X10)

90107-HC5-000

$2.33

20

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

21

BOLT, OIL (10X22)

90145-MS9-612

$7.54

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

CIRCLIP

90651-MA5-671

$2.66

24

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

24

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

27

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
