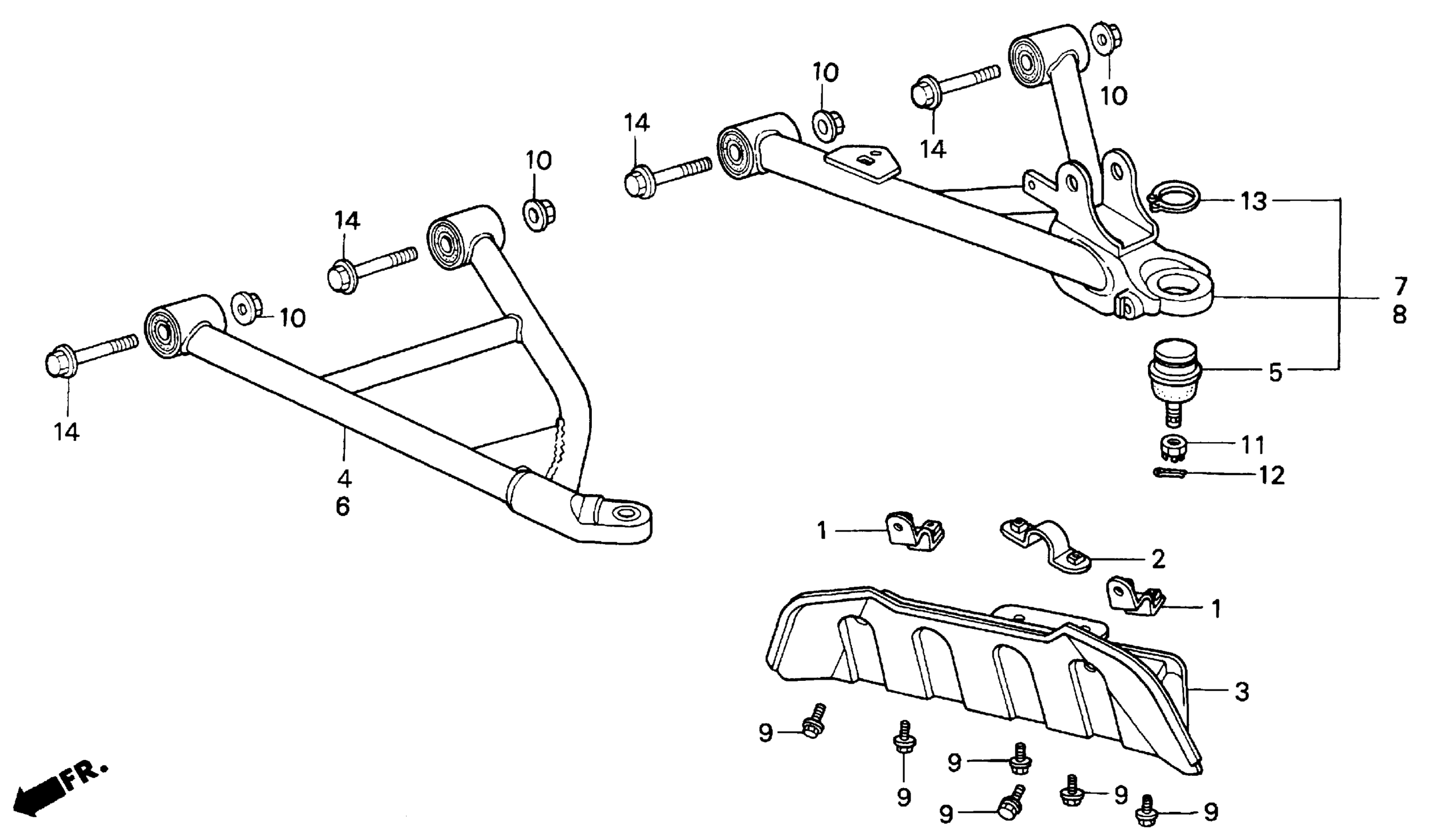

Honda TRX300FWA (00) FOURTRAX 4X4, USA, VIN# 478TE150-YA100001 FRONT ARM (2) Diagram

STAY A, FR. GUARD

51311-HC5-970

Unavailable

STAY B, FR. GUARD

51312-HC5-970

Unavailable

GUARD, FR.

51315-HC5-970

Unavailable

ARM ASSY., R. FR. (LOWER)

51350-HM5-850

Unavailable

JOINT A, ARM BALL This part replaces 51355-HM5-A81.

51355-HP5-601

$17.30

JOINT A, ARM BALL

51355-HP5-601

$17.30

ARM ASSY., L. FR. (LOWER)

51360-HM5-850

Unavailable

ARM ASSY., R. (UPPER)

51370-HM5-A80

$343.71

ARM ASSY., L. (UPPER)

51380-HM5-A80

$343.71

BOLT, FENDER STAY

90001-HC5-600

Unavailable

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.86

NUT, CASTLE (12MM)

90310-HB9-000

$5.78

PIN, SPLIT (3.0X18)

94201-30180

$0.96

CIRCLIP (OUTER) (32MM)

94514-32000

$0.93

BOLT, FLANGE (10X62)

90151-HC5-000

$7.40

BOLT, FLANGE (10X62) This part replaces 95801-10065-00.

90151-HC5-000

$7.40
