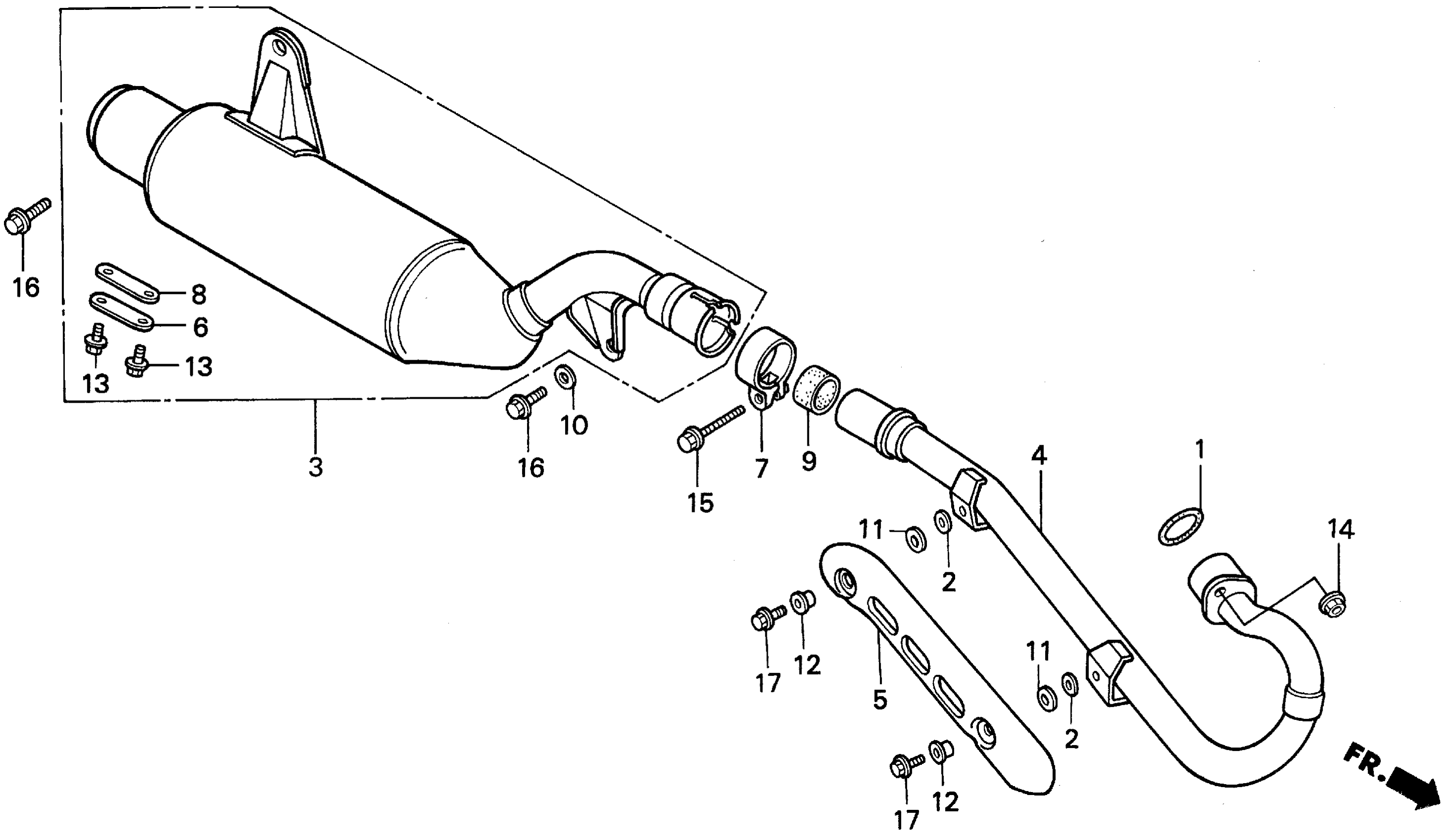

Honda TRX300EXA (99) FOURTRAX 300EX, JPN, VIN# JH2TE190-XK400001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MV9-000

$4.41

2

GASKET, PROTECTOR | Use up to Frame SN XK404324

18293-MCA-780

$4.51

2

GASKET, PROTECTOR | Use up to Frame SN XK404324 This part replaces 18293-MN5-650.

18293-MCA-780

$4.51

2

GASKET, PROTECTOR | Use from Frame SN XK404325

18292-KBR-000

$3.21

3

MUFFLER

18310-HM3-000

Unavailable

4

PIPE, EX.

18320-HM3-000

$136.52

5

PROTECTOR, EX. PIPE

18321-HC0-000

$41.75

6

LID, MUFFLER

18373-429-010

$8.22

7

BAND, L. EX. PIPE

18374-MB6-003

Unavailable

8

GASKET, MUFFLER LID

18374-MN1-880

$3.90

9

GASKET, MUFFLER

18391-MN5-650

$18.51

10

WASHER, PLAIN (10MM)

90401-437-000

$2.55

11

WASHER (6MM)

90485-286-000

$1.48

12

COLLAR, RR. COVER

90554-GC3-000

$2.29

13

BOLT-WASHER (6X12)

93401-06012-07

Unavailable

13

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

Unavailable

13

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

Unavailable

14

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

15

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

16

BOLT, FLANGE (10X16)

95701-10016-00

$1.16

17

BOLT, FLANGE (6X14)

96001-06014-02

$1.35
