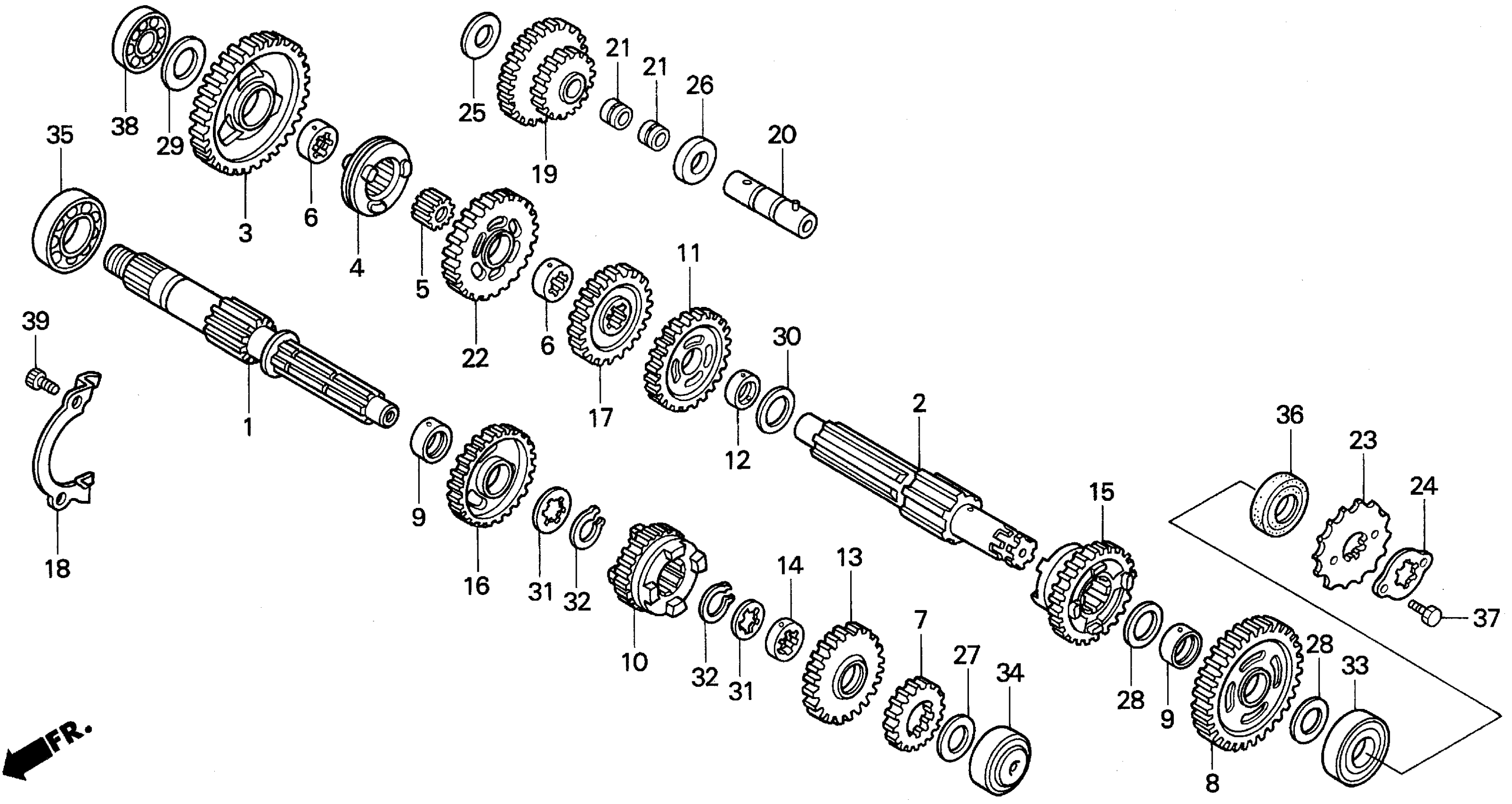

Honda TRX300EXA (98) FOURTRAX 300EX, JPN, VIN# JH2TE190-WK300001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23210-HM3-670

Unavailable

2

COUNTERSHAFT

23220-HM3-670

$158.58

3

GEAR, COUNTERSHAFT LOW (48T)

23411-HM3-670

$131.09

4

SHIFTER, REVERSE COUNTERSHAFT LOW GEAR

23412-HC0-000

$65.90

5

COLLAR, SPLINE

23413-HC0-000

Unavailable

6

BUSH, COUNTERSHAFT LOW GEAR & REVERSE GEAR

23414-HC0-000

$26.57

7

GEAR, MAINSHAFT SECOND (17T)

23421-HM3-670

$52.57

8

GEAR, COUNTERSHAFT SECOND (43T)

23431-HM3-670

$124.65

9

BUSH (22X25X10)

23432-HM3-670

$11.75

10

GEAR, MAINSHAFT THIRD (21T)

23441-HM3-670

$81.20

11

GEAR, COUNTERSHAFT THIRD (39T)

23451-HM3-670

$99.46

12

BUSH, COUNTERSHAFT THIRD

23452-HC0-000

$18.96

13

GEAR, MAINSHAFT FOURTH (24T)

23461-HM3-670

$79.96

14

BUSH, SPLINE (22X25X9.5)

23462-HM3-670

$11.67

15

GEAR, COUNTERSHAFT FOURTH (35T)

23471-HM3-670

$139.90

16

GEAR, MAINSHAFT FIFTH (28T)

23481-HM3-670

$101.41

17

GEAR, COUNTERSHAFT FIFTH (33T)

23491-HM3-670

$84.72

18

PLATE, BEARING SETTING

23521-HA0-000

$13.52

19

GEAR, REVERSE IDLE (15T/33T)

23720-HM3-670

$137.32

20

SHAFT, REVERSE IDLE

23730-HC4-000

Unavailable

21

BUSH, REVERSE IDLE GEAR

23732-HA0-000

Unavailable

22

GEAR, COUNTERSHAFT REVERSE (32T)

23751-HM3-670

$119.74

23

SPROCKET, DRIVE (13T)

23801-HB5-000

Unavailable

24

PLATE, FIXING

23811-HA5-670

$4.63

25

WASHER, THRUST (14MM)

90402-HM3-670

$7.17

26

WASHER, PLAIN (14MM)

90412-HA0-000

$8.51

27

WASHER, SPECIAL (17MM)

90451-KAE-010

$4.30

28

WASHER, THRUST (22MM)

90452-357-000

Unavailable

29

WASHER, THRUST (20X30X1.5)

90453-KZ4-000

$3.74

30

WASHER, THRUST (25MM)

90456-MA6-000

$2.42

31

WASHER, SPLINE (22MM)

90464-444-000

$5.00

32

CIRCLIP (22MM)

90601-329-000

$2.43

33

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$21.88

33

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$21.88

33

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$21.88

34

BEARING, RADIAL BALL (6203)

91004-HC0-003

$30.83

35

BEARING, RADIAL BALL (62/22) This part replaces 91005-KF0-008.

91005-KS4-003

$36.31

35

BEARING, RADIAL BALL (62/22)

91005-KS4-003

$36.31

36

OIL SEAL (22X36X6)

91206-HB3-003

$7.75

37

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

38

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98

39

BOLT, SOCKET (6X16)

96600-06016-10

$3.59
