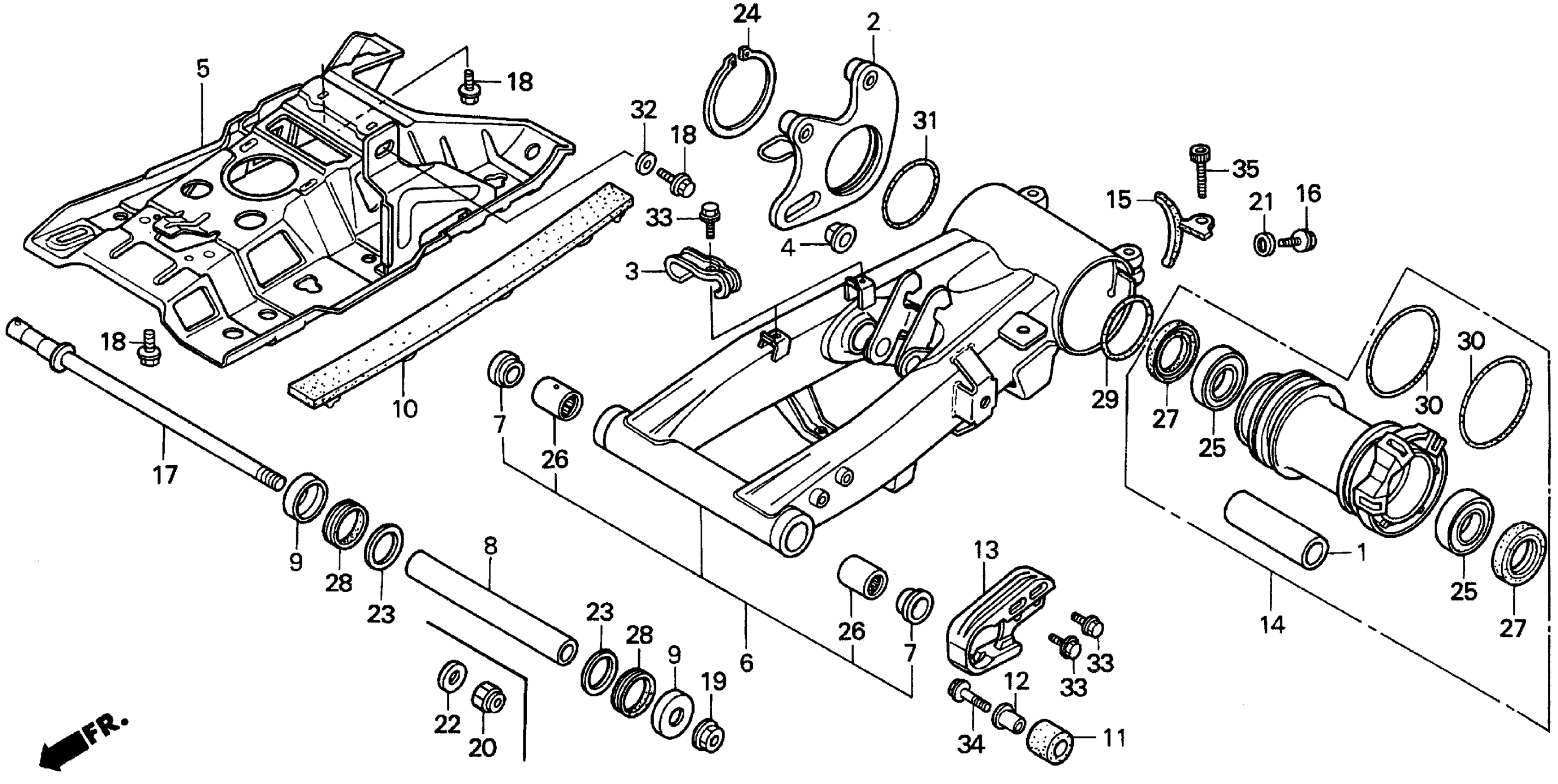

Honda TRX300EXA (97) FOURTRAX 300EX, JPN, VIN# JH2TE190-VK200001 SWINGARM Diagram

COLLAR, RR. AXLE

42621-HA5-000

$40.52

STAY, RR. CALIPER

43211-HC0-000

$148.38

CLAMP, BRAKE HOSE

43311-965-000

$7.61

BUSH, RR. BRAKE STAY

43483-HB5-670

$8.83

PLATE, SKID

50355-HC0-670

Unavailable

SWINGARM ASSY.

52100-HC0-680

Unavailable

BUSH, PIVOT THRUST

52109-KA4-701

$16.01

COLLAR, SWINGARM CENTER

52141-HC0-000

Unavailable

CAP, SWINGARM DUST SEAL

52144-HA5-000

$12.95

SLIDER, SKID PLATE

52156-HC0-000

$43.90

ROLLER, CHAIN

52158-HC0-000

$11.84

COLLAR, CHAIN ROLLER

52159-467-000

$11.56

SLIDER, CHAIN

52170-HB5-010

$52.44

HOLDER ASSY., BEARING

52200-HM3-000

$396.10

SEAL, BEARING HOLDER

52202-HB5-000

$12.95

BOLT, STOPPER (8MM)

90115-964-003

$3.67

BOLT, SWINGARM PIVOT

90121-HC0-670

$122.36

BOLT, FLANGE (8X12)

90190-MG3-000

$3.58

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER (8MM)

90481-035-000

$1.87

WASHER, PLAIN (32MM)

90551-HA5-000

$6.52

CIRCLIP (OUTER) (70)

90665-964-000

$13.19

BEARING (40X62X12) (KOYO)

91051-HA2-013

$35.80

BEARING, SWINGARM PIVOT (NTN)

91071-MA0-003

$33.10

DUST SEAL (52X62X7) (ARAI)

91252-HA2-003

$16.85

DUST SEAL

91253-KA4-701

$12.86

DUST SEAL This part replaces 91253-KA4-702.

91253-KA4-701

$12.86

O-RING, ROTARY CASE

91351-737-752

$5.53

O-RING, BEARING HOLDER (ARAI)

91353-HA2-003

$6.82

O-RING (69X2)

91302-MS2-003

$4.13

O-RING (69X2) This part replaces 91355-HA2-671.

91302-MS2-003

$4.13

WASHER, PLAIN (8MM)

94103-08700

$1.49

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

BOLT, SOCKET (8X32)

96700-08032-00

$1.79
