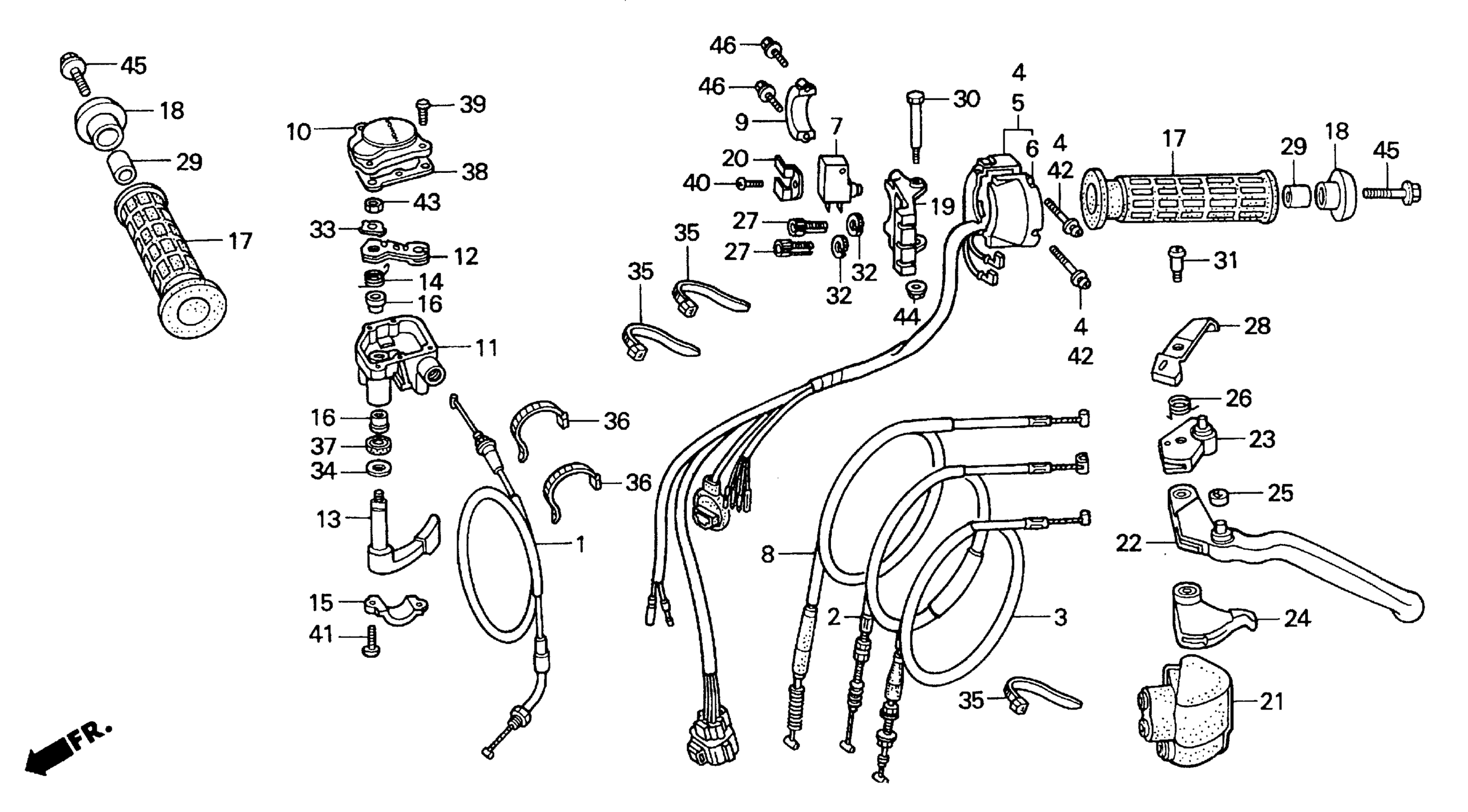

Honda TRX300EXA (97) FOURTRAX 300EX, JPN, VIN# JH2TE190-VK200001 HANDLE SWITCH + CABLES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-HC0-670

$45.03

2

CABLE, CLUTCH

22870-HM3-000

Unavailable

3

CABLE, REVERSE ASSIST

22880-HM3-000

Unavailable

5

SWITCH ASSY., LIGHTING & ENGINE STARTER (NOT AVAILABLE)

35200-HM3-000

Unavailable

6

COVER, SWITCH

35201-HB7-671

$13.47

7

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$18.57

7

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$18.57

8

CABLE, PARKING BRAKE

43455-HC0-671

Unavailable

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

COVER, THROTTLE CASE

53141-HC3-000

Unavailable

11

CASE, THROTTLE LEVER

53142-HC0-770

$41.34

12

ARM, THROTTLE

53144-HA0-010

$7.72

13

LEVER, THROTTLE This part replaces 53145-HA0-305.

53145-HA0-770

$24.05

13

LEVER, THROTTLE

53145-HA0-770

$24.05

14

SPRING, THROTTLE RETURN

53146-HA0-000

$4.53

15

HOLDER, THROTTLE CASE

53147-HC3-000

$9.20

16

BUSH, THROTTLE PIVOT

53148-HA0-000

$8.00

17

GRIP, HANDLE

53165-958-010

$13.38

18

GUARD, HANDLE END

53167-958-680

$6.40

19

BRACKET, L. HANDLE LEVER

53172-HM3-000

Unavailable

20

PLATE, CLUTCH SWITCH This part replaces 53173-HM3-000.

53173-HM3-A00

$6.38

20

PLATE, CLUTCH SWITCH

53173-HM3-A00

$6.38

21

COVER, L. HANDLE LEVER

53177-HM3-000

$10.62

22

LEVER, L. HANDLEBAR

53178-HM3-000

Unavailable

23

ARM ASSY., PARKING

53180-HM3-000

$41.39

24

ARM, REVERSE ASSIST

53182-HC0-000

Unavailable

25

CAP, REVERSE PIN

53187-VM6-000

$3.89

26

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

27

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

28

LEVER, PARKING BRAKE LOCK

53192-965-000

$21.58

29

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

30

BOLT, HANDLE LEVER PIVOT

90113-HC0-000

Unavailable

31

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

32

NUT, FIXING

90321-315-670

$7.31

33

WASHER, LOCK (6MM)

90501-HA0-000

$2.92

34

WASHER (9X20)

90504-HA0-000

$2.28

35

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

37

DUST SEAL (9X16X5) (NOK) This part replaces 91210-HA0-003.

91210-HA0-004

$3.92

37

DUST SEAL (9X16X5) (NOK)

91210-HA0-004

$3.92

38

GASKET, THROTTLE CASE

91532-HA0-020

$6.16

39

SCREW, PAN (4X16)

93500-04016-0G

$1.49

40

SCREW, PAN (5X10)

93500-05010-0A

$1.49

41

SCREW, PAN (5X14)

93500-05014-0G

$3.67

42

SCREW-WASHER (5X25)

93892-05025-07

$1.49

42

SCREW-WASHER (5X25) This part replaces 93892-05025-17.

93892-05025-07

$1.49

43

NUT, HEX. (6MM)

94002-06000-0S

$1.49

44

NUT, FLANGE (6MM)

94050-06000

$1.49

45

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

46

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
