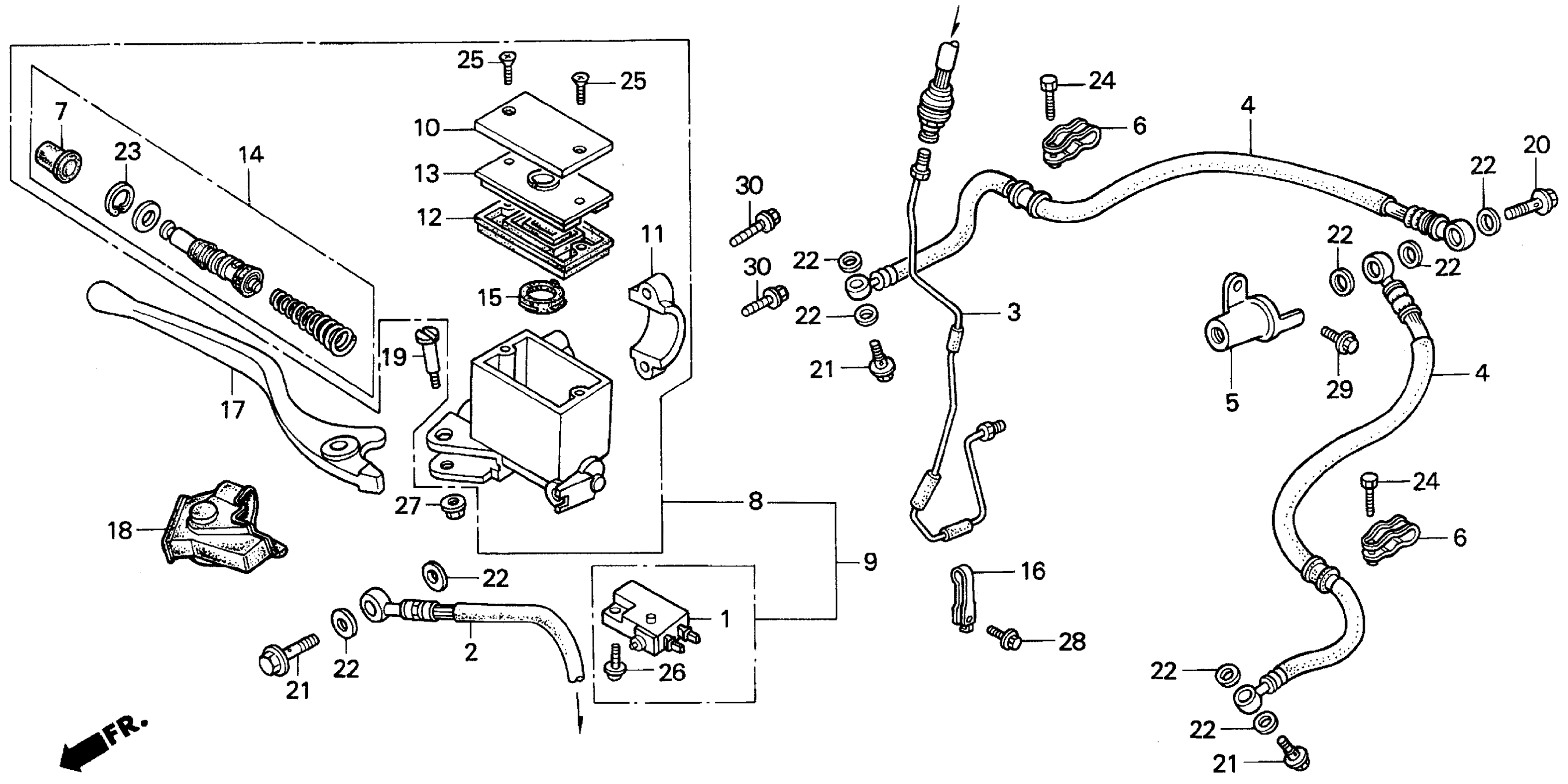

Honda TRX300EXA (97) FOURTRAX 300EX, JPN, VIN# JH2TE190-VK200001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

2

HOSE ASSY., FR. BRAKE (UPPER)

45126-HC0-671

Unavailable

3

PIPE, FR. BRAKE

45127-HC0-000

Unavailable

4

HOSE ASSY., FR. BRAKE

45128-HC0-671

Unavailable

5

JOINT (TWO-WAY) (NISSIN)

45129-HC0-016

Unavailable

6

CLAMP, FR. BRAKE MIDDLE

45464-HB9-000

Unavailable

7

BOOT

45504-410-003

$10.93

8

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-HM3-305

Unavailable

10

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

10

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

11

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

12

DIAPHRAGM

45520-MG7-006

$9.52

13

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

14

MASTER CYLINDER SET This part replaces 45530-KJ1-701.

45530-KJ1-702

$46.43

14

MASTER CYLINDER SET

45530-KJ1-702

$46.43

15

SEPARATOR

46666-HB9-006

$8.42

16

CLAMP B, FR. BRAKE HOSE (NOT AVAILABLE)

51203-HA7-670

Unavailable

17

LEVER, R. HANDLEBAR

53175-HM3-000

$22.48

18

COVER, R. HANDLE LEVER

53176-HC0-671

$7.67

19

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

20

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$6.62

20

BOLT, OIL (10X34)

90145-MR8-014

$6.62

21

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

22

WASHER, OIL BOLT

90545-300-000

$3.72

23

CIRCLIP

90651-MA5-671

$2.38

24

BOLT, HEX. (5X16)

92101-05016-0A

$0.68

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

27

NUT, FLANGE (6MM)

94050-06000

$0.59

28

BOLT, FLANGE (6X10)

95701-06010-00

$1.14

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
