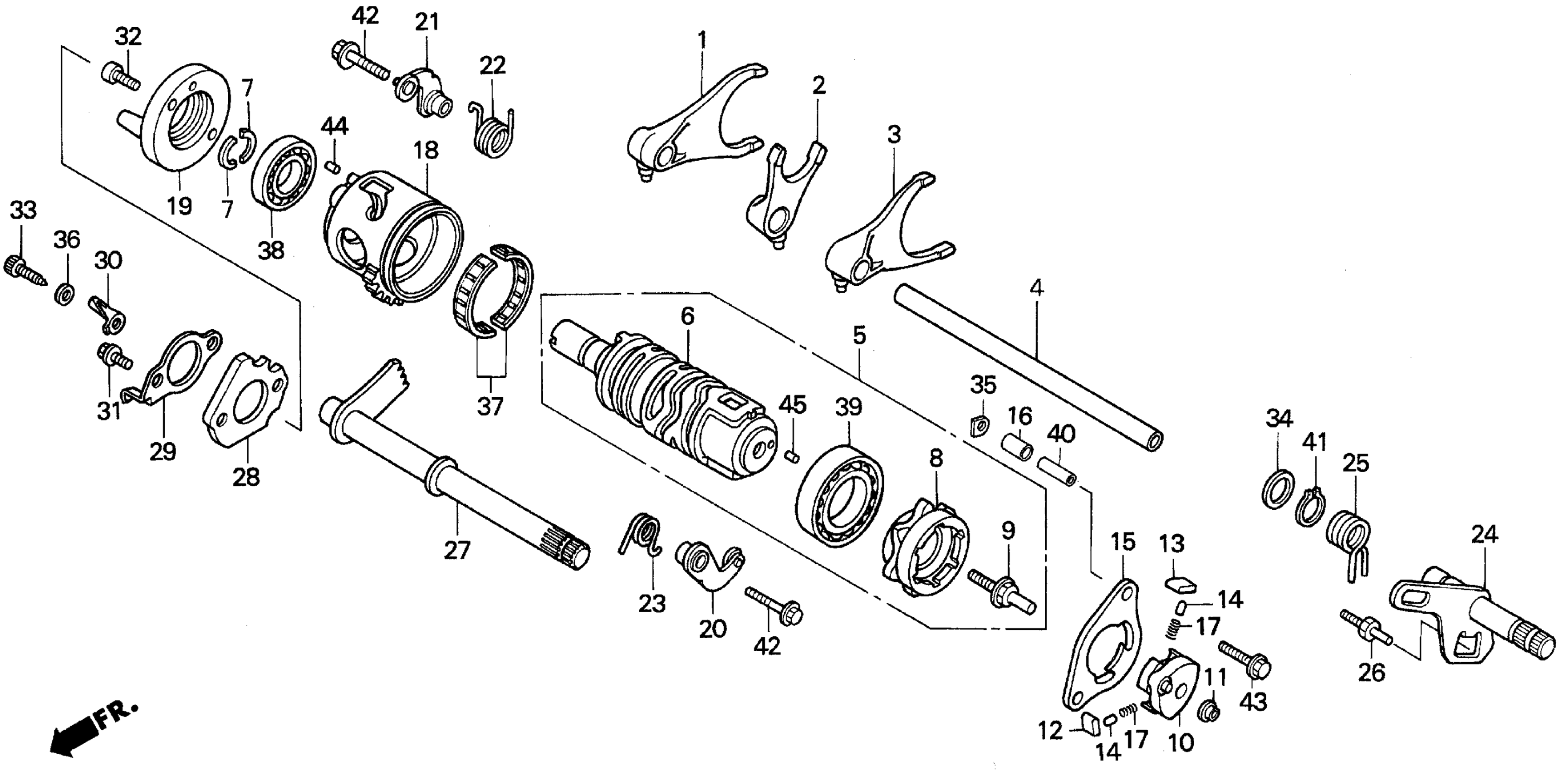

Honda TRX300EXA (96) FOURTRAX 300EX, JPN, VIN# JH2TE190-TK100001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HM3-670

Unavailable

2

FORK, CENTER GEARSHIFT

24212-HC0-000

Unavailable

3

FORK, L. GEARSHIFT

24213-HC0-010

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-HM3-670

$35.30

5

DRUM ASSY., GEARSHIFT

24300-HM3-671

Unavailable

6

DRUM, GEARSHIFT

24301-HM3-671

$155.33

7

RING, BEARING SETTING SEPARATE

24302-HC0-000

$6.41

8

CENTER, SHIFT DRUM

24312-HC0-010

$42.52

9

PIN, SHIFTER

24315-HA0-000

$12.60

10

SHIFTER, DRUM

24321-HC0-000

$57.10

11

COLLAR, SHIFTER

24322-HA0-000

$5.49

12

PAWL A, RATCHET

24324-KA3-711

$13.21

13

PAWL B, RATCHET

24325-KA3-711

$13.21

14

PLUNGER, PAWL

24326-KBH-901

$5.81

15

PLATE, GUIDE

24328-HA5-010

Unavailable

16

COLLAR, GUIDE PLATE DISTANCE

24329-HA0-000

$5.81

17

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

18

DRUM, REVERSE GEARSHIFT

24351-HC0-010

$86.74

19

HOLDER, REVERSE DRUM BEARING

24361-HC0-000

$49.21

20

STOPPER, GEARSHIFT DRUM

24430-HA0-000

Unavailable

21

STOPPER, REVERSE SHIFT

24430-HC0-000

Unavailable

22

SPRING, REVERSE SHIFT DRUM STOPPER

24435-HC0-000

Unavailable

23

SPRING, SHIFT DRUM STOPPER

24436-HM3-670

Unavailable

24

ARM, GEARSHIFT

24610-HC0-000

Unavailable

25

SPRING, SHIFT RETURN

24651-HC0-003

$9.02

26

PIN, RETURN SPRING

24652-KY4-900

$7.99

27

SPINDLE, REVERSE SHIFT

24665-HM3-670

Unavailable

28

CAM, REVERSE STOPPER

24666-HC0-000

$23.69

29

ROTOR, REVERSE SWITCH This part replaces 24667-HM3-670.

24667-HM3-671

$9.16

29

ROTOR, REVERSE SWITCH

24667-HM3-671

$9.16

30

ROTOR, NEUTRAL SWITCH

24668-HM3-670

Unavailable

31

BOLT, FLANGE KNOCK (6X16.5)

90001-HC0-000

$3.17

32

BOLT, SOCKET (6X14)

90002-HC0-000

$3.48

33

BOLT, SOCKET (6X16)

90036-KY4-900

Unavailable

34

WASHER, THRUST (13MM)

90401-HA5-000

$4.22

35

PLATE, BEARING HOLDER

90441-HA0-000

Unavailable

36

WASHER, THRUST

90444-ZA8-000

$1.49

37

BEARING, SPECIAL NEEDLE (37X43X13)

91008-HC0-003

Unavailable

38

BEARING, RADIAL BALL (6902) (NTN)

91008-KV0-003

$32.41

39

BEARING (16005) (KOYO)

91051-719-003

$28.92

40

PIN, DOWEL (8X26.5)

91104-HA0-000

$4.74

41

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

42

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

43

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

44

ROLLER (3X8.5)

96220-30085

$1.49

45

ROLLER (4X8)

96220-40080

$1.49
