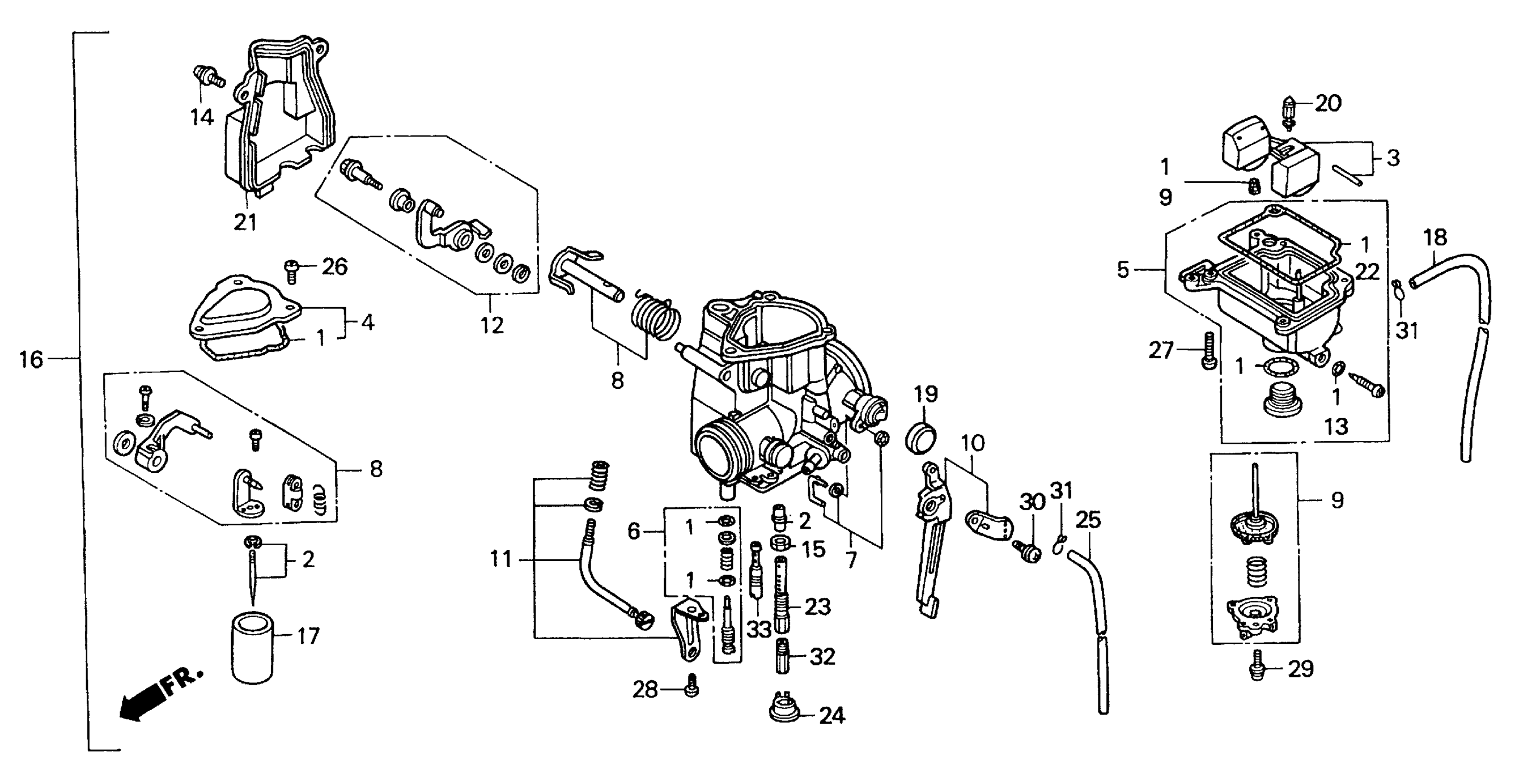

Honda TRX300EXA (95) FOURTRAX 300EX, JPN, VIN# JH2TE190-ST200001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-HC0-003.

16010-HM3-A61

$27.92

1

GASKET SET

16010-HM3-A61

$27.92

1

GASKET SET This part replaces 16010-HM3-L00.

16010-HM3-A61

$27.92

2

NEEDLE SET, JET This part replaces 16012-HM3-670.

16012-HM3-L00

$56.79

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

3

FLOAT SET

16013-KR3-980

$55.27

4

TOP SET This part replaces 16014-HA0-003.

16014-HM3-L00

Unavailable

4

TOP SET

16014-HM3-L00

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-HC0-003.

16015-HM3-A61

Unavailable

5

CHAMBER SET, FLOAT

16015-HM3-A61

Unavailable

5

CHAMBER SET, FLOAT This part replaces 16015-HM3-L00.

16015-HM3-A61

Unavailable

6

SCREW SET This part replaces 16016-HA0-682.

16016-HM3-L00

Unavailable

6

SCREW SET This part replaces 16016-HC4-003.

16016-HM3-L00

Unavailable

6

SCREW SET

16016-HM3-L00

Unavailable

7

ROD SET, CHOKE This part replaces 16017-HC0-003.

16017-HM3-L00

Unavailable

7

ROD SET, CHOKE

16017-HM3-L00

Unavailable

8

ARM SET, LINK This part replaces 16018-HC0-670.

16018-HM3-L00

Unavailable

8

ARM SET, LINK

16018-HM3-L00

Unavailable

9

DIAPHRAGM SET, PUMP This part replaces 16021-HC0-003.

16021-HM3-L00

$88.02

9

DIAPHRAGM SET, PUMP

16021-HM3-L00

$88.02

10

LEVER SET, CHOKE This part replaces 16025-HM3-670.

16025-HM3-L00

$31.72

10

LEVER SET, CHOKE

16025-HM3-L00

$31.72

11

SCREW SET This part replaces 16028-HM3-670.

16028-HM3-L00

$15.72

11

SCREW SET

16028-HM3-L00

$15.72

12

ARM SET, PUMP This part replaces 16031-HC0-003.

16031-HM3-L00

$82.33

14

SCREW-WASHER

16080-HC0-003

$4.15

15

NUT, HEX.

16096-HC0-003

$4.15

16

CARBURETOR ASSY. (QB02B B) This part replaces 16100-HM3-670.

16100-HM3-L01

Unavailable

16

CARBURETOR ASSY. (QB02B B) This part replaces 16100-HM3-671.

16100-HM3-L01

Unavailable

16

CARBURETOR ASSY. (QB02B B)

16100-HM3-L01

Unavailable

17

VALVE, THROTTLE

16111-HC0-003

Unavailable

18

TUBE This part replaces 16144-MA1-671.

16199-MN5-405

$11.86

18

TUBE, OVERFLOW

16199-MN5-405

$11.86

19

CAP, CHOKE DUST

16148-141-881

$4.75

20

VALVE, FLOAT

16155-397-971

$41.45

21

COVER, BODY

16160-HC0-003

Unavailable

23

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-HC0-003

Unavailable

24

HOLDER, JET This part replaces 16168-HC4-004.

16168-HC4-003

$12.24

24

HOLDER, JET

16168-HC4-003

$12.24

25

TUBE, FUEL This part replaces 16199-GJ3-601.

16199-KG4-405

$9.49

25

PIPE, OVERFLOW

16199-KG4-405

$9.49

26

SCREW, PAN (4X8)

93500-04008-0H

$1.49

26

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

27

SCREW, PAN (4X14)

93500-04014-0H

$1.49

27

SCREW, PAN (4X14) This part replaces 93500-04014-1H.

93500-04014-0H

$1.49

28

SCREW, PAN (6X10)

93500-06010-0H

$1.49

28

SCREW, PAN (6X10) This part replaces 93500-06010-1H.

93500-06010-0H

$1.49

29

SCREW-WASHER (4X12)

93892-04012-08

$1.49

29

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

30

SCREW-WASHER (5X10)

93892-05010-18

$1.49

31

CLIP, TUBE (B7)

95002-02079

$1.49

32

JET, MAIN (#120) | (Optional).

99101-357-1200

$19.84

32

JET, MAIN (#122)

99101-357-1220

$17.99

33

JET, SLOW (#38)

99103-420-0380

$10.80
