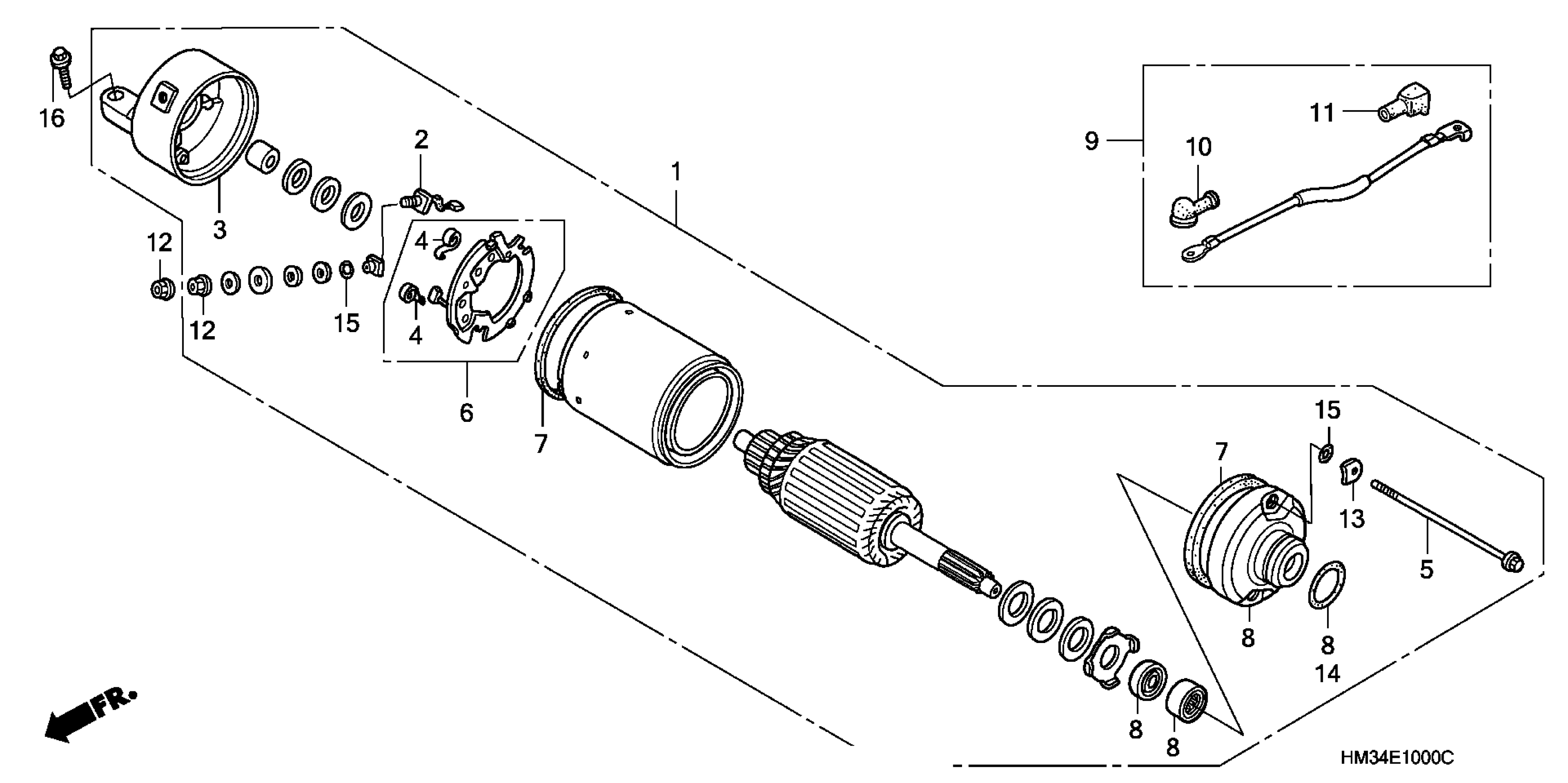

Honda TRX300EXA (93) FOURTRAX 300EX, JPN, VIN# JH3TE190-PT000005 STARTER Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-HM3-671

$422.83

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

3

BRACKET, RR. (NOT AVAILABLE)

31203-HM3-671

Unavailable

4

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

5

BOLT, SETTING

31205-MN4-008

$5.29

6

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31206-KW1-901

$23.71

7

RING

31207-KS5-901

$2.90

8

BRACKET, FR.

31210-HM7-003

$74.52

9

CABLE, STARTER MOTOR

32402-HM3-670

Unavailable

10

COVER, STARTER MOTOR TERMINAL

32411-230-000

$5.96

10

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$5.96

11

COVER B, STARTER MAGNETIC

32416-KAF-000

$4.61

12

NUT-WASHER (6MM)

90071-MB0-000

$1.88

13

WASHER, STEEL PLATE

90122-MN4-008

$2.80

14

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

14

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

15

O-RING (4X2)

91320-MB0-000

$2.20

16

BOLT, FLANGE (6X25) | Use up to Engine SN 2014411

95701-06025-00

$1.64

16

BOLT, FLANGE (6X25) | Use from Engine SN 2014412

95801-06025-00

$0.99
