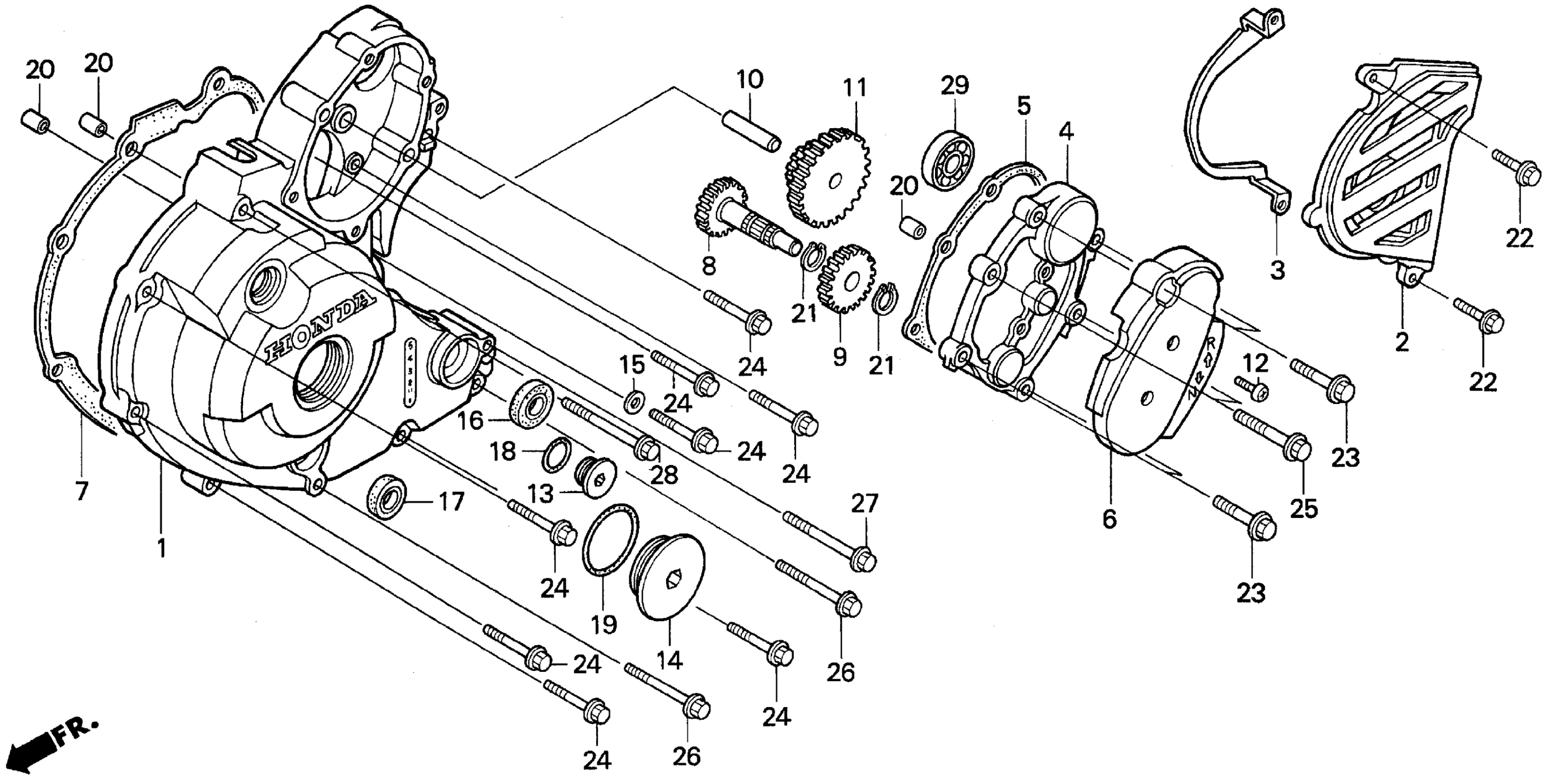

Honda TRX300EXA (93) FOURTRAX 300EX, JPN, VIN# JH3TE190-PT000005 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-HM3-670

Unavailable

2

COVER, L. RR. CRANKCASE

11351-HM3-670

Unavailable

3

GUIDE, DRIVE CHAIN

11352-HM3-670

Unavailable

4

COVER, STARTING GEAR

11355-HM3-670

$88.52

5

GASKET, STARTING GEAR COVER

11356-HM3-670

$7.13

6

PROTECTOR, STARTING GEAR COVER

11357-HM3-670

Unavailable

7

GASKET, L. CRANKCASE COVER

11395-HM3-670

$22.95

8

SHAFT, STARTER REDUCTION (21T)

28130-HM3-670

Unavailable

9

GEAR C, STARTER REDUCTION (23T)

28131-HM3-670

Unavailable

10

SHAFT, REDUCTION GEAR

28132-KK3-830

Unavailable

11

GEAR, STARTER REDUCTION (68T/26T)

28140-HM3-670

Unavailable

12

SCREW, TAPPING (4X12)

90017-HA0-000

$2.36

13

CAP (14MM)

90084-KY2-000

$14.34

14

CAP (30MM)

90087-HB5-000

$14.98

15

WASHER (11MM)

90425-300-000

$2.42

16

OIL SEAL (13X28X7) (NOK)

91201-HA0-004

Unavailable

16

OIL SEAL (13X28X7) (KOYO) This part replaces 91201-HA0-003.

91203-HC4-005

$5.99

16

OIL SEAL (13X28X7) (KOYO)

91203-HC4-005

$5.99

17

OIL SEAL (12X24X5) (NOK) This part replaces 91203-436-003.

91203-436-004

$5.73

17

OIL SEAL (12X24X5) (NOK)

91203-436-004

$5.73

18

O-RING (13.8X2.5)

91303-377-000

$3.18

19

O-RING (27X2) (ARAI)

91305-KF0-003

$2.80

20

PIN, DOWEL (8X14)

94301-08140

$2.04

21

CIRCLIP (OUTER) (15MM)

94510-15000

$1.04

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

23

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

24

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

25

BOLT, FLANGE (6X32)

96001-06032-00

$1.28

26

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

27

BOLT, FLANGE (6X45)

96001-06045-00

$1.78

28

BOLT, FLANGE (6X55)

96001-06055-00

$1.48

29

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56
