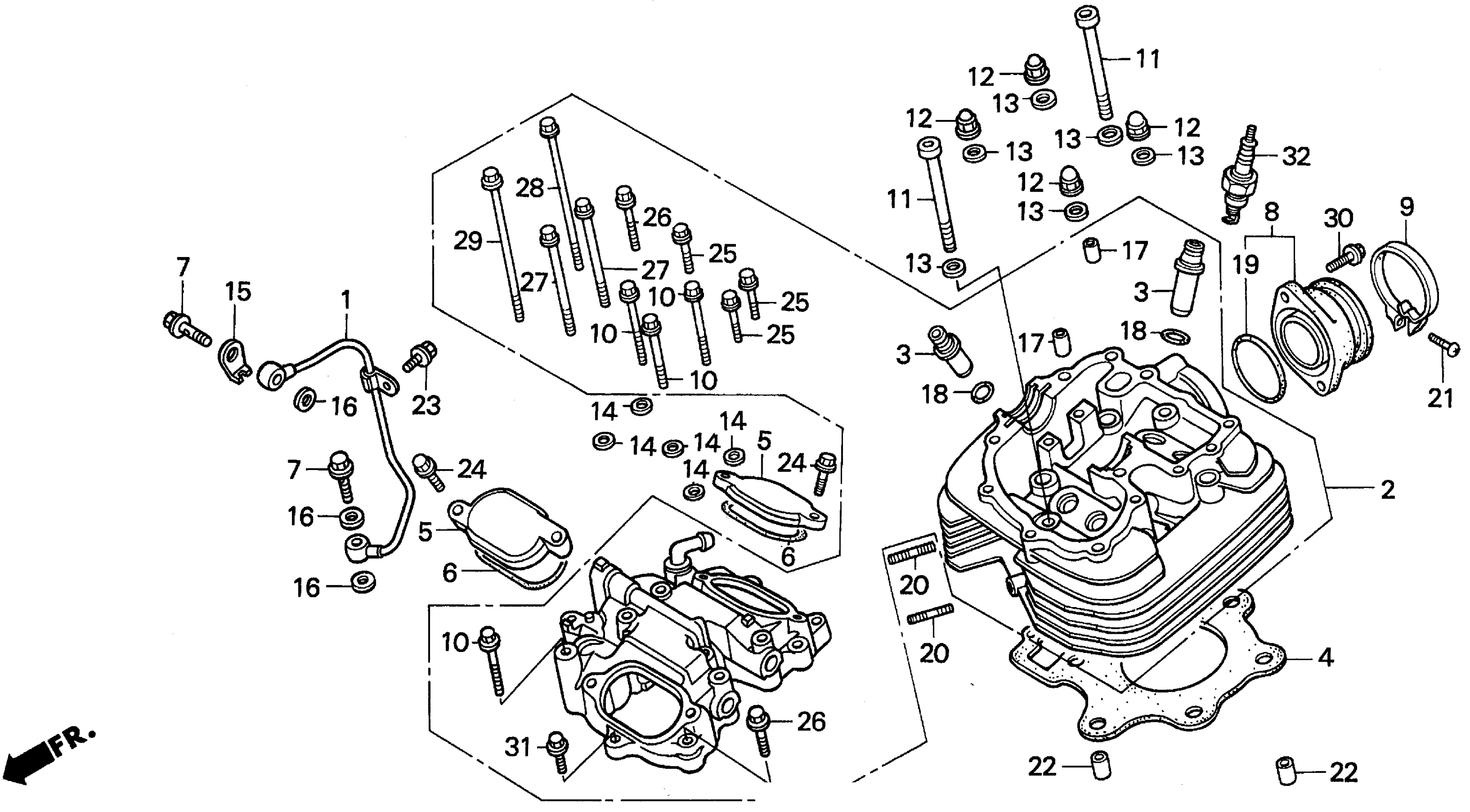

Honda TRX300EXA (93) FOURTRAX 300EX, JPN, VIN# JH3TE190-PT000005 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE

11335-HC0-000

Unavailable

2

CYLINDER HEAD ASSY. This part replaces 12000-HM3-670.

12000-HM3-671

Unavailable

2

CYLINDER HEAD ASSY.

12000-HM3-671

Unavailable

3

GUIDE, VALVE (O.S)

12233-HA5-305

$19.92

4

GASKET, CYLINDER HEAD (NIPPON LEAKLESS) | Use up to Engine SN 2002372 This part replaces 12251-HC0-003.

12251-HC0-013

$35.06

4

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-HC0-013

$35.06

4

GASKET, CYLINDER HEAD (O.S) | (Optional).

12252-HC0-305

$35.57

5

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$37.87

6

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.92

7

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$10.35

8

INSULATOR, CARBURETOR (KOYO)

16211-HC0-003

$46.70

9

BAND, INSULATOR

16219-422-000

$12.72

10

BOLT, FLANGE (6X52)

90009-HA0-000

$4.24

11

BOLT, SOCKET (10X110)

90064-HC0-000

$12.69

12

NUT, CAP (10MM)

90201-HA0-000

$6.45

12

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$6.45

13

WASHER (10MM)

90410-HC4-000

$3.81

14

WASHER, SEALING (6MM)

90441-706-000

$1.49

15

WASHER, LOCK (8MM)

90443-HC0-003

$8.80

16

WASHER C (8MM)

90475-703-000

$1.49

17

PIN, DOWEL (8X12)

90701-HC4-000

$2.92

18

O-RING (10X1.6)

91301-200-000

$3.01

19

O-RING (35.4X2.9)

91305-HA5-000

$9.55

20

BOLT, STUD (8X25)

92900-08025-0B

$2.20

21

SCREW, PAN (5X20)

93500-05020-0G

$1.49

22

PIN, DOWEL (12X20)

94301-12200

$2.29

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

24

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

25

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

26

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

27

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

28

BOLT, FLANGE (6X115)

95701-06115-00

$3.09

29

BOLT, FLANGE (6X140) | Use up to Engine SN 2013291

95701-06140-00

$2.92

29

BOLT, FLANGE (6X135) | Use from Engine SN 2013292

90001-HM3-670

$6.58

30

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

31

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

32

SPARK PLUG

98069-38719

$2.62

32

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.44

32

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.44

32

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.50

32

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

32

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.54
