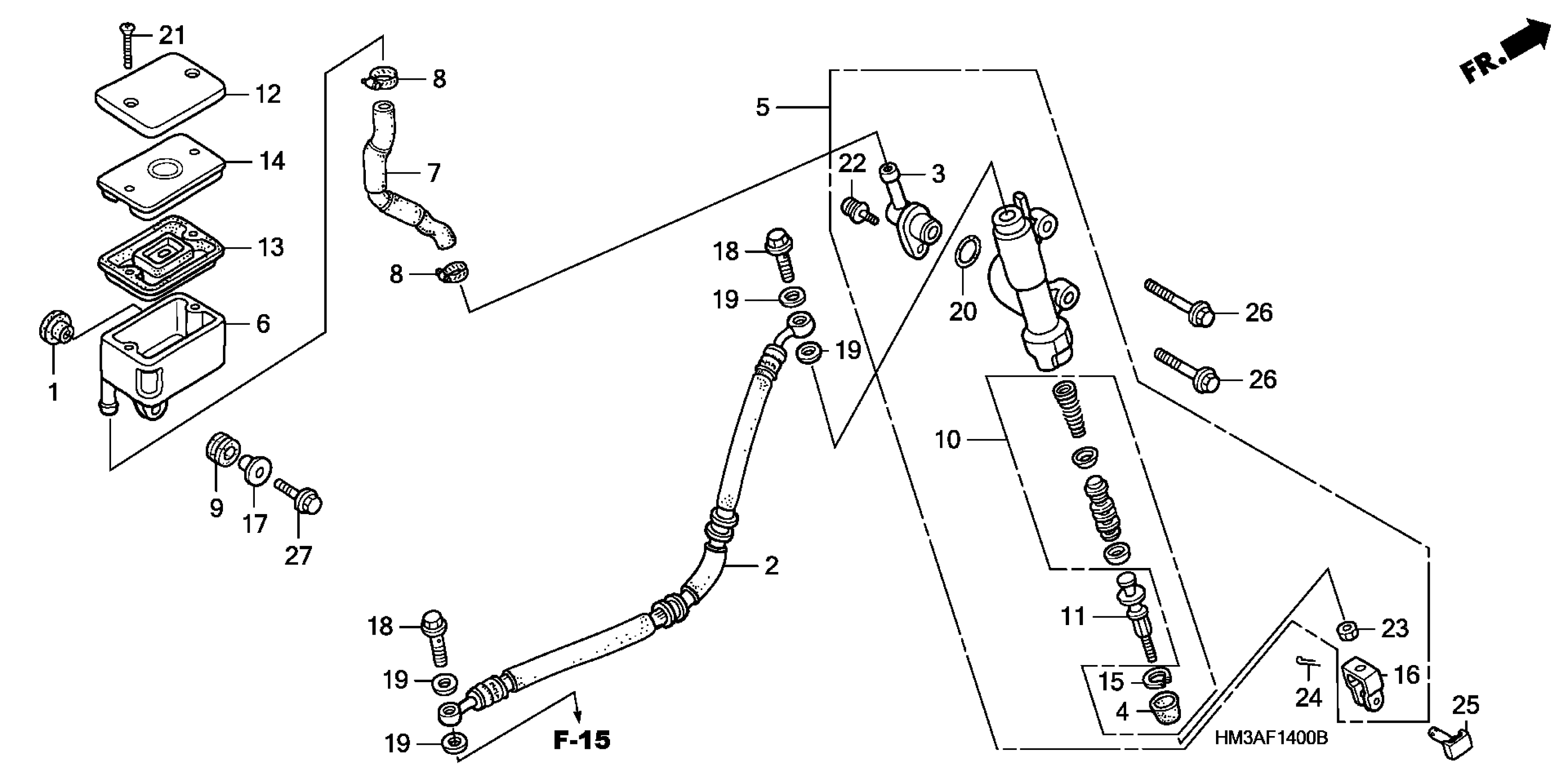

Honda TRX300EXA (08) SPORTRAX 300EX, JPN, VIN# JH2TE190-8K300001 TO JH2TE190-8K399999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

RUBBER, TAILLIGHT SETTING

33718-GE2-690

$4.29

2

HOSE ASSY., RR. BRAKE

43310-HM3-A61

Unavailable

3

CONNECTOR

43503-MJ0-006

Unavailable

4

BOOT

43504-MB2-006

$9.01

5

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-HM3-A62

$140.16

6

CUP, OIL

43511-HA2-016

$33.38

7

HOSE, MASTER CYLINDER OIL

43512-HM3-A61

$25.57

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-964-006

Unavailable

9

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.16

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

11

ROD, PUSH (NISSIN)

43530-HC0-006

$21.10

12

CAP, MASTER CYLINDER

45513-GW3-851

$19.33

13

DIAPHRAGM

45520-MG7-006

$9.52

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

15

CIRCLIP

46182-MEL-D21

$1.77

16

JOINT, BRAKE ROD

46504-MT8-006

$8.25

17

COLLAR (6.3X13)

50324-425-010

$4.51

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

WASHER, OIL BOLT

90545-300-000

$3.72

20

O-RING (14.8X2.4)

91212-422-006

Unavailable

21

SCREW, FLAT (4X30)

93600-04030-1A

$0.46

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

24

PIN, SPLIT (2.0X22)

94201-20220

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

24

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

24

PIN, SPLIT (2.0X35)

94201-20350

$0.94

24

PIN, COTTER (2.0X22)

94201-29220

$0.94

25

PIN D, JOINT

95015-54000

$3.95

26

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

27

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
