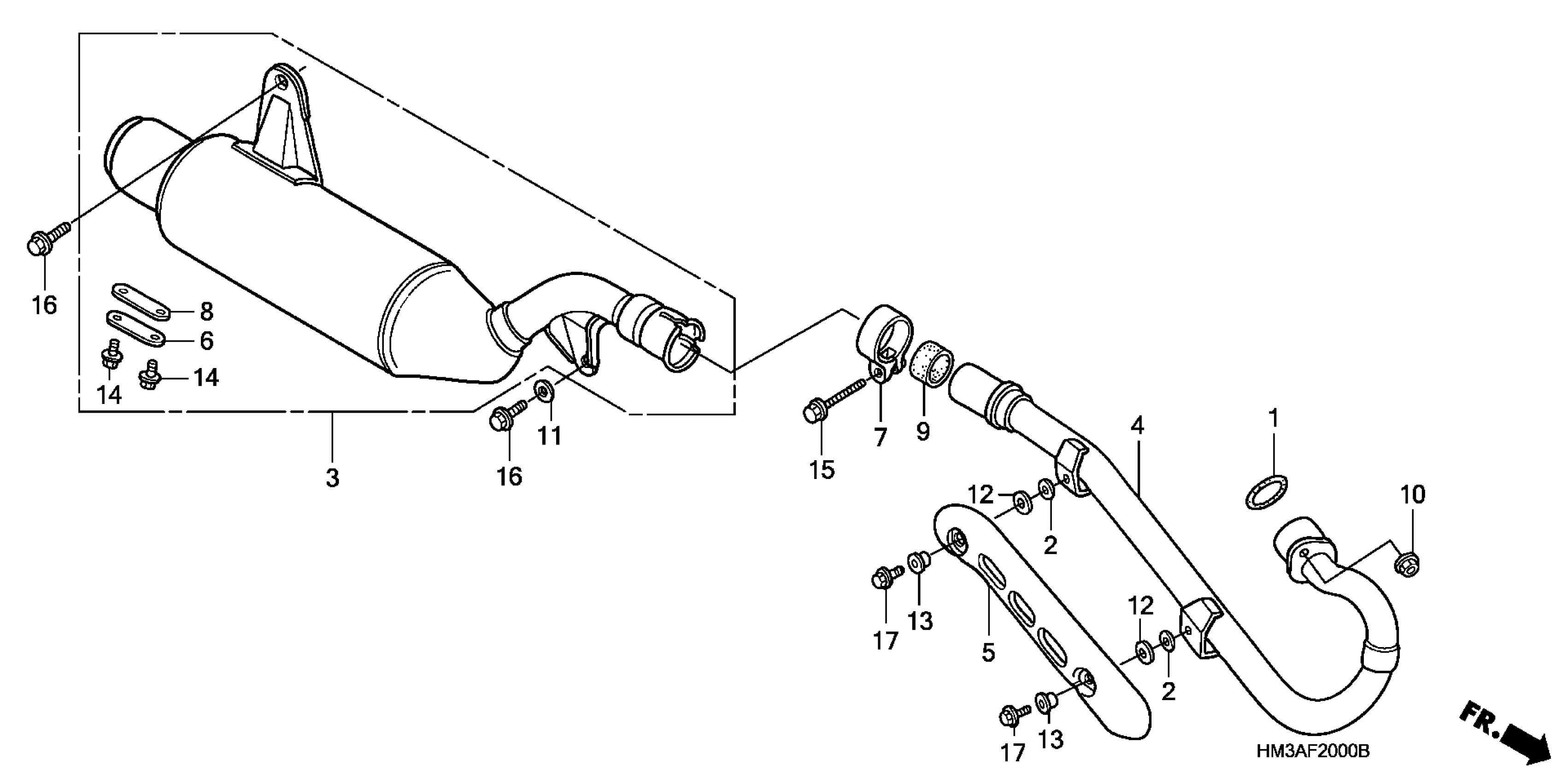

Honda TRX300EXA (08) SPORTRAX 300EX, JPN, VIN# JH2TE190-8K300001 TO JH2TE190-8K399999 MUFFLER Diagram

Description

Price

GASKET, EX. PIPE

18291-MV9-000

$4.72

GASKET, PROTECTOR

18292-KBR-000

$3.45

MUFFLER

18310-HM3-000

$595.33

PIPE, EX.

18320-HM3-000

$149.92

PROTECTOR, EX. PIPE

18321-HC0-000

$46.51

LID, MUFFLER

18373-429-010

$9.15

BAND, L. EX. PIPE

18374-ML0-000

$28.48

GASKET, MUFFLER LID

18374-MN1-880

$4.21

GASKET, MUFFLER

18391-MN5-650

$20.61

NUT, FLANGE (8MM)

90301-HM8-000

$2.70

WASHER, PLAIN (10MM)

90401-437-000

$2.67

WASHER (6MM)

90485-286-000

$1.55

COLLAR, RR. COVER

90554-GC3-000

$2.51

BOLT-WASHER (6X12)

93401-06012-07

$1.62

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

BOLT, FLANGE (10X16)

95701-10016-00

$1.49

BOLT, FLANGE (6X14)

96001-06014-02

$1.49
