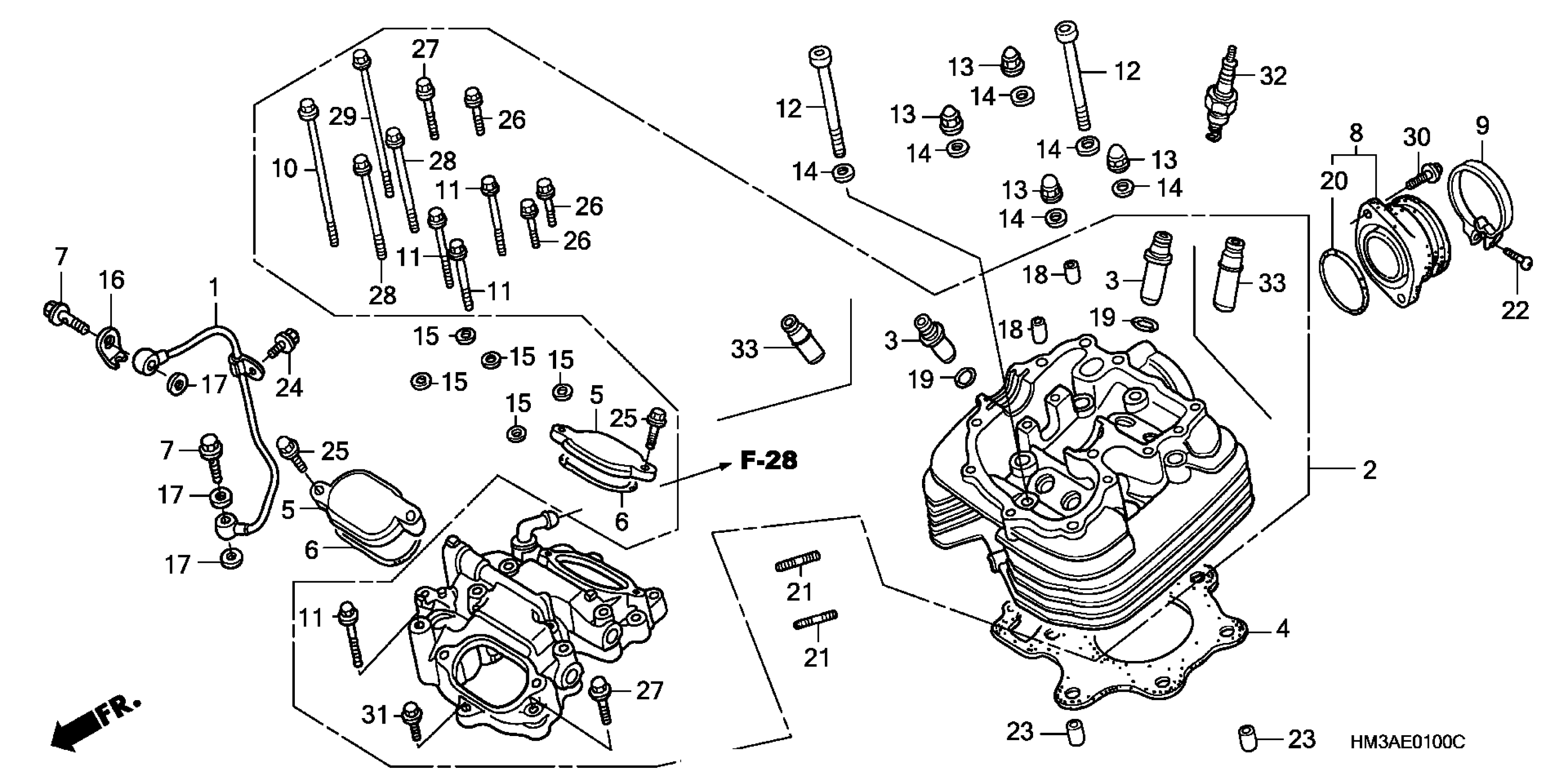

Honda TRX300EXA (08) SPORTRAX 300EX, JPN, VIN# JH2TE190-8K300001 TO JH2TE190-8K399999 CYLINDER HEAD Diagram

#

Description
Price

1

PIPE, OIL PASSAGE

11335-HC0-000

Unavailable

2

CYLINDER HEAD ASSY.

12000-HM3-A60

$772.28

4

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

12251-HC0-013

Unavailable

4

GASKET, CYLINDER HEAD (O.S) | (Optional).

12252-HC0-305

$32.39

5

COVER, TAPPET ADJUSTING HOLE

12351-428-000

$34.49

6

GASKET, TAPPET COVER (KOYO)

12392-HC4-005

$3.66

7

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$9.30

8

INSULATOR, CARBURETOR (KOYO)

16211-HC0-003

$41.94

9

BAND, INSULATOR

16219-422-000

$11.43

10

BOLT, FLANGE (6X135)

90001-HM3-670

$6.13

11

BOLT, FLANGE (6X52)

90009-HA0-000

$3.95

12

BOLT, SOCKET (10X110)

90064-HC0-000

Unavailable

13

NUT, CAP (10MM)

90201-HA0-000

$5.99

13

NUT, CAP (10MM) This part replaces 90202-HA0-000.

90201-HA0-000

$5.99

14

WASHER (10MM)

90410-HC4-000

$3.55

15

WASHER, SEALING (6MM)

90441-706-000

$1.06

16

WASHER, LOCK (8MM)

90443-HC0-003

$8.49

17

WASHER C (8MM)

90475-703-000

Unavailable

18

PIN, DOWEL (8X12)

90701-HC4-000

$2.70

20

O-RING (35.4X2.9)

91305-HA5-000

$8.58

21

BOLT, STUD (8X25)

92900-08025-0B

$2.00

22

SCREW, PAN (5X20)

93500-05020-0G

$0.75

23

PIN, DOWEL (12X20)

94301-12200

$2.25

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

25

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

26

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

27

BOLT, FLANGE (6X35)

95701-06035-00

$1.71

28

BOLT, FLANGE (6X80)

95701-06080-00

$2.30

29

BOLT, FLANGE (6X115)

95701-06115-00

$2.88

30

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

31

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

32

SPARK PLUG

98069-38719

$2.00

32

SPARK PLUG (DR7ES) (NGK) | (Optional).

98069-57719

$2.16

32

SPARK PLUG (X22ESR-U) (DENSO) | (Optional).

98069-57726

$2.16

32

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.32

32

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.25

32

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.25

33

GUIDE ASSY., VALVE (OVER SIZE)

12204-HM3-305

$19.26
